Engine Control System - SFI System

2UZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: Parameters listed in the chart may be different than your readings depending on the type of instrument and other factors.
If any DTCs are displayed during a check mode DTC check, check the trouble area for the DTCs listed in the table below. For details of each DTC, refer to the "Refer to" below.

SFI SYSTEM

P0010 - P0021:

P0022 - P0051:

P0052 - P0111:

P0112 - P0122:

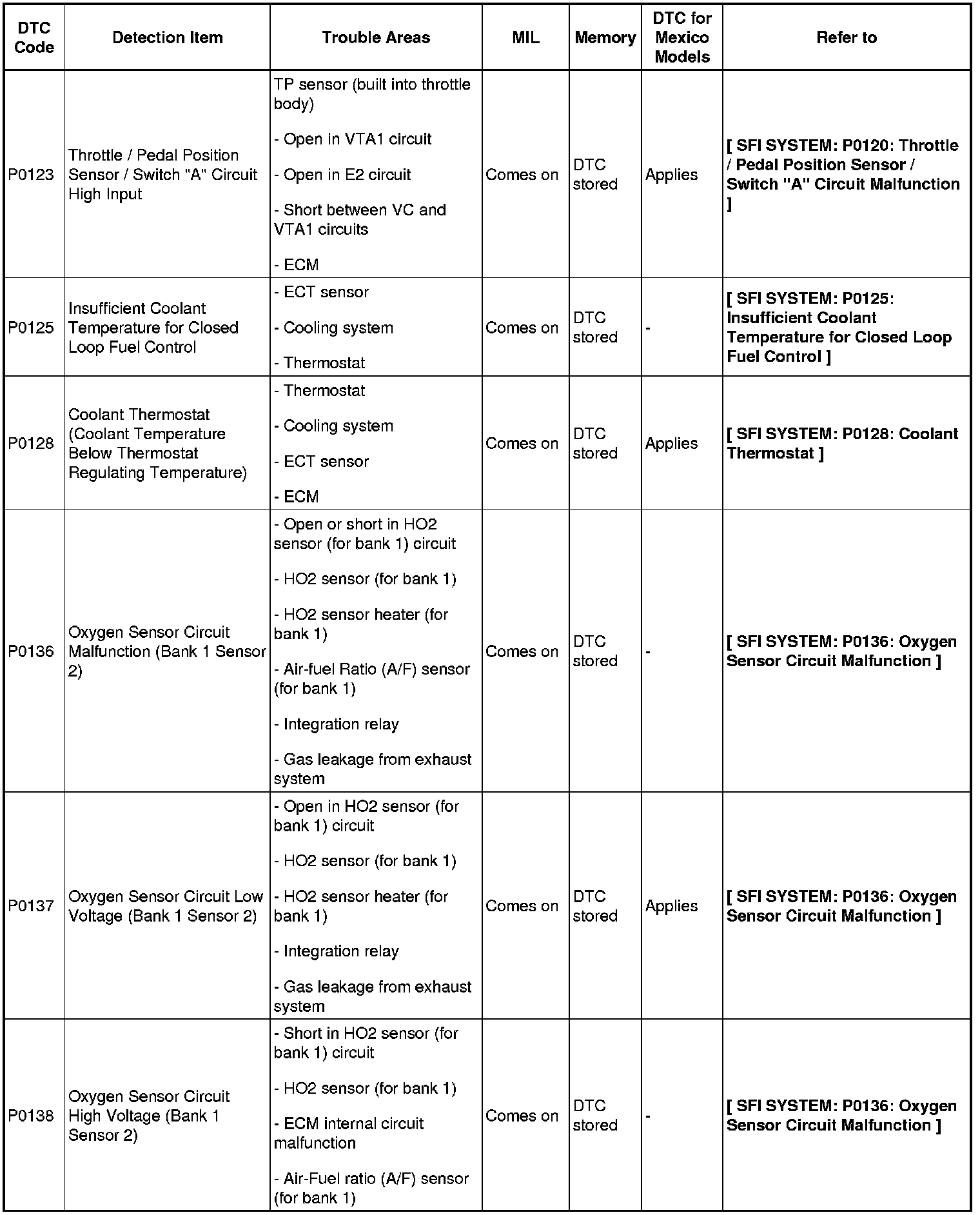

P0123 - P0138:

P0139 - P0159:

P0161 - P0171:

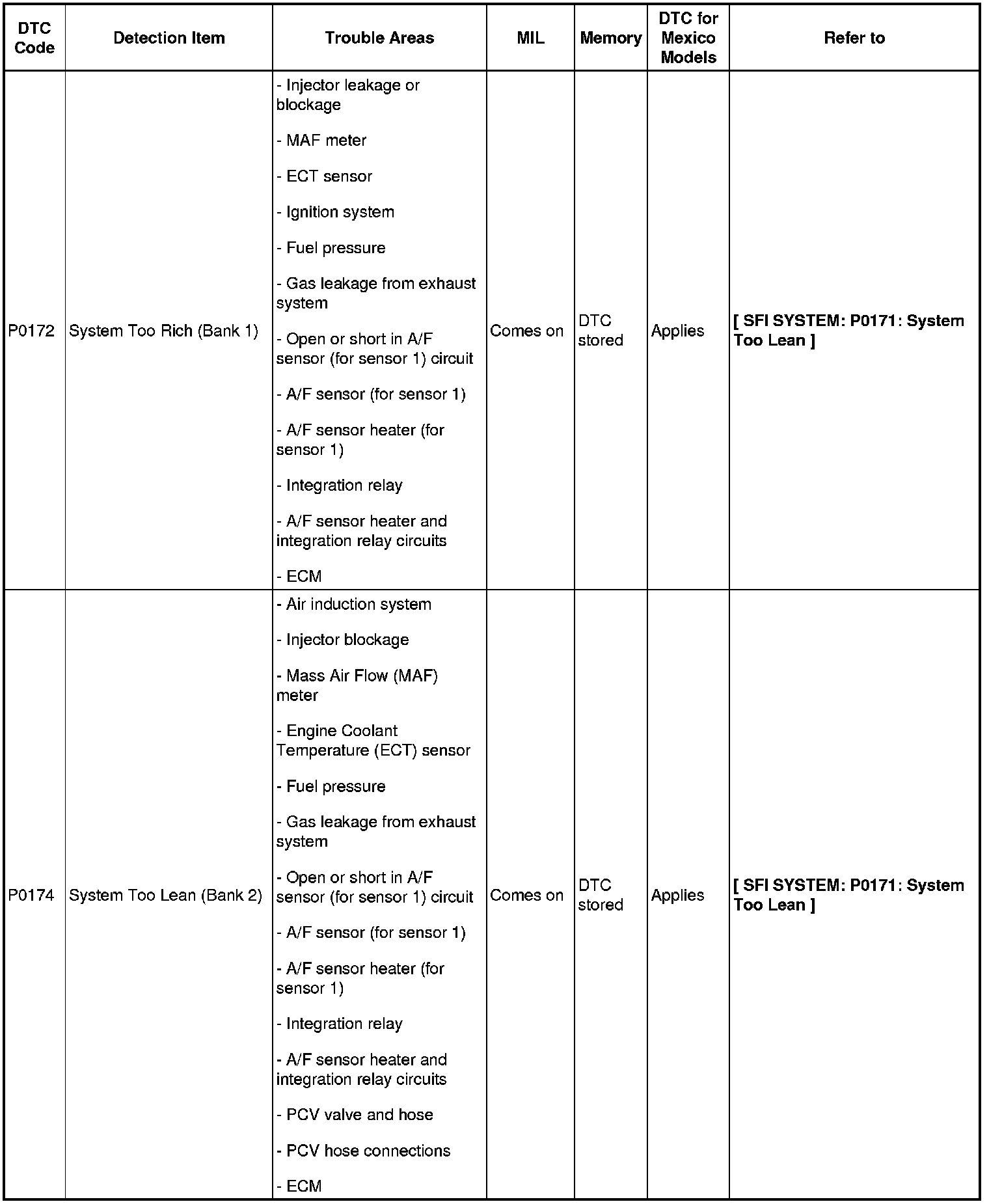

P0172 - P0174:

P0175 - P0230:

P0300:

P0301:

P0302:

P0303:

P0304:

P0305:

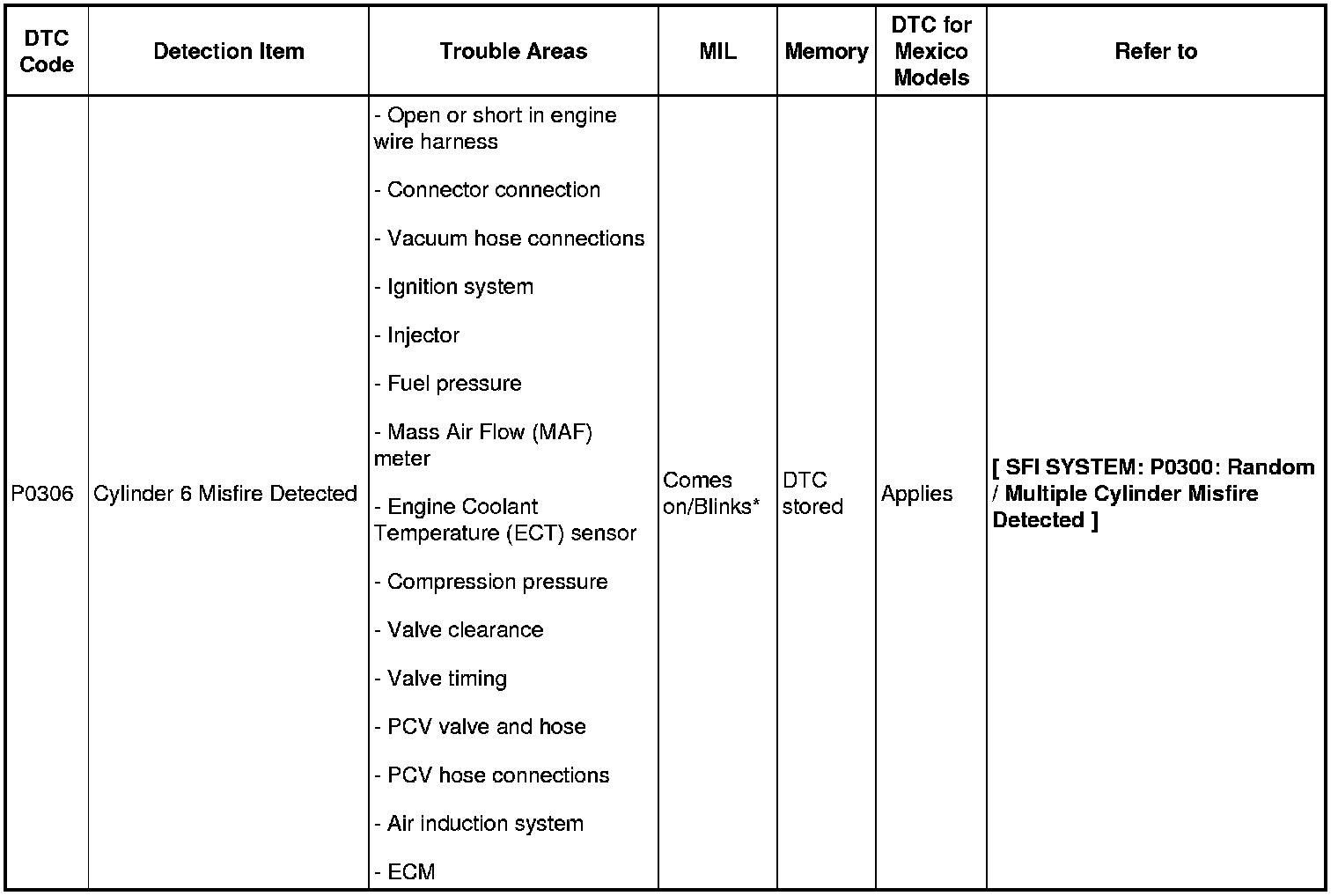

P0306:

P0307:

P0308 - P0333:

P0335 - P0352:

P0353 - P0358:

P0412 - P0420:

P0430 - P0441:

P0451 - P0455:

P0456 - P0550:

P0552 - P0617:

P0630 - P1613:

P1614 - P2120:

P2121 - P2138:

P2195 - P2197:

P2198 - P2239:

P2240 - P2252:

P22543 - P2256:

P2401 - P2431:

P2432 - P2440:

P2441 - P2444:

P2445 - P2A00:

P2A03 / U0101:

HINT: *: The MIL flashes when a catalyst damaged misfire is detected.
