2UZ-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

INSTALLATION

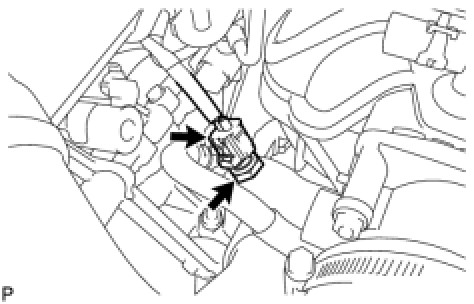

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR





(a) Install a new gasket and the sensor.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
(b) Connect the connector.
2. INSTALL AIR CLEANER HOSE ASSEMBLY Installation
3. ADD ENGINE COOLANT Service and Repair
4. INSPECT FOR ENGINE COOLANT LEAK Testing and Inspection
5. INSTALL THROTTLE BODY COVER SUB-ASSEMBLY Installation
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: Some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
