SERVICE SPECIFICATIONS: 2UZ-FE EXHAUST: TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS

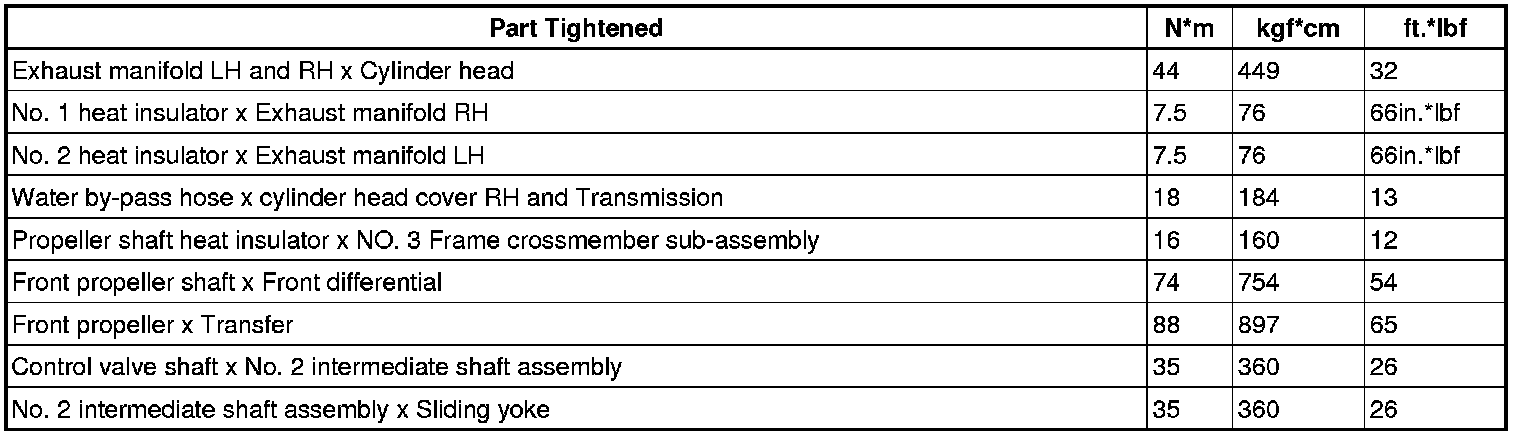

Exhaust manifold
LH and RH

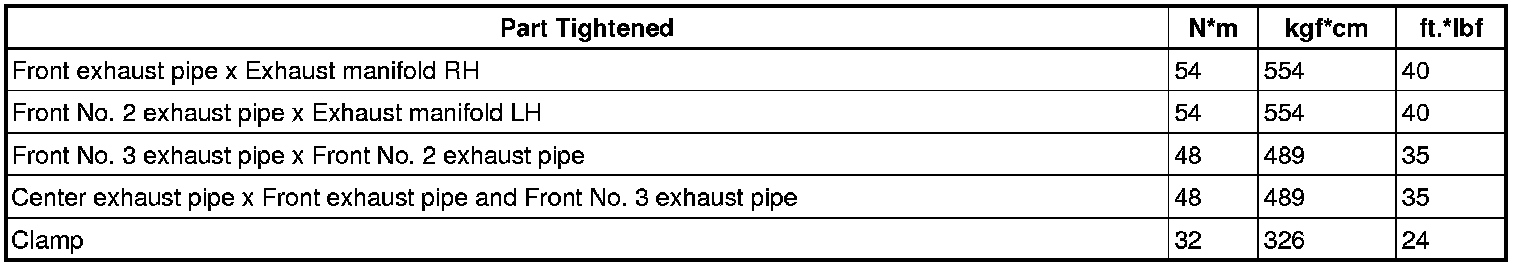

Exhaust pipe
(for Regular Cab Standard Deck)
Exhaust pipe
(except Regular Cab Standard Deck)
