Camshaft

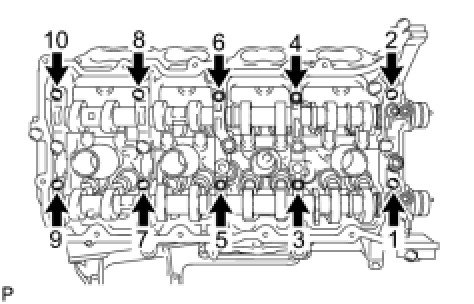

CAMSHAFT BEARING CAP RH





Tighten the 10 bolts in the order shown in the illustration.
Torque 16 Nm (163 kgf-cm, 12 ft-lbf)

CAMSHAFT BEARING CAP LH





Tighten the 10 bolts in the order shown in the illustration.
Torque 16 Nm (163 kgf-cm, 12 ft-lbf)
