System Specifications

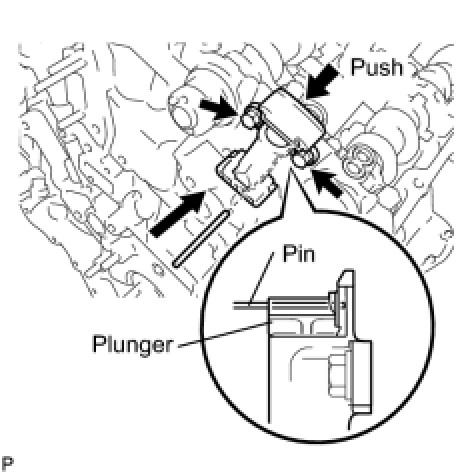

NO. 2 CHAIN TENSIONER ASSEMBLY





Install the chain tensioner with the 2 bolts.
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)

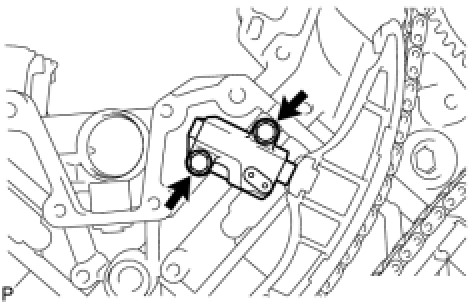

NO. 1 CHAIN TENSIONER ASSEMBLY RH




Install the chain tensioner with the 2 bolts.
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)





INSTALL NO. 3 CHAIN TENSIONER ASSEMBLY
Install the chain tensioner with the 2 bolts.
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)

NO. 1 CHAIN TENSIONER ASSEMBLY LH





Install a new gasket and the chain tensioner with the 2 bolts.
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)

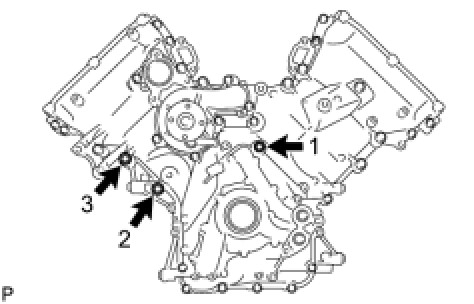

TIMING CHAIN COVER SUB-ASSEMBLY





Tighten the 3 bolts in several steps in the sequence shown in the illustration.
Torque 47 Nm (479 kgf-cm, 35 ft-lbf)

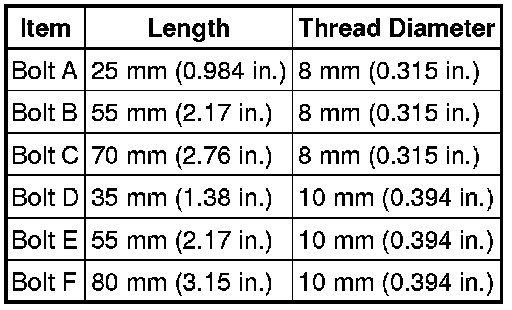

Standard Bolt:






CRANKSHAFT PULLEY

Torque 300 Nm (3059 kgf-cm, 221 ft-lbf)
