Service Data








SERVICE SPECIFICATIONS: JF1A TRANSFER: SERVICE DATA

SERVICE DATA

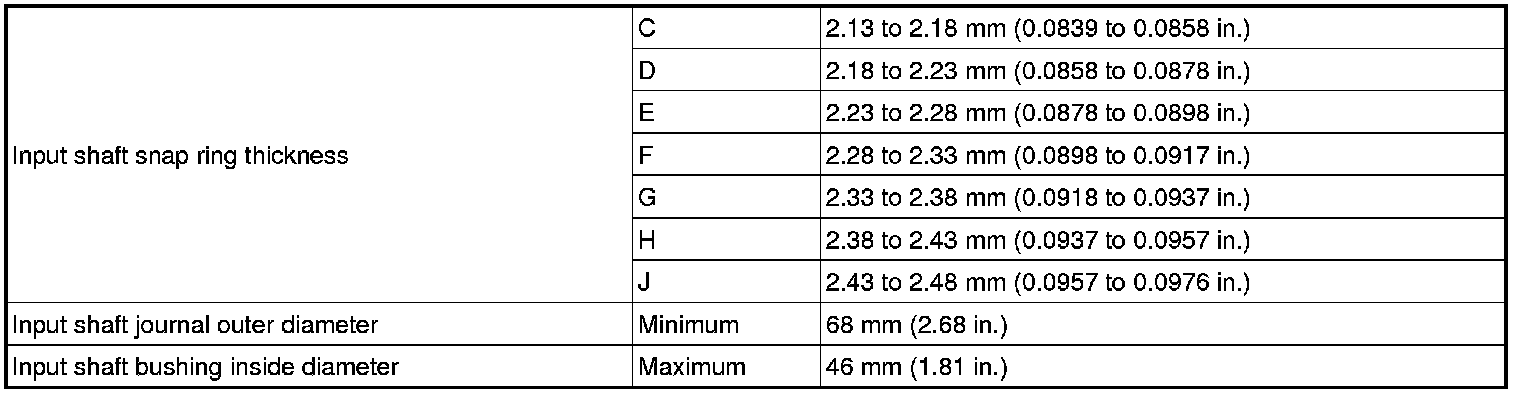

Input shaft

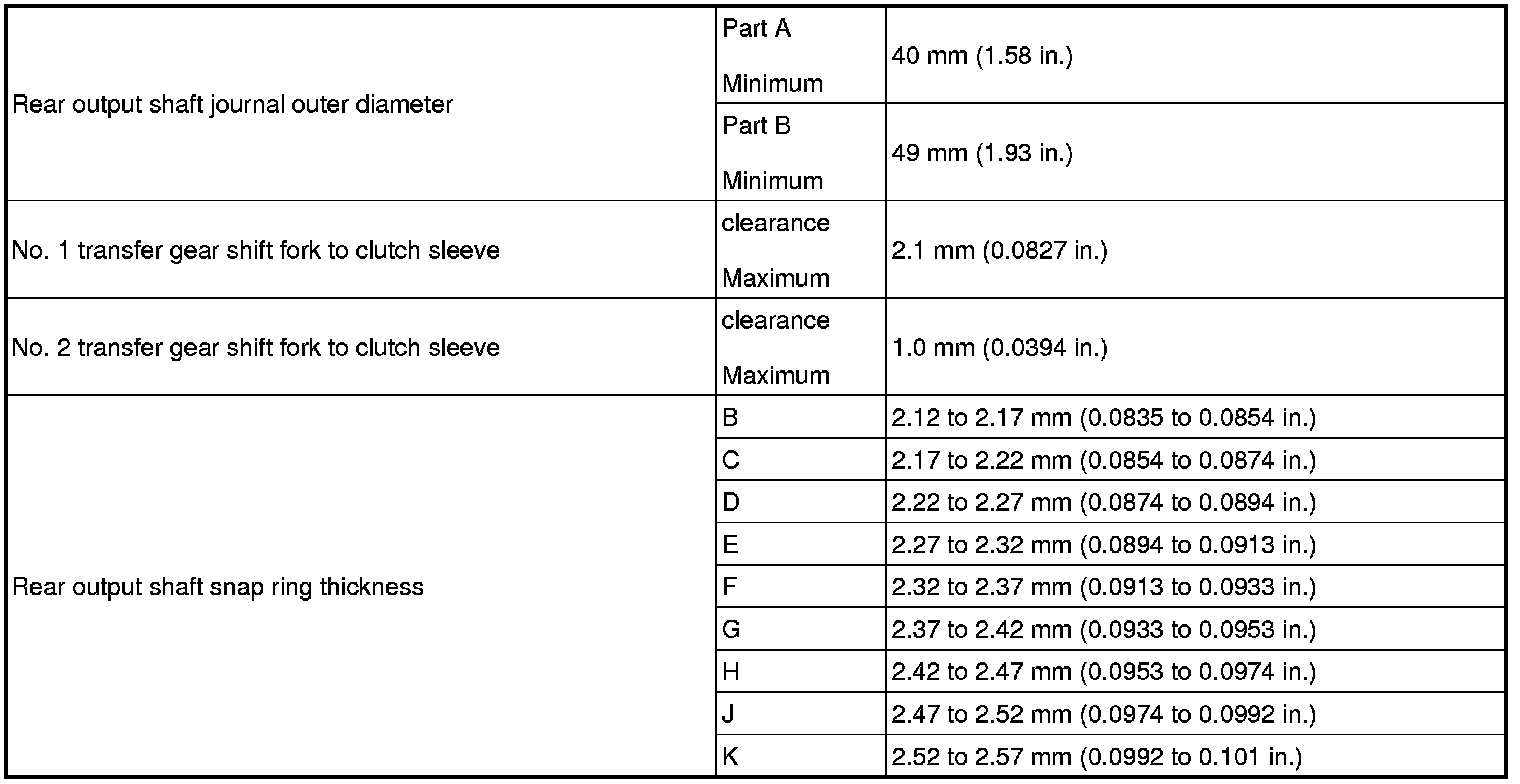

Rear output shaft





Planetary gear





Drive sprocket sub-assembly
