Components
Components

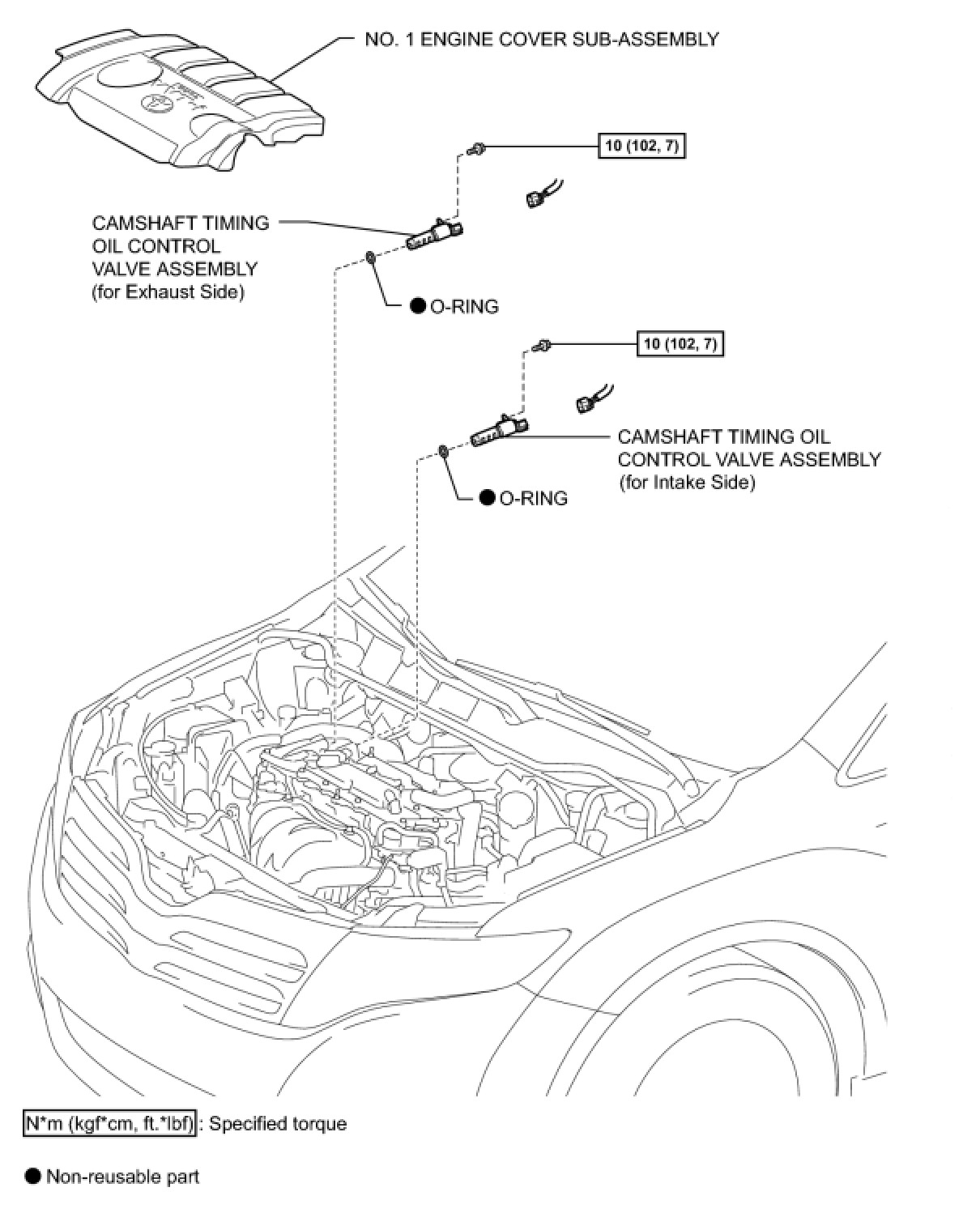

1AR-FE ENGINE CONTROL:
CAMSHAFT
OIL CONTROL VALVE: COMPONENTS
COMPONENTS
ILLUSTRATION
