Automatic Transmission/Transaxle








SERVICE SPECIFICATIONS: U340E AUTOMATIC TRANSAXLE: SERVICE DATA

SERVICE DATA

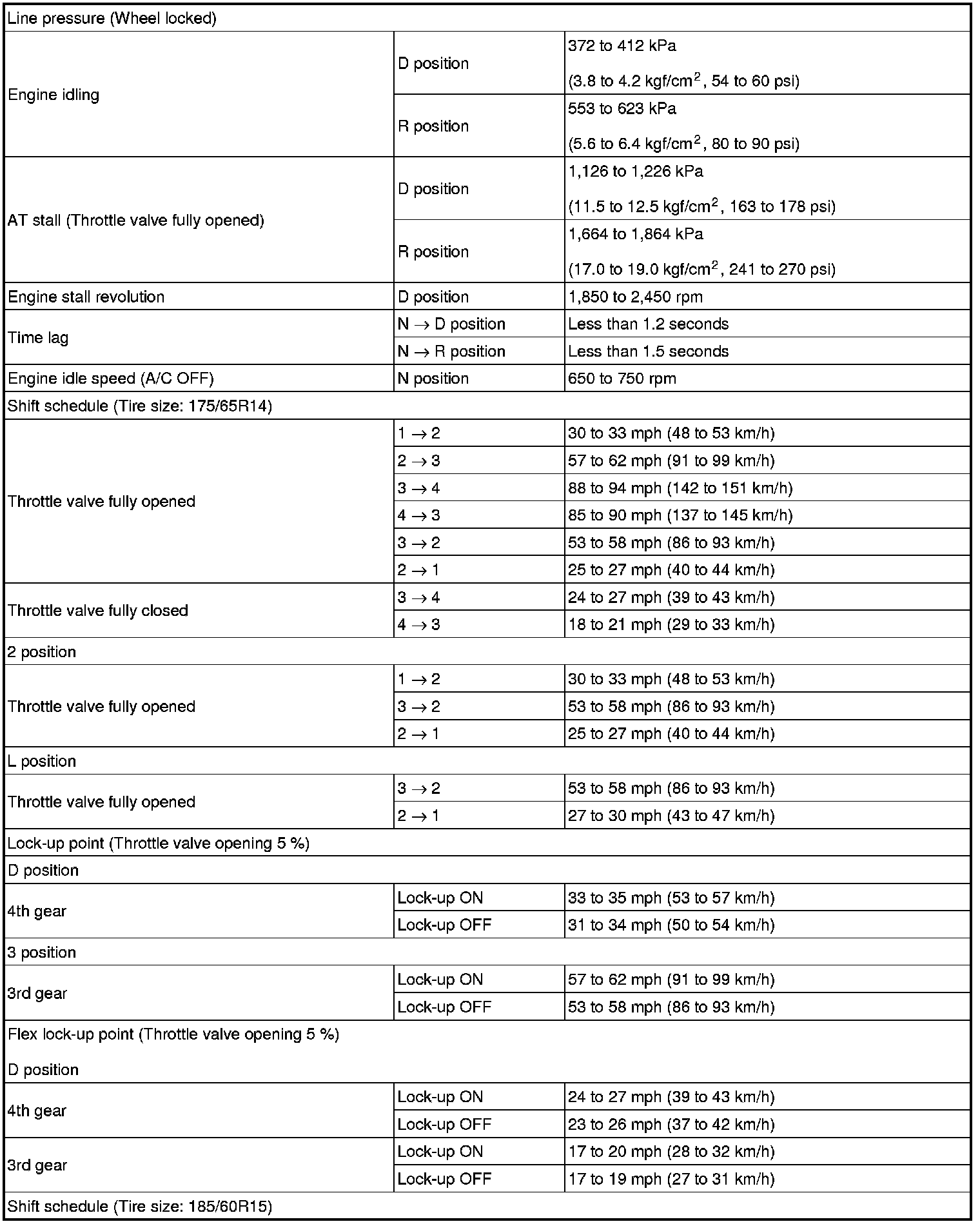

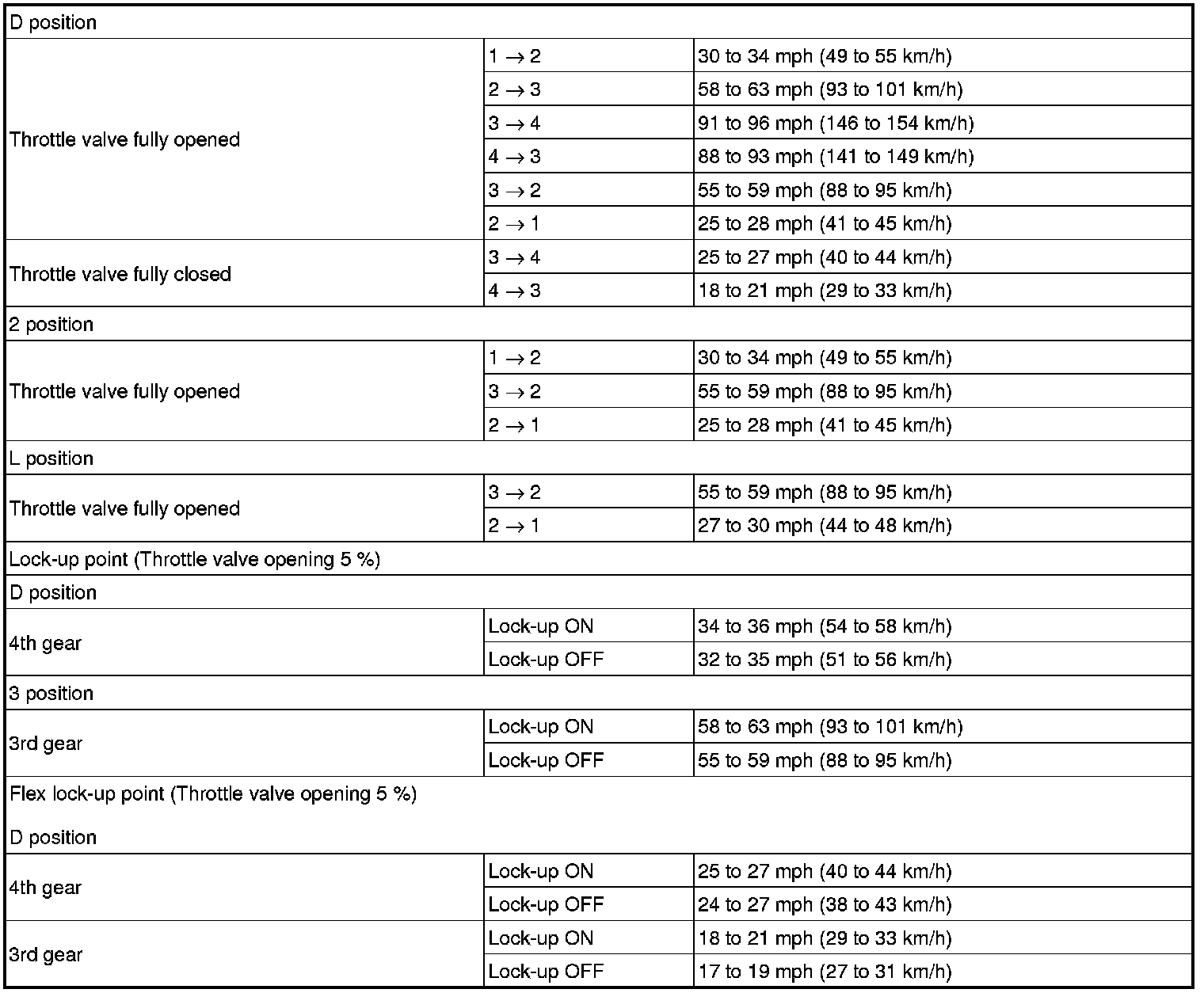

Automatic Transaxle System

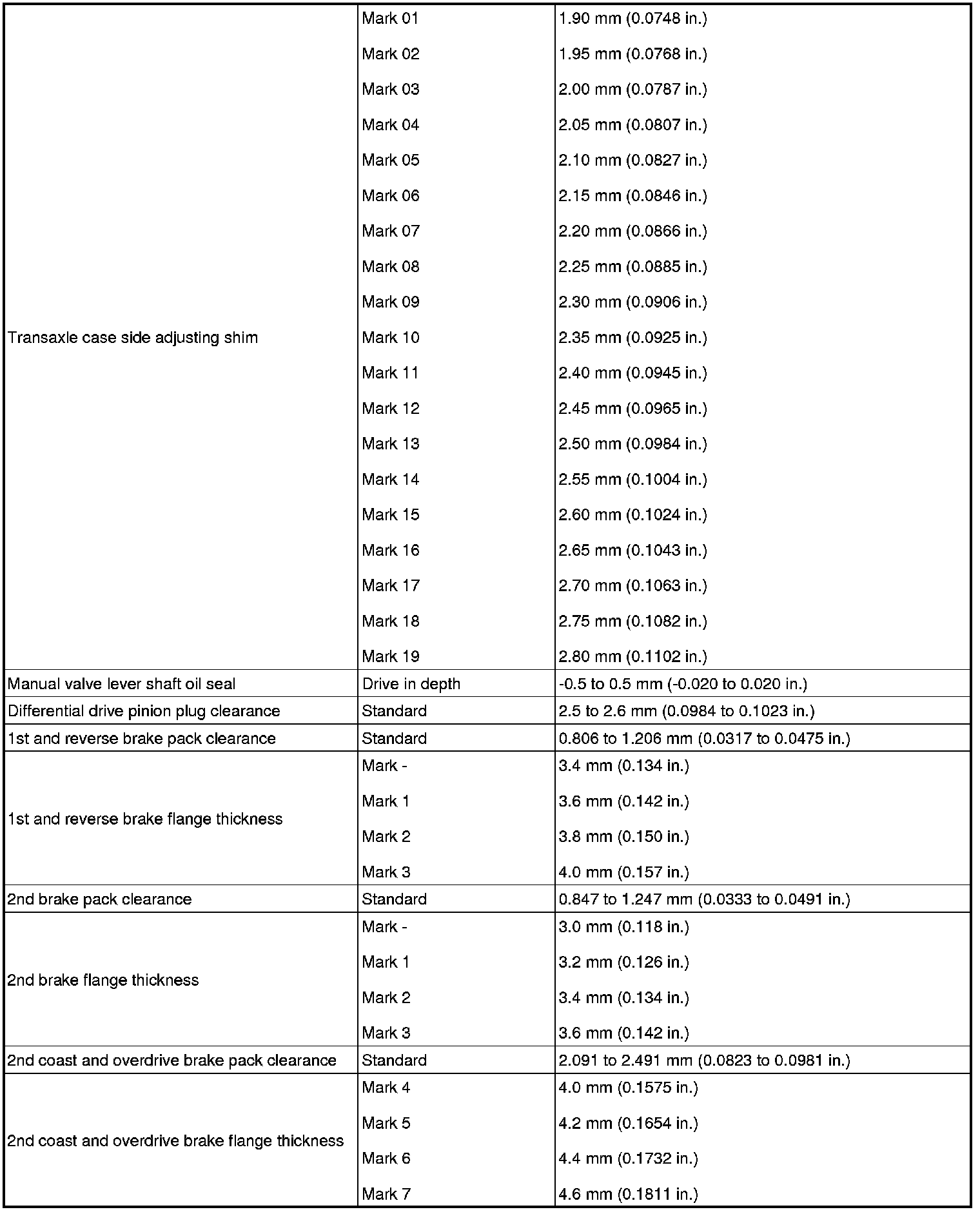

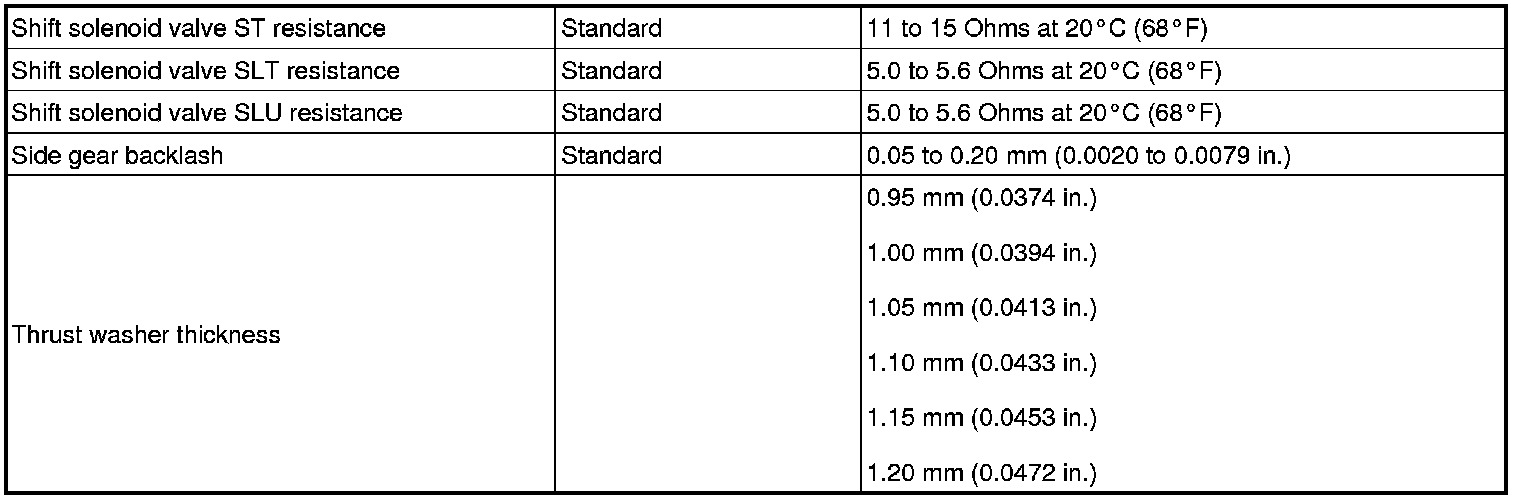

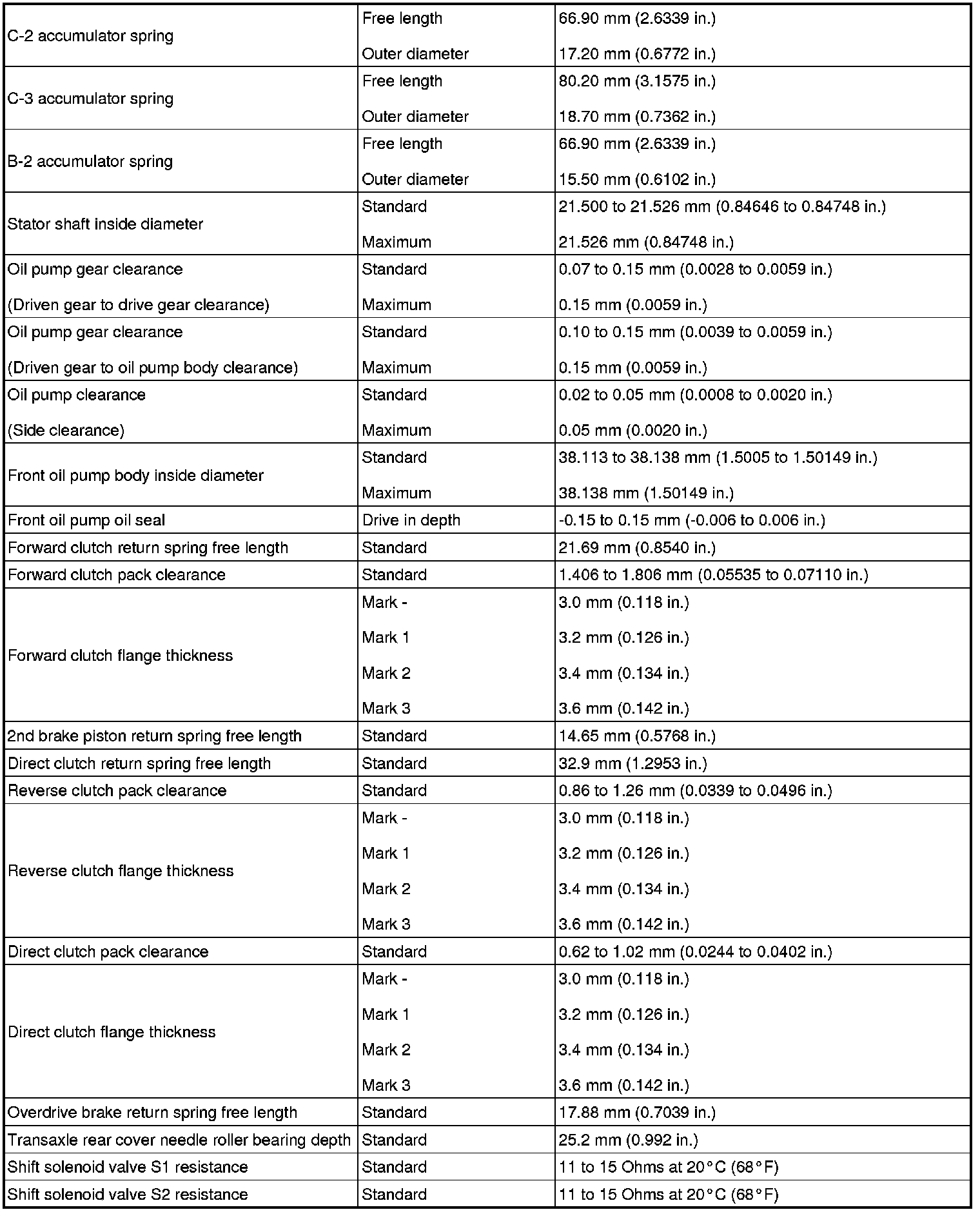

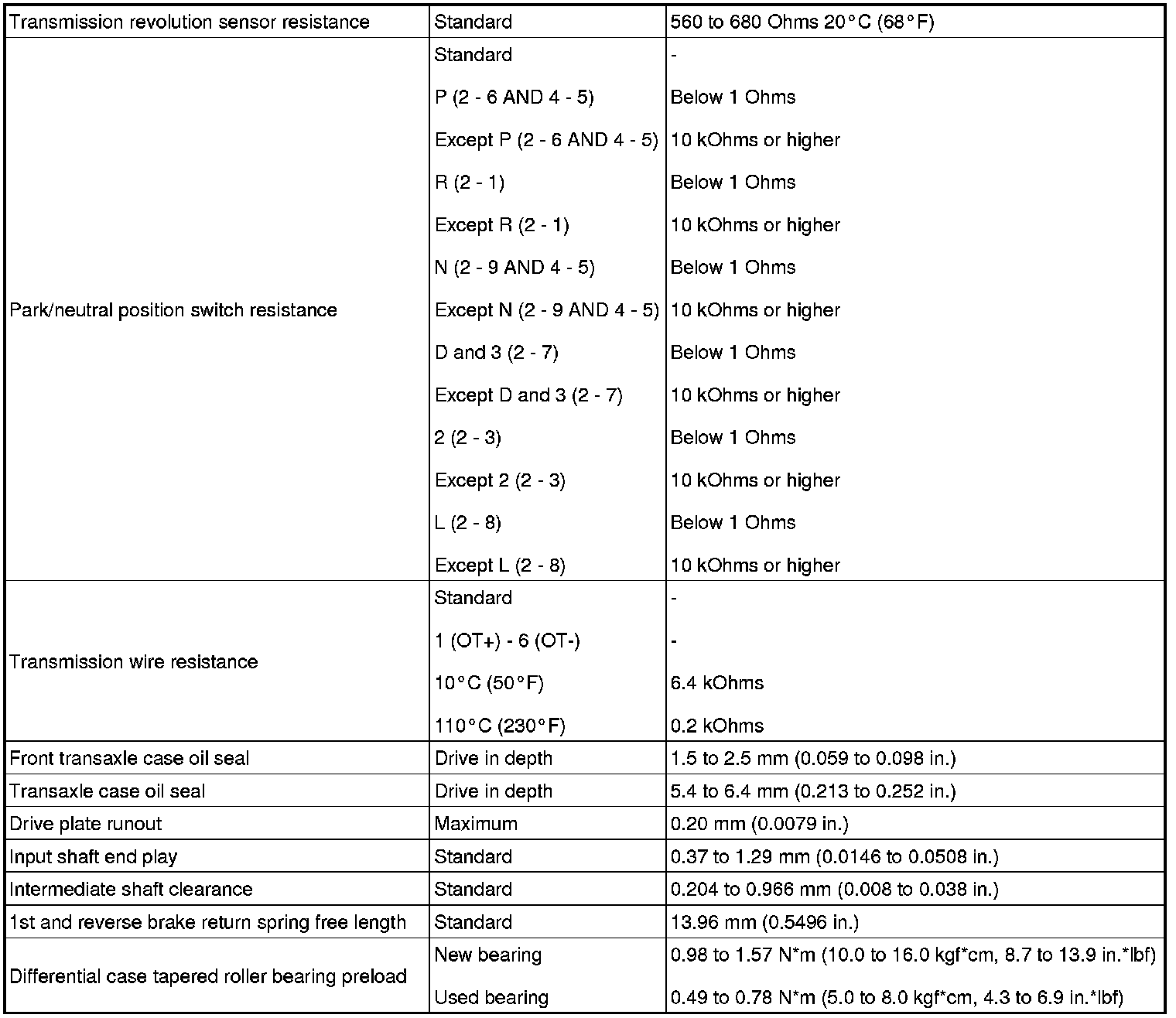

Automatic Transaxle Unit
