Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2009
>>
Yaris L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Ignition System
>>
System Specifications
System Specifications

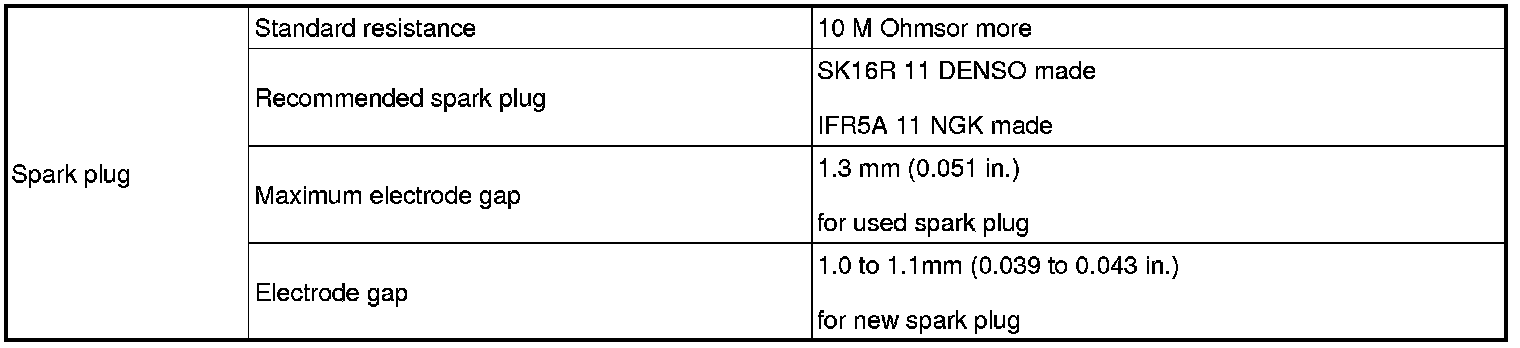

SERVICE SPECIFICATIONS: 1NZ-FE IGNITION: SERVICE DATA
SERVICE DATA
