Torque Specifications








SERVICE SPECIFICATIONS: 1NZ-FE STARTING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

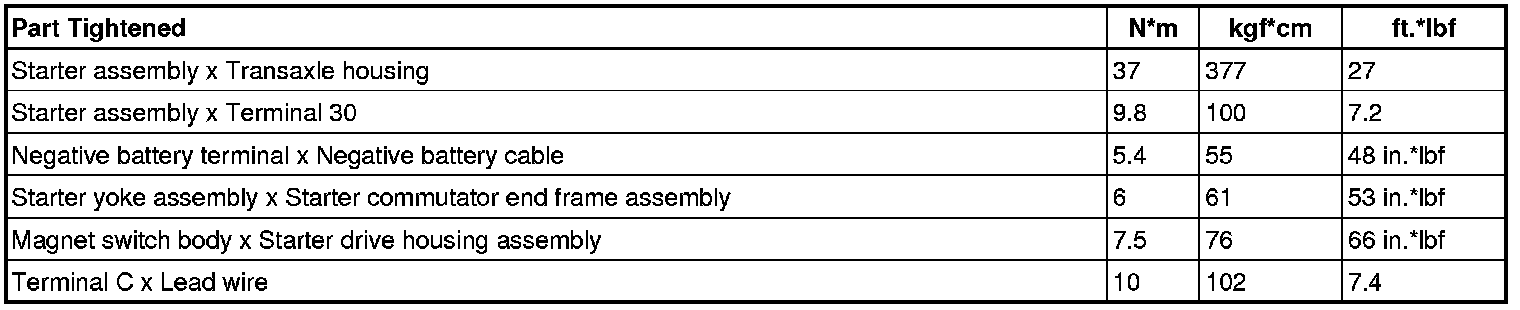

for 0.8 kW Type

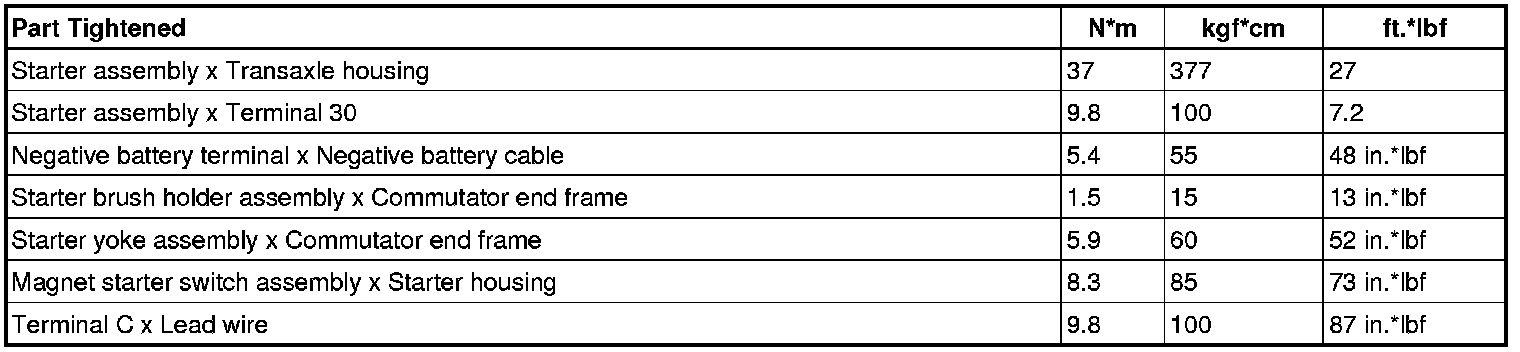

for 1.6kW Type
