Removal

2TR-FE ENGINE CONTROL: KNOCK SENSOR: REMOVAL

1. REMOVE INTAKE MANIFOLD

(a) Remove the intake manifold Removal.

2. REMOVE KNOCK SENSOR

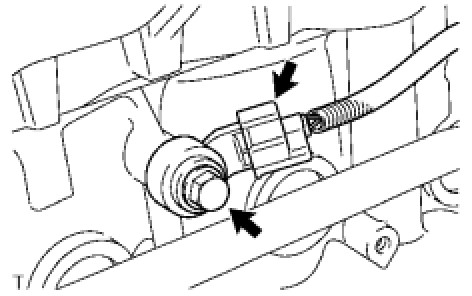

(a) Disconnect the knock sensor connector.

(b) Remove the bolt and knock sensor.
