Transmission Control Systems: Locations

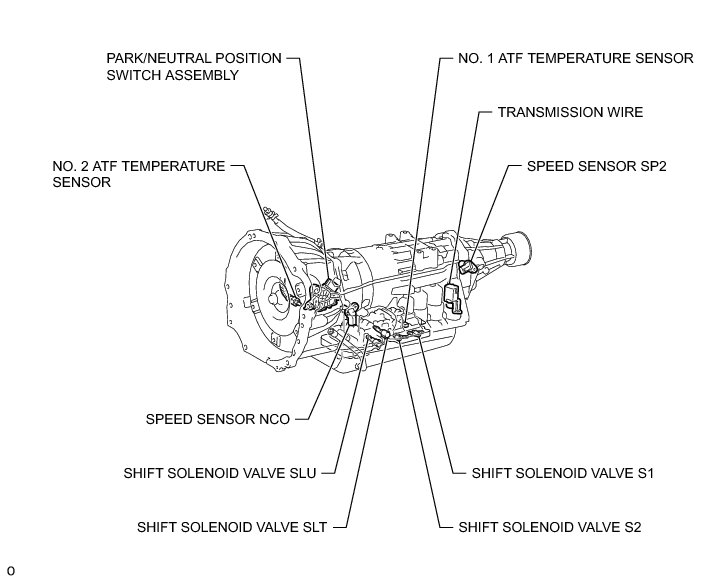

A343E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: PARTS LOCATION
