Cylinder Head Assembly

CYLINDER HEAD SUB-ASSEMBLY

The cylinder head bolts are tightened in 3 successive steps.

Step 1:

Using several steps, install and uniformly tighten the 10 cylinder head bolts with plate washers in the sequence shown in the illustration.






Torque 39 Nm (398 kgf-cm, 29 ft-lbf)

Mark the front of each cylinder head bolt head with paint.

Step 2:

Tighten the cylinder head bolts 90° in the sequence shown in step 1.

Step 3:

Tighten the cylinder head bolts another 90° in the sequence shown in step 1.

Check that the paint marks are now at a 180° angle to the front.

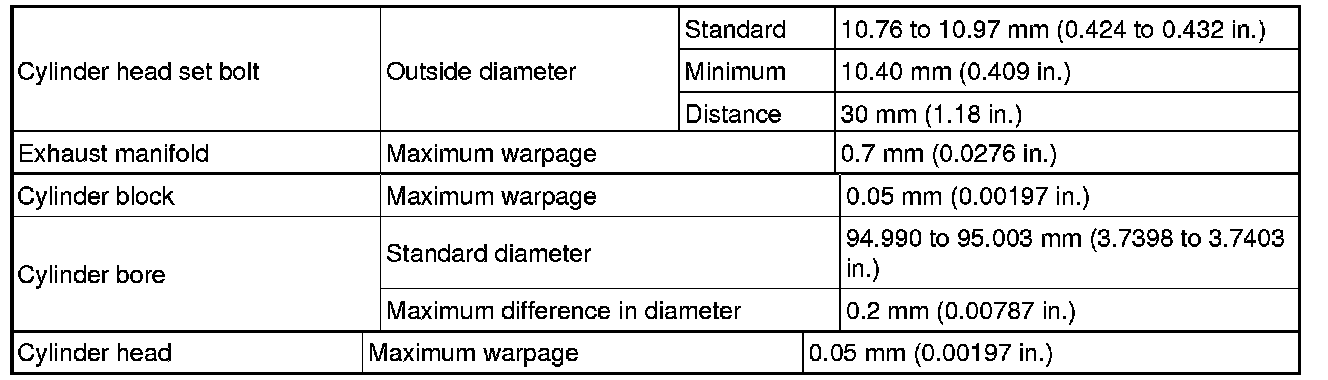

Cylinder Head Specifications






CAMSHAFT BEARING CAP

Install the 21 bolts and tighten them in the order shown in the illustration.






for bolt A - Torque 12 Nm (122 kgf-cm, 9 ft-lbf)

except bolt A - Torque 16 Nm (158 kgf-cm, 11 ft-lbf)

Intake Manifold Torque & Sequence Specifications

Exhaust Manifold Torque & Sequence Specifications

Camshaft Gear/Sprocket Torque Specifications
