Timing Cover
TIMING CHAIN COVER SUB-ASSEMBLYTemporarily install the timing chain cover with the 19 bolts and 2 nuts.

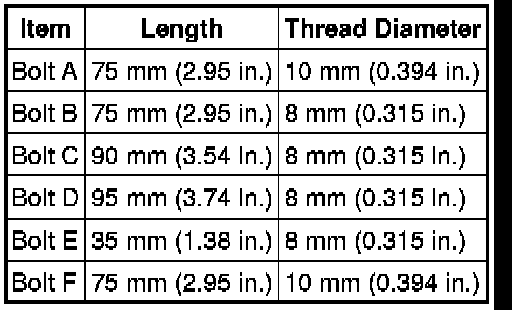

Bolt Length:

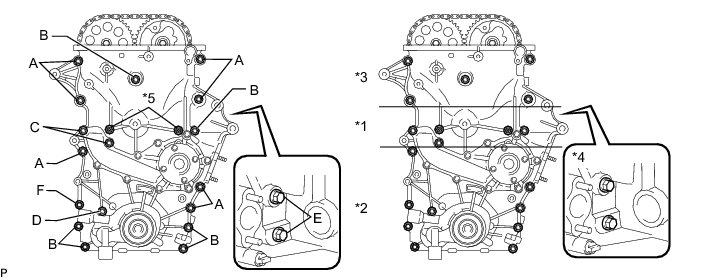

Excluding the bolts labeled A and F, tighten the bolts and nuts in this order: Area 1, Area 3, Area 2.
for bolt C - Torque 26 Nm (265 kgf-cm, 19 ft-lbf)
for bolt B, D and nut - Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
Tighten the bolts labeled A in this order: Area 2 and Area 3.
Torque 60 Nm (612 kgf-cm, 44 ft-lbf)
Tighten the bolts labeled F.
Torque 46 Nm (469 kgf-cm, 34 ft-lbf)
Tighten the bolts labeled E in Area 4.
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
