Display Signal Circuit between Inner Rear View Mirror Assembly and Television Camera Assembly

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM (w/o Navigation System): Display Signal Circuit between Inner Rear View Mirror Assembly and Television Camera Assembly
- Display Signal Circuit between Inner Rear View Mirror Assembly and Television Camera Assembly

DESCRIPTION

This is the display signal circuit of the television camera.

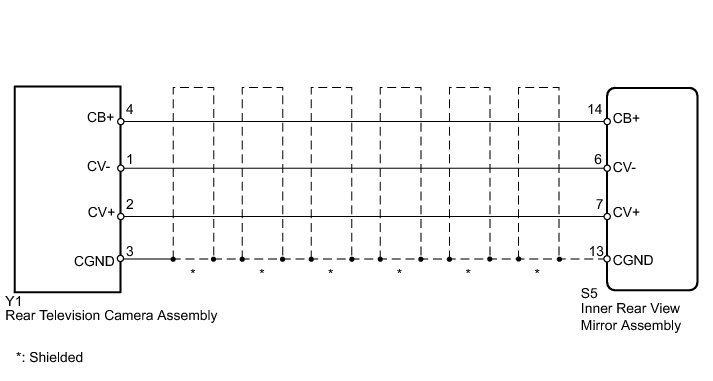

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (INNER REAR VIEW MIRROR - TELEVISION CAMERA)

(a) Disconnect the S5 inner rear view mirror assembly connector.

(b) Disconnect the Y1 rear television camera assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

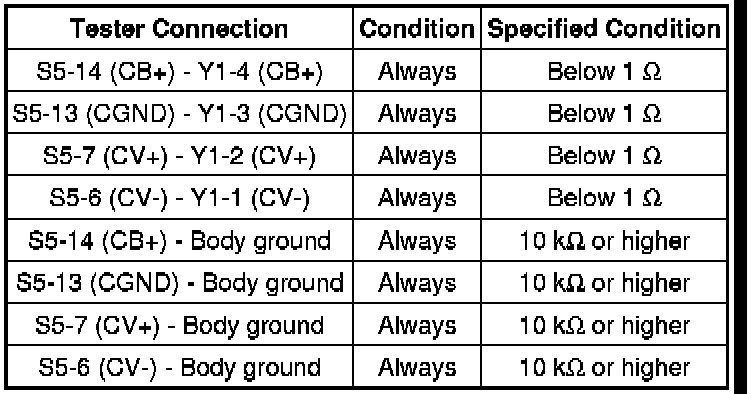

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. CHECK INNER REAR VIEW MIRROR ASSEMBLY





(a) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

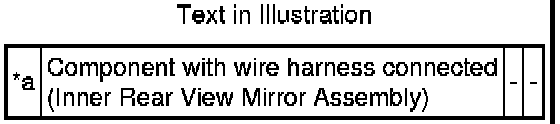

Text in Illustration





NG -- REPLACE INNER REAR VIEW MIRROR ASSEMBLY Removal
OK -- Continue to next step.

3. CHECK REAR TELEVISION CAMERA ASSEMBLY

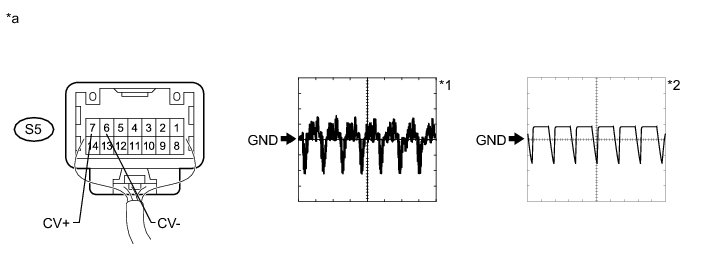

(a) Using an oscilloscope, check the waveform.

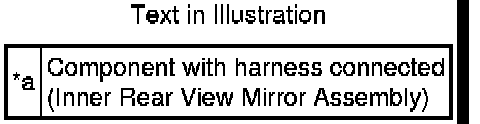

Text in Illustration

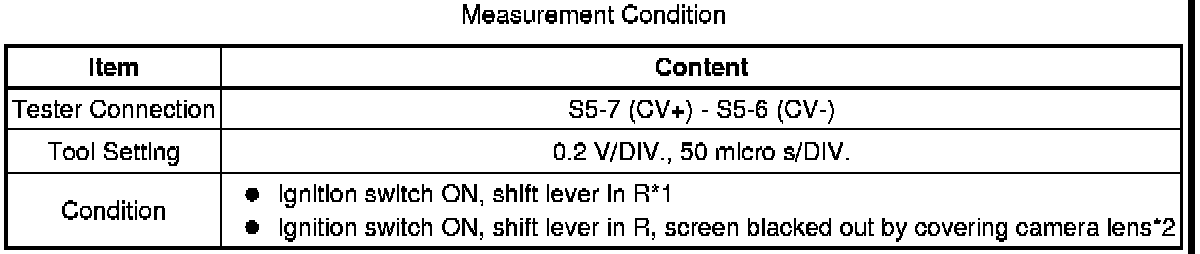

Measurement Condition





OK:

Waveform is as shown in illustration.

NG -- REPLACE REAR TELEVISION CAMERA ASSEMBLY Removal

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Rear View Monitor System (w/o Navigation System)
