Power Seat Control Module: Locations

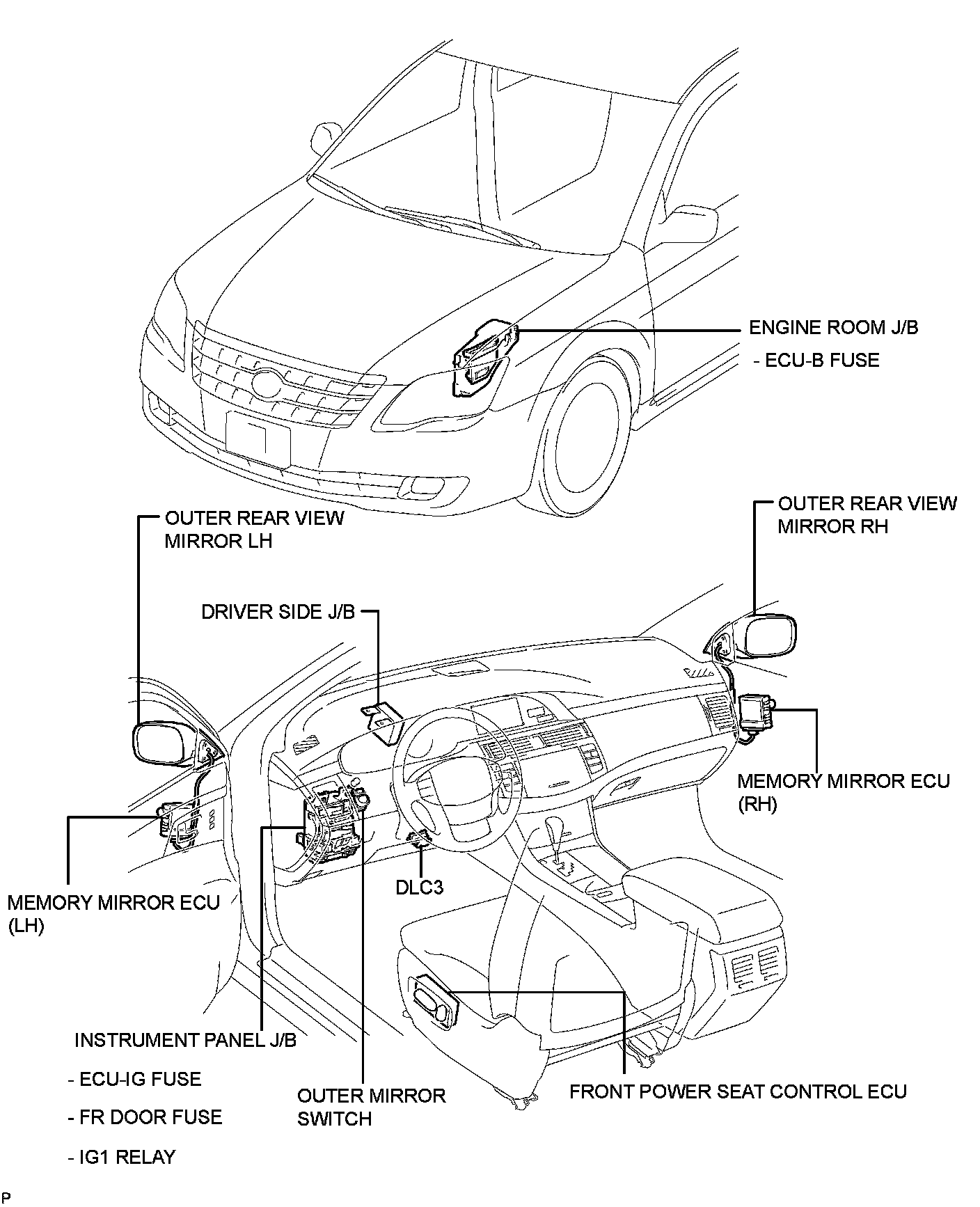

MIRROR: POWER MIRROR CONTROL SYSTEM (w/ Memory): PARTS LOCATION
