Heater Control Panel Power Source Circuit

AIR CONDITIONING: AIR CONDITIONING SYSTEM: Heater Control Panel Power Source Circuit
- Heater Control Panel Power Source Circuit

DESCRIPTION

Battery voltage is supplied to the A/C control assembly (heater control base sub-assembly) through the A/C No. 2 fuse.

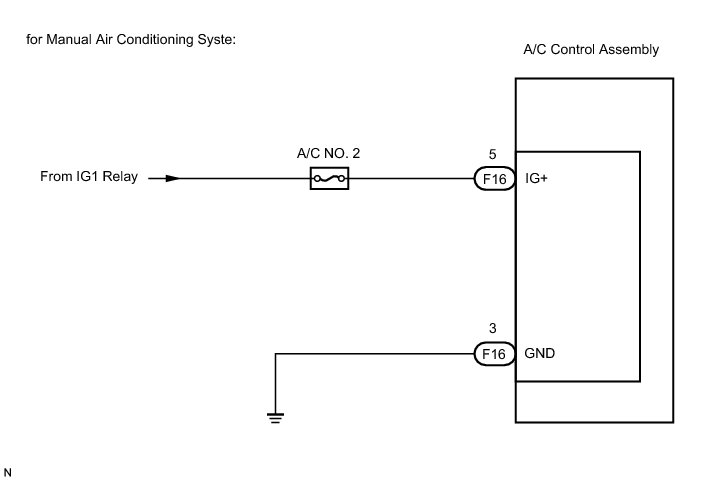

WIRING DIAGRAM









INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (IG+ - BODY GROUND)

(a) Disconnect the connector from the A/C control assembly (heater control base sub-assembly).





(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (GND - BODY GROUND)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
