Removal

2GR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: REMOVAL

1. REMOVE ENGINE UNDER COVER LH

2. REMOVE ENGINE UNDER COVER RH

3. DRAIN ENGINE COOLANT Testing and Inspection

4. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

5. REMOVE AIR CLEANER INLET ASSEMBLY Removal

6. REMOVE AIR CLEANER CAP SUB-ASSEMBLY Removal

7. REMOVE AIR CLEANER CASE SUB-ASSEMBLY Removal

8. REMOVE NO. 1 AIR CLEANER INLET Removal

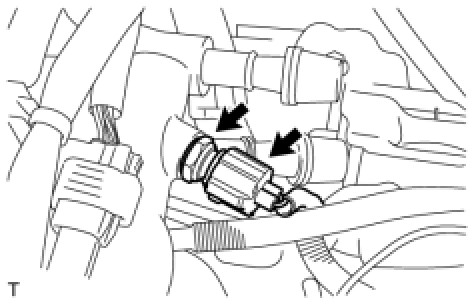

9. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

(a) Remove the engine coolant temperature sensor connector.





(b) Remove the engine coolant temperature sensor.
