Variable Valve Timing Actuator Position Sensor
>>
Service and Repair
>>
Components
Components

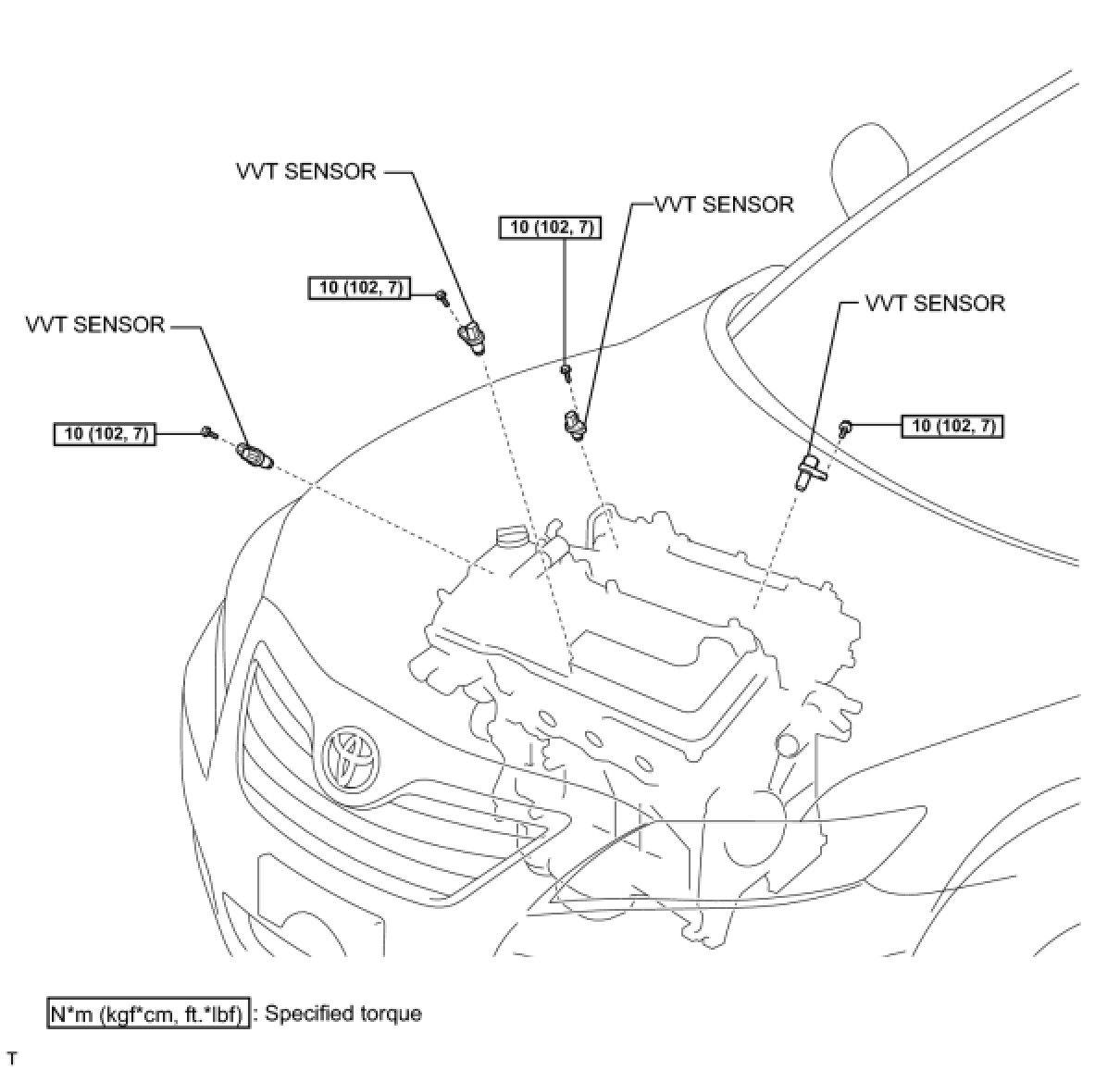

2GR-FE ENGINE CONTROL SYSTEM: VVT SENSOR: COMPONENTS
