Installation

2GR-FE STARTING: STARTER: INSTALLATION

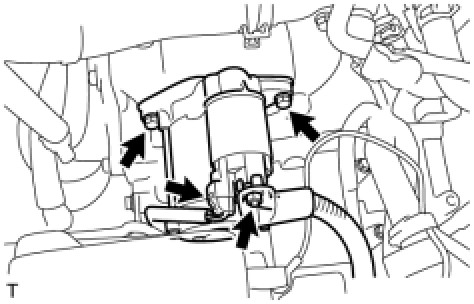

1. INSTALL STARTER ASSEMBLY

(a) Install the starter assembly with the 2 bolts.





Torque : 37 Nm (380 kgf-cm, 28 ft-lbf)

(b) Connect the wire harness to terminal 30 and install the nut. Then, attach the terminal cap.

Torque : 9.8 Nm (100 kgf-cm, 87 in-lbf)

(c) Connect the terminal 50 connector to the starter assembly.

2. INSTALL NO. 1 AIR CLEANER INLET Installation

3. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation

4. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation

5. INSTALL AIR CLEANER INLET ASSEMBLY Installation

6. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

7. INSTALL COOL AIR INTAKE DUCT SEAL Installation

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation
