B1620

SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: B1620/21: Side Airbag Sensor RH Circuit Malfunction
B1620/21 - Side Airbag Sensor RH Circuit Malfunction

DESCRIPTION

The side airbag sensor RH circuit consists of the center airbag sensor assembly, side airbag sensor RH and rear airbag sensor RH.

The side airbag sensor RH and rear airbag sensor RH detect impacts to the vehicle and send signals to the center airbag sensor assembly to determine if the airbag should be deployed.

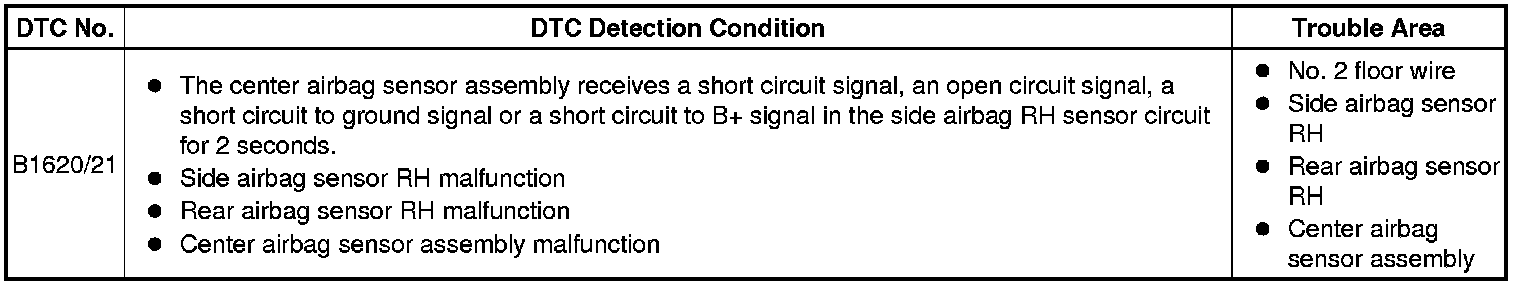

DTC B1620/21 is recorded when a malfunction is detected in the side airbag sensor RH circuit.

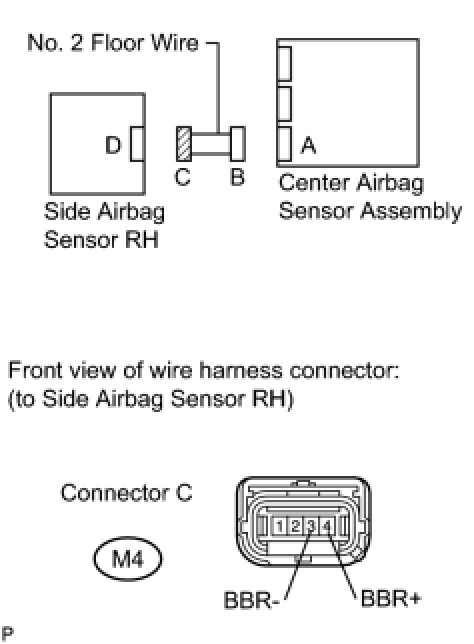

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1. CHECK CONNECTORS

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Check that the connectors are properly connected to the center airbag sensor assembly, side airbag sensor RH and rear airbag sensor RH.

OK:

The connectors are properly connected.

HINT
If the connectors are not connected securely, reconnect the connectors and proceed to the next inspection.

(d) Disconnect the connectors from the center airbag sensor assembly, side airbag sensor RH and rear airbag sensor RH.

(e) Check that the terminals of the connectors are not damaged.

OK:

The terminals are not deformed or damaged.

NG -- REPLACE NO. 2 FLOOR WIRE
OK -- Continue to next step.

2. CHECK NO. 2 FLOOR WIRE (OPEN)

(a) Using SST, connect terminals 8 (BBR+) and 11 (BBR-) of connector B.

NOTICE:
Do not forcibly insert SST into the terminals of the connector when connecting.

SST : 09843-18040

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- REPLACE NO. 2 FLOOR WIRE
OK -- Continue to next step.

3. CHECK NO. 2 FLOOR WIRE (SHORT)

(a) Disconnect SST from connector B.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- REPLACE NO. 2 FLOOR WIRE
OK -- Continue to next step.

4. CHECK NO. 2 FLOOR WIRE (SHORT TO B+)

(a) Connect the cable to the negative (-) battery terminal.

(b) Turn the ignition switch to ON.

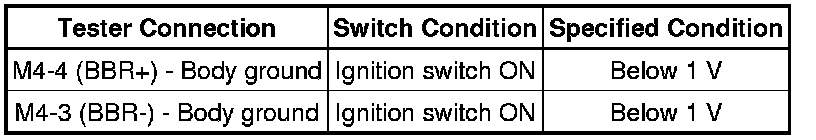

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

NG -- REPLACE NO. 2 FLOOR WIRE
OK -- Continue to next step.

5. CHECK NO. 2 FLOOR WIRE (SHORT TO GROUND)

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

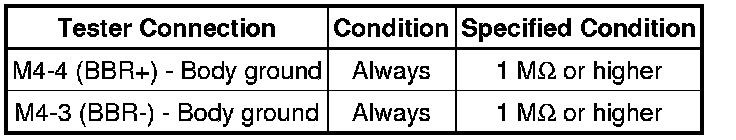

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- REPLACE NO. 2 FLOOR WIRE
OK -- Continue to next step.

6. CHECK NO. 2 FLOOR WIRE (OPEN)

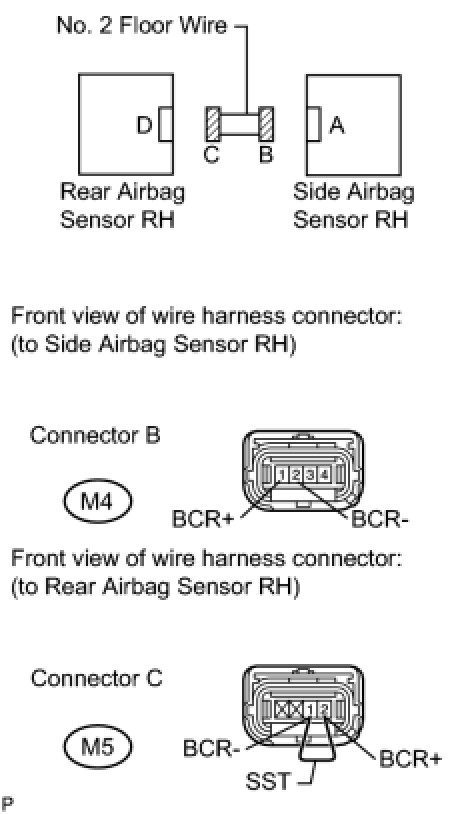

(a) Using SST, connect terminals 2 (BCR+) and 1 (BCR-) of connector C.

NG -- REPLACE NO. 2 FLOOR WIRE
OK -- Continue to next step.

7. CHECK NO. 2 FLOOR WIRE (SHORT)

(a) Disconnect SST from connector C.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- REPLACE NO. 2 FLOOR WIRE
OK -- Continue to next step.

8. CHECK NO. 2 FLOOR WIRE (SHORT TO B+)

(a) Connect the cable to the negative (-) battery terminal.

(b) Turn the ignition switch to ON.

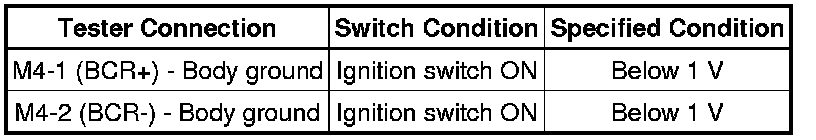

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

NG -- REPLACE NO. 2 FLOOR WIRE
OK -- Continue to next step.

9. CHECK NO. 2 FLOOR WIRE (SHORT TO GROUND)

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

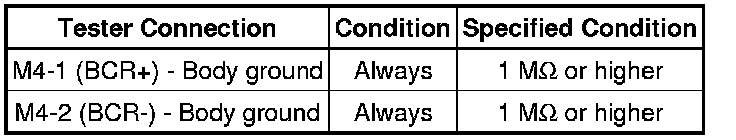

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- REPLACE NO. 2 FLOOR WIRE
OK -- Continue to next step.

10. CHECK SIDE AIRBAG SENSOR RH

(a) Connect the connectors to the center airbag sensor assembly and rear airbag sensor RH.

(b) Interchange the side airbag sensor LH with RH and connect the connectors.

(c) Connect the cable to the negative (-) battery terminal.

(d) Turn the ignition switch to ON, and wait for at least 60 seconds.

(e) Clear the DTCs stored in the memory DTC Check / Clear.

(f) Turn the ignition switch off.

(g) Turn the ignition switch to ON, and wait for at least 60 seconds.

(h) Check for DTCs DTC Check / Clear.

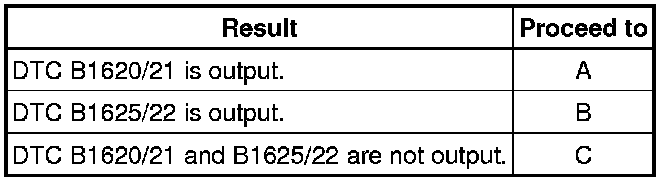

Result:

HINT
Codes other than DTC B1620/21 and B1625/22 may be output at this time, but they are not related to this check.

C -- USE SIMULATION METHOD TO CHECK Diagnosis System

B -- REPLACE SIDE AIRBAG SENSOR RH Removal
A -- Continue to next step.

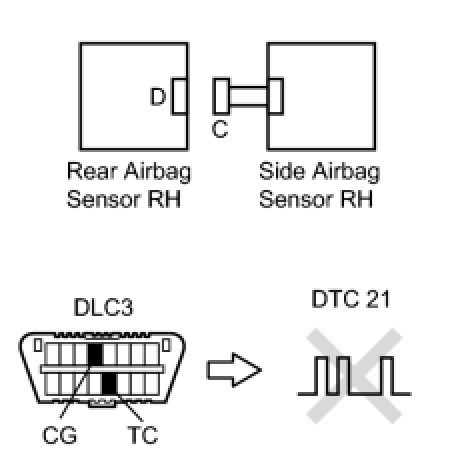

11. CHECK REAR AIRBAG SENSOR RH

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Return the side airbag sensors LH and RH to their original positions and connect the connectors.

(d) Disconnect the connector from the rear airbag sensor RH.

(e) Connect the cable to the negative (-) battery terminal.

(f) Turn the ignition switch to ON, and wait for at least 60 seconds.

(g) Clear the DTCs stored in the memory DTC Check / Clear.

(h) Turn the ignition switch off.

(i) Turn the ignition switch to ON, and wait for at least 60 seconds.

(j) Check for DTCs DTC Check / Clear.

OK:

DTC B1620/21 is not output.

HINT
Codes other than DTC B1620/21 may be output at this time, but they are not related to this check.

NG -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY Removal

OK -- REPLACE REAR AIRBAG SENSOR RH Removal
