W/ Smart Key System

THEFT DETERRENT / KEYLESS ENTRY: ENGINE IMMOBILISER SYSTEM (w/ Smart Key System): B279A: Theft Deterrent System Communication Line High Fixation
B279A - Theft Deterrent System Communication Line High Fixation

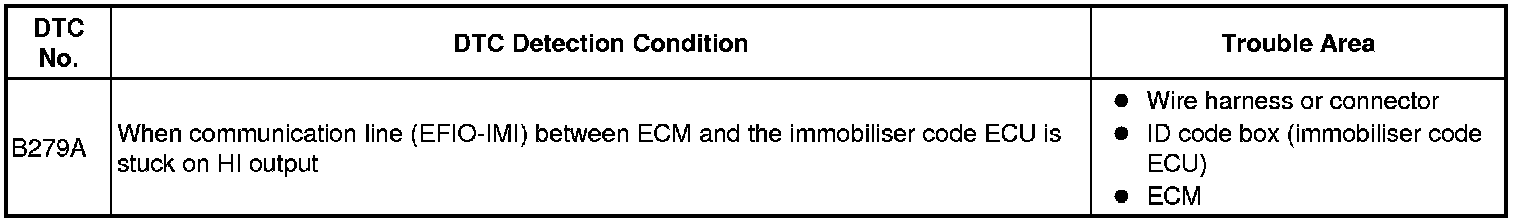

DESCRIPTION

If the communication line (EFIO-IMI) to the ID code box (immobiliser code ECU) is stuck on HI output, the ECM outputs this DTC.

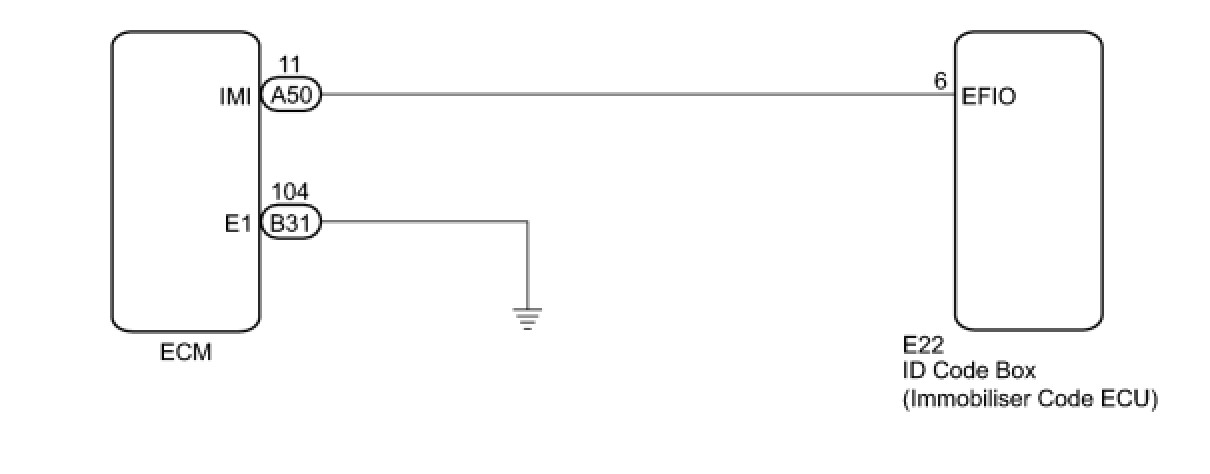

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:
- If the ID code box (immobiliser code ECU) is replaced, register the ECU code and ECU communication ID Engine Immobiliser System (W/ Smart Key System).
- If the ECM is replaced, register the ECU communication ID Engine Immobiliser System (W/ Smart Key System).

PROCEDURE

1. CHECK DTC OUTPUT

(a) Recheck for DTCs Engine Immobiliser System (w/ Smart Key System).

HINT
If any DTCs other than DTC B279A are output, troubleshoot those DTCs first.

Result:

B -- GO TO DTC CHART Engine Immobiliser System (w/ Smart Key System)
A -- Continue to next step.

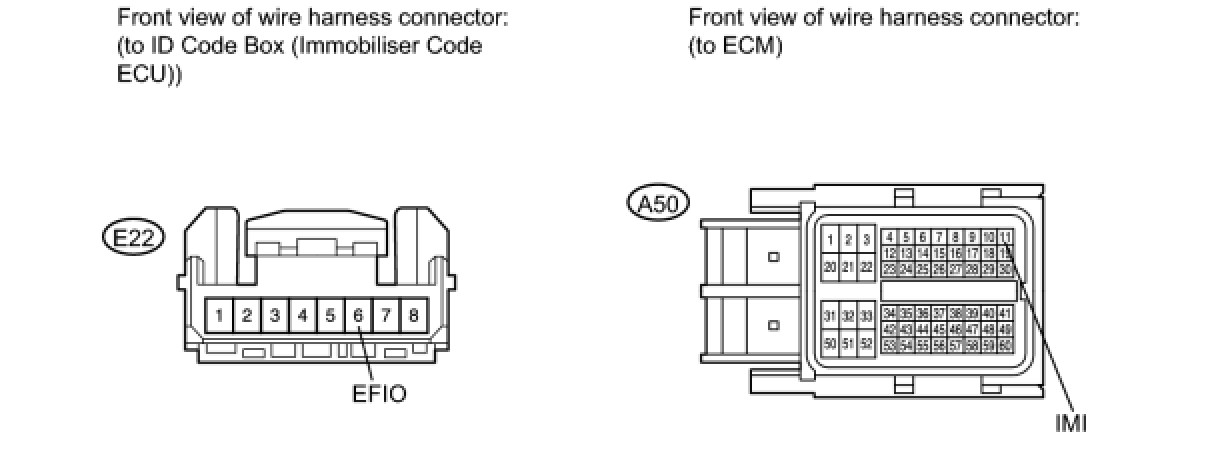

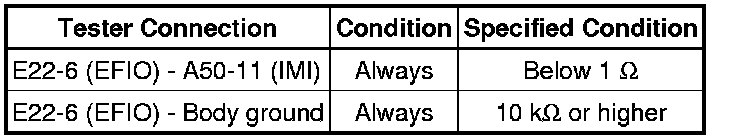

2. CHECK HARNESS AND CONNECTOR (ID CODE BOX - ECM)

(a) Disconnect the ID code box (immobiliser code ECU) connector.

(b) Disconnect the ECM connector.

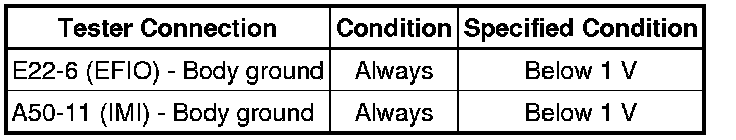

Standard Voltage:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. CHECK ECM (INPUT)

(a) Reconnect the ID code box (immobiliser code ECU) connector.

(b) Reconnect the ECM connector.

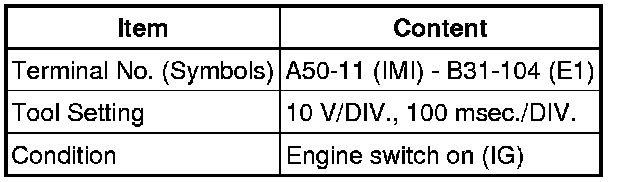

(c) Measure the waveform.

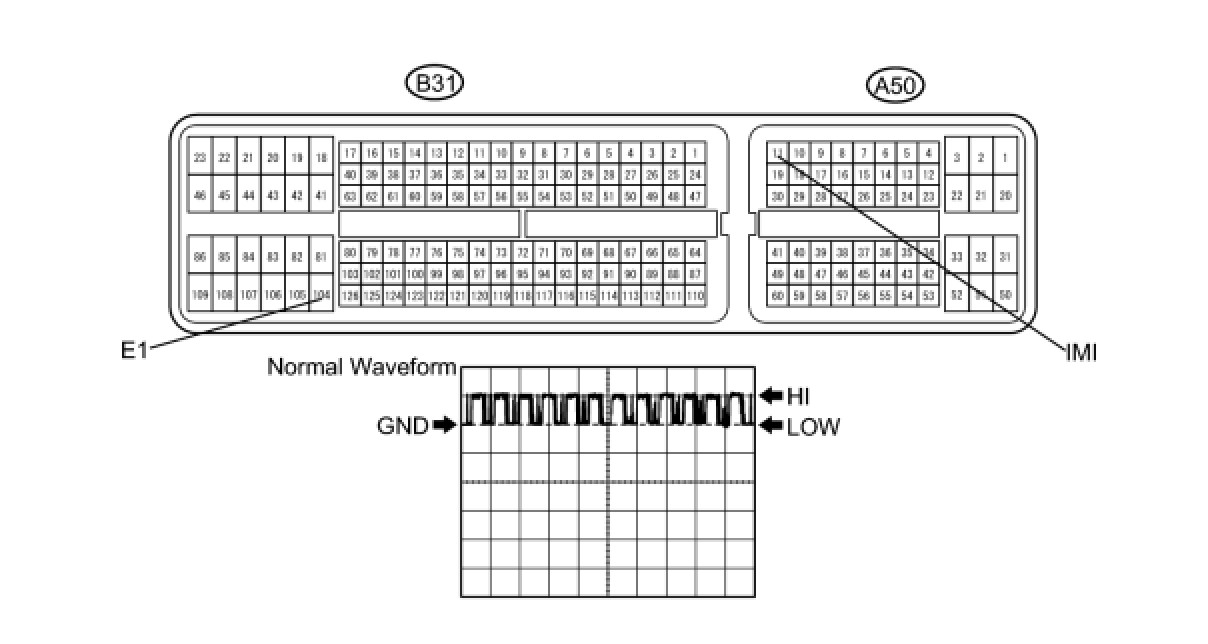

Waveform (Reference):

NG -- REPLACE ID CODE BOX (IMMOBILISER CODE ECU)

OK -- REPLACE ECM Removal

4. REPLACE ID CODE BOX (IMMOBILISER CODE ECU)

(a) Replace the ID code box (immobiliser code ECU) Removal.

NEXT -- Continue to next step.

5. REGISTER ECU CODE

(a) Register the ECU code Engine Immobiliser System (W/ Smart Key System).

NEXT -- Continue to next step.

6. REGISTER ECU COMMUNICATION ID

(a) Register the ECU communication ID Engine Immobiliser System (W/ Smart Key System).

NEXT -- Continue to next step.

7. CHECK DTC OUTPUT

(a) Clear the DTCs Engine Immobiliser System (w/ Smart Key System).

(b) Recheck for DTCs.

OK:

B279A is not reoutput.

NG -- REPLACE ECM Removal

OK -- END (ID CODE BOX (IMMOBILISER CODE ECU) IS DEFECTIVE)
