C1281

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: C1281: Master Cylinder Pressure Sensor Output Malfunction (Test Mode DTC)
C1281 - Master Cylinder Pressure Sensor Output Malfunction (Test Mode DTC)

DESCRIPTION

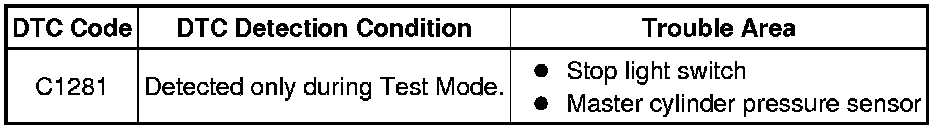

DTC C1281 will be cleared when the master cylinder pressure sensor sends a master cylinder pressure signal or when Test Mode ends. DTC C1281 is output only in Test Mode.





WIRING DIAGRAM

Refer to DTC C1425 C1425.

INSPECTION PROCEDURE

NOTICE:
When replacing the brake actuator assembly, perform zero point calibration Calibration.

PROCEDURE

1. CHECK STOP LIGHT OPERATION

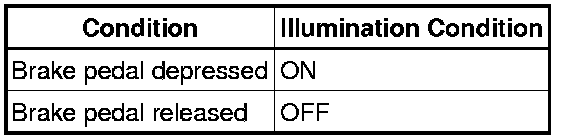

(a) Check that the stop lights come on when the brake pedal is depressed, and go off when the brake pedal is released.

OK:





NG -- INSPECT STOP LIGHT CIRCUIT Exterior Lighting System
OK -- Continue to next step.

2. READ VALUE USING TECHSTREAM (STOP LIGHT SWITCH)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Select the Data List on the Techstream Data List / Active Test.

ABS/VSC/TRAC

ABS/VSC/TRAC:

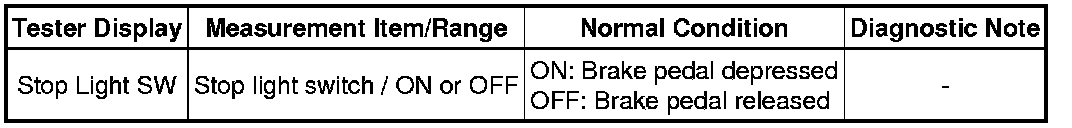

(d) Check that the stop light switch display observed on the Techstream changes according to brake pedal operation.

OK:

The Techstream displays ON or OFF according to brake pedal operation.

NG -- INSPECT SKID CONTROL ECU (STP TERMINAL)
OK -- Continue to next step.

3. READ VALUE USING TECHSTREAM (MASTER CYLINDER PRESSURE SENSOR)

(a) Select the Data List on the Techstream Data List / Active Test.

ABS/VSC/TRAC

ABS/VSC/TRAC:

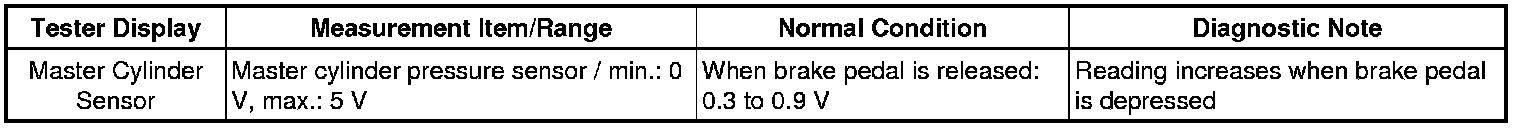

(b) Check that the brake fluid pressure value of the master cylinder pressure sensor observed on the Techstream changes when the brake pedal is depressed.

OK:

When the pedal is depressed, voltage displayed on the Techstream increases.

NG -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal
OK -- Continue to next step.

4. PERFORM TEST MODE (SIGNAL CHECK)

(a) Turn the ignition switch off.

(b) Perform the sensor check in the Test Mode procedure Test Mode Procedure.

OK:

All Test Mode DTCs are cleared.

NG -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal

OK -- CHECK FOR INTERMITTENT PROBLEMS (SYMPTOM SIMULATION) Diagnosis System

5. INSPECT SKID CONTROL ECU (STP TERMINAL)

(a) Turn the ignition switch off.





(b) Make sure that there is no looseness at the locking part and the connecting part of the connector.

(c) Disconnect the skid control ECU connector.

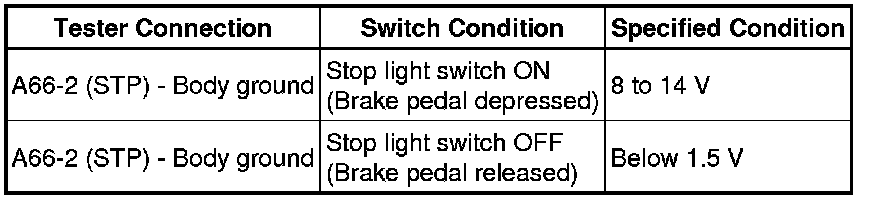

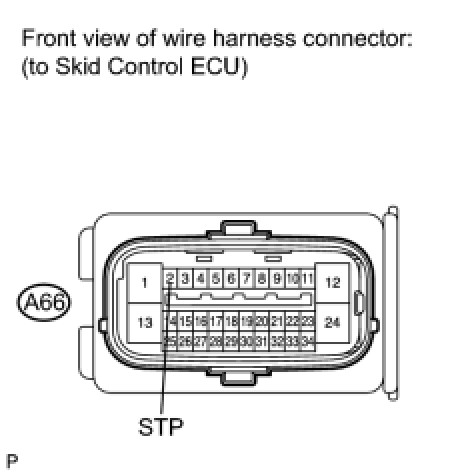

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (STP CIRCUIT)

OK -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal
