C1424

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: C1421,C1423,C1424: Open or Short in Master Cylinder Pressure Sensor
C1424 - Master Cylinder Pressure Sensor Output Malfunction

DESCRIPTION

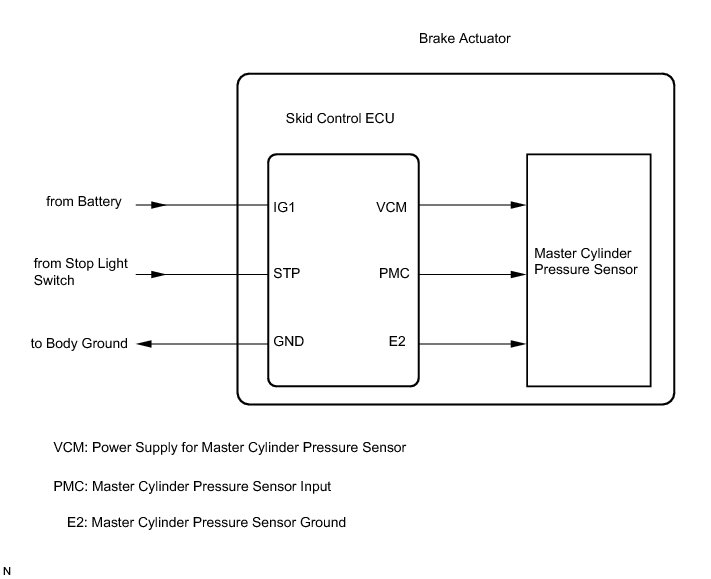

The master cylinder pressure sensor is connected to the skid control ECU in the brake actuator assembly.









INSPECTION PROCEDURE

NOTICE:
When replacing the brake actuator assembly, perform zero point calibration Calibration.

PROCEDURE

1. REPLACE BRAKE ACTUATOR ASSEMBLY

(a) Replace the brake actuator assembly (master cylinder pressure sensor) Removal.

NEXT -- END
