C1524

POWER ASSIST SYSTEMS: POWER STEERING SYSTEM (for 2ZR-FE): C1524,C1555: Motor Circuit Malfunction

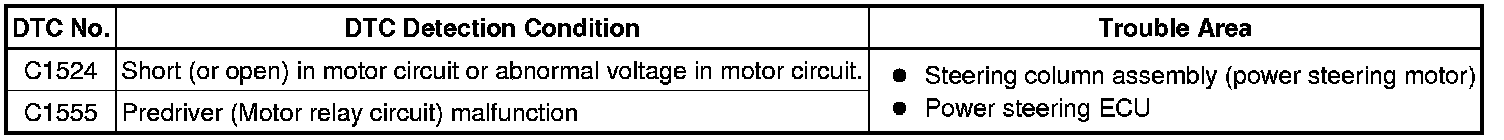

C1555 - Motor Relay Welding Failure

DESCRIPTION

The power steering ECU supplies current to the power steering motor through the motor circuit.

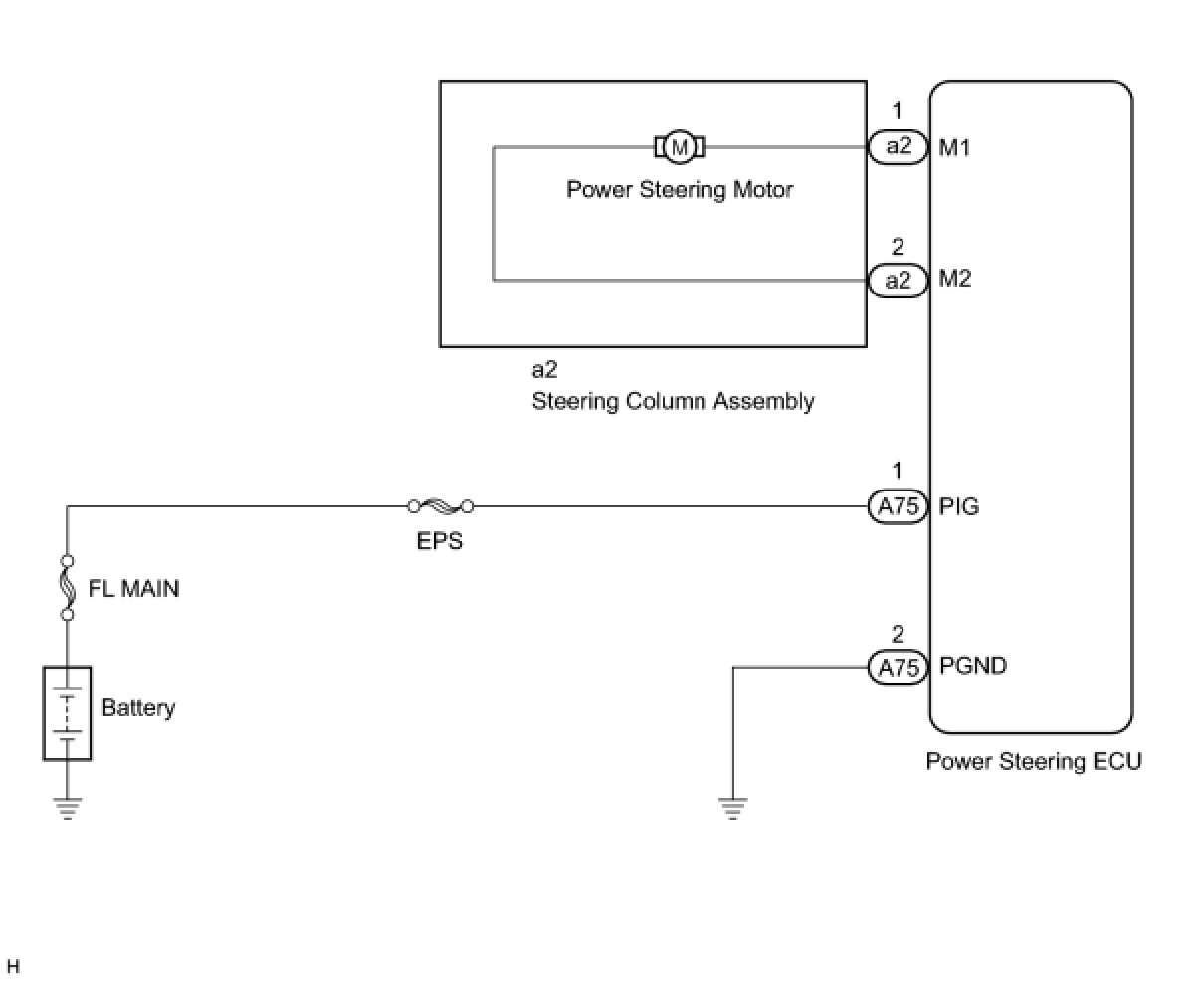

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
* If the power steering ECU has been replaced with a new one, perform the assist map writing and the torque sensor zero point calibration Programming and Relearning.
* If the steering column assembly has been replaced with a new one, perform the torque sensor zero point calibration after performing the initialization of the torque sensor zero point value Programming and Relearning.

PROCEDURE

1. CHECK POWER STEERING ECU

(a) Turn the ignition switch on (IG).

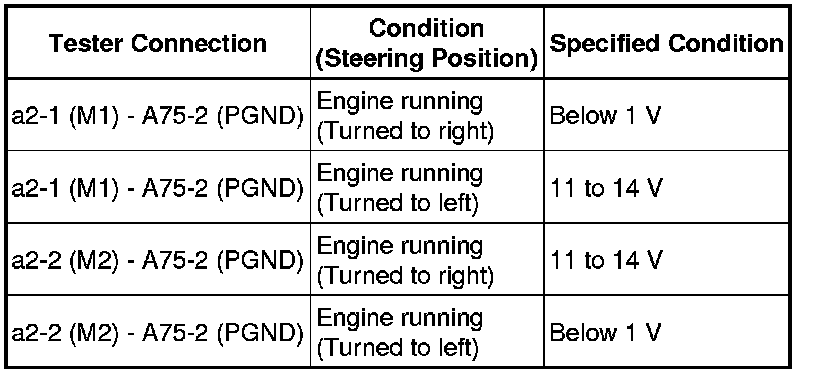

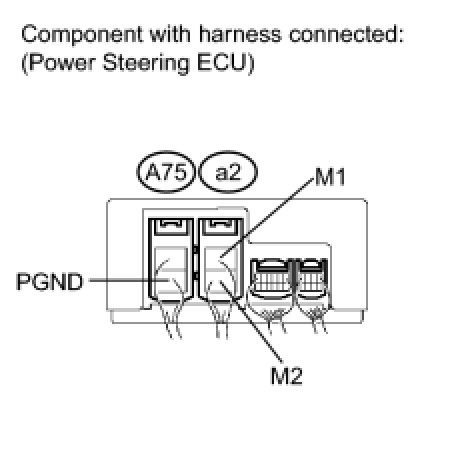

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- CHECK HARNESS AND CONNECTOR (POWER STEERING ECU - BODY GROUND)
OK -- Continue to next step.

2. CHECK STEERING COLUMN ASSEMBLY (POWER STEERING MOTOR)

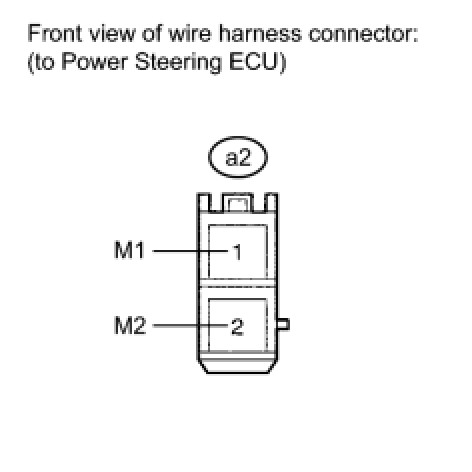

(a) Disconnect the connector from the power steering ECU.

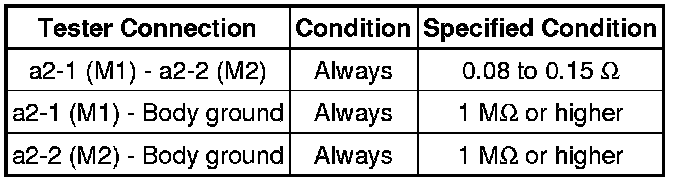

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPLACE STEERING COLUMN ASSEMBLY Removal
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (POWER STEERING ECU - BODY GROUND)

(a) Disconnect the connector from the power steering ECU.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE POWER STEERING ECU Removal
