Air Conditioning System (for Manual Air Conditioning System)

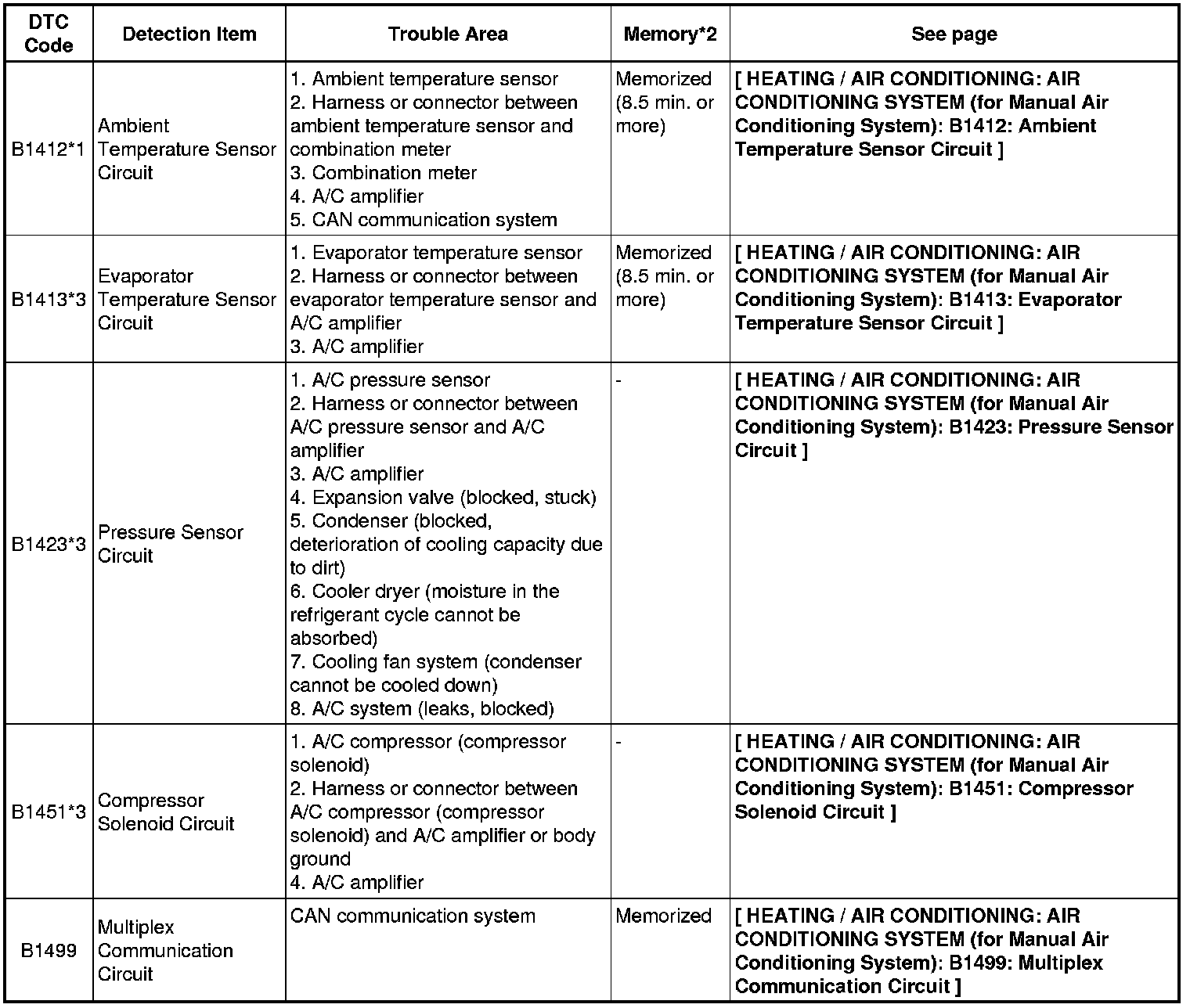

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Manual Air Conditioning System): DIAGNOSTIC TROUBLE CODE CHART
HINT
When the air conditioning system functions properly, DTC B1400 is output.
Air Conditioning System (for Manual Air Conditioning System)
Air Conditioning System (for Manual Air Conditioning System):
HINT
* *1: If the ambient temperature is approx. -52.9°C (-63.22°F) or lower, DTC B1412/12 may be output even though the system is normal.
* *2: The A/C amplifier memorizes the DTC of the respective malfunction if it has occurred for the period of time indicated in the brackets.
* *3: For models without an air conditioning system, if this DTC is output, it does not indicate a problem.
