Engine Immobiliser System (w/ Smart Key System)
THEFT DETERRENT / KEYLESS ENTRY: ENGINE IMMOBILISER SYSTEM (w/ Smart Key System): DIAGNOSTIC TROUBLE CODE CHART

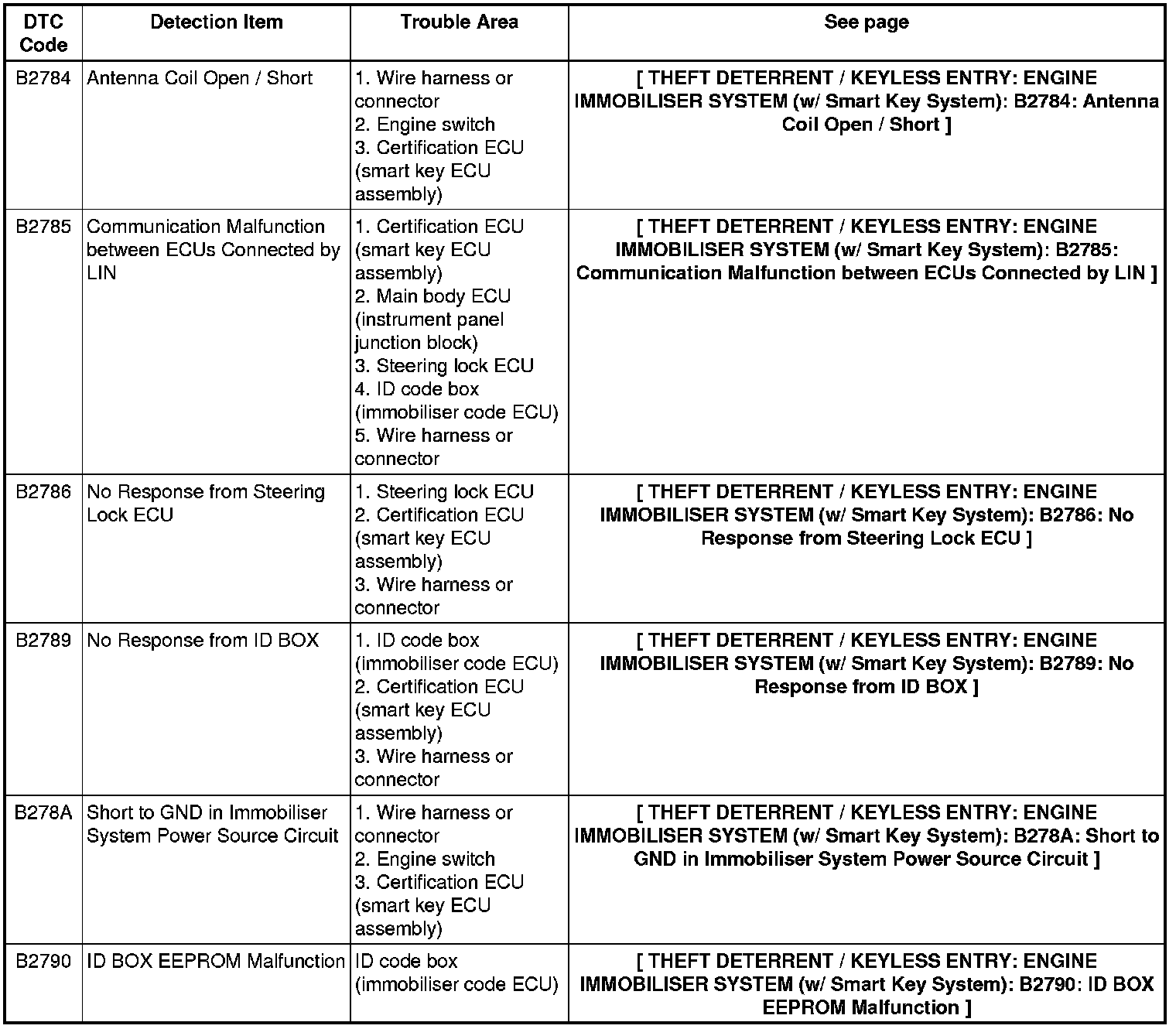

1. CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) DIAGNOSTIC TROUBLE CODE CHART
ECU (Smart Key Assembly)
Certification ECU (Smart Key ECU Assembly):

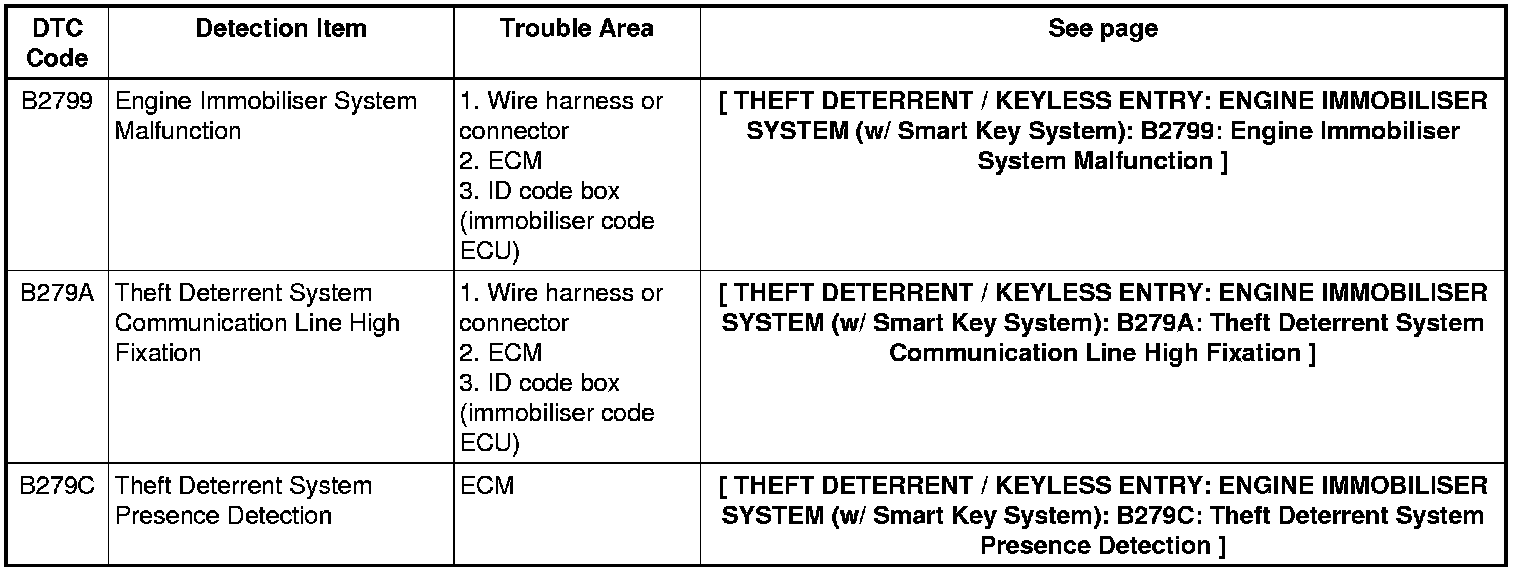

2. ECM DIAGNOSTIC TROUBLE CODE CHART
HINT
The DTCs for the engine immobiliser system are specified above. If other codes are output, check the DTC chart for the SFI system.
ECM
