Navigation System

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: 62-41,62-42: Wrong Disc
62-42 - Disc cannot be Read

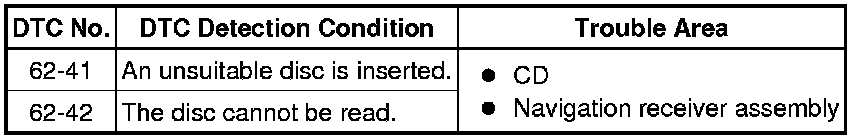

DESCRIPTION





INSPECTION PROCEDURE

HINT
After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK DISC

(a) Check that the disc is not deformed or cracked.





OK:

No deformation or cracks on the disc.

NG -- CHANGE DISC
OK -- Continue to next step.

2. DISC CLEANING

(a) Disc cleaning





(1) If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.

NOTICE:
Do not use a conventional record cleaner or anti-static preservative.

NEXT -- Continue to next step.

3. CLEAR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

4. RECHECK FOR DTC

(a) Recheck for DTCs and check if the same trouble occurs again.

OK:

The same trouble does not occur.

NG -- REPLACE DISC WITH ANOTHER AND RECHECK

OK -- END

5. REPLACE DISC WITH ANOTHER AND RECHECK

(a) Replace the disc with another and recheck.

(1) Replace the disc with another normal one.

(2) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(3) Recheck for DTCs and check if the same trouble occurs again.

OK:

The same trouble does not occur.

NG -- REPLACE NAVIGATION RECEIVER ASSEMBLY Removal

OK -- END
