Removal

THEFT DETERRENT / KEYLESS ENTRY: TRANSPONDER KEY AMPLIFIER: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

2. REMOVE LOWER NO. 2 STEERING WHEEL COVER Removal

3. REMOVE LOWER NO. 3 STEERING WHEEL COVER Removal

4. REMOVE STEERING PAD Removal

5. REMOVE STEERING WHEEL ASSEMBLY Removal

6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal

7. REMOVE LOWER STEERING COLUMN COVER Removal

8. REMOVE UPPER STEERING COLUMN COVER Removal

9. REMOVE TRANSPONDER KEY AMPLIFIER

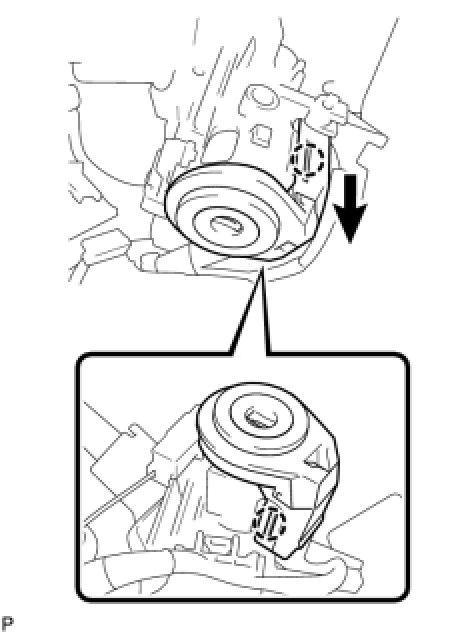

(a) Disengage the 2 claws as shown in the illustration.





(b) Disconnect the connector and remove the transponder key amplifier.
