Reassembly

DOOR / HATCH: HOOD: REASSEMBLY

1. CONNECT WASHER HOSE ASSEMBLY

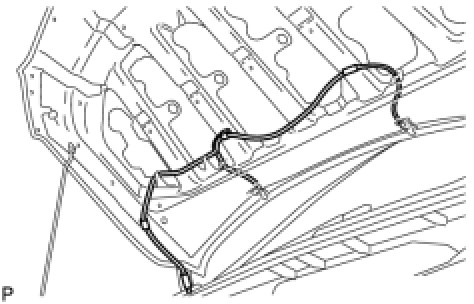

(a) Connect the washer hose assembly.





2. ADJUST WASHER NOZZLE SUB-ASSEMBLY Adjustments

3. INSTALL WASHER NOZZLE SUB-ASSEMBLY Installation

4. INSTALL HOOD TO RADIATOR SUPPORT SEAL

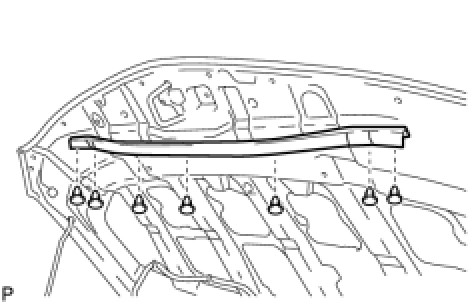

(a) Install the hood to radiator support seal with the 7 clips.





5. INSTALL HOOD INSULATOR (w/ Hood Insulator)

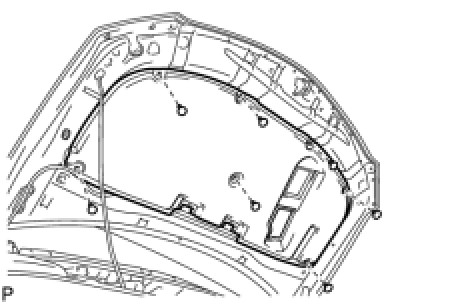

(a) Install the hood insulator with the 7 clips.





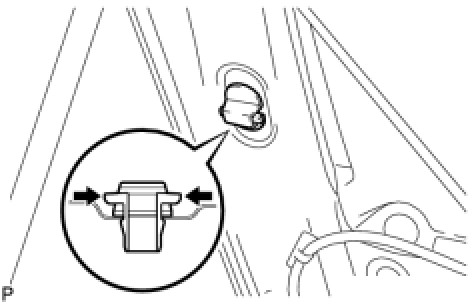

6. INSTALL HOOD PROTECTOR CLIP

(a) Engage the 2 claws and install the hood protector clip.





7. INSPECT WASHER NOZZLE SUB-ASSEMBLY Testing and Inspection
