Disassembly

DOOR / HATCH: LUGGAGE COMPARTMENT DOOR: DISASSEMBLY

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

2. REMOVE REAR SPOILER ASSEMBLY (w/ Rear Spoiler) Removal

3. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY (w/o Smart Key System) Removal

4. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY (w/ Smart Key System) Removal

5. REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY (w/o Smart Key System)

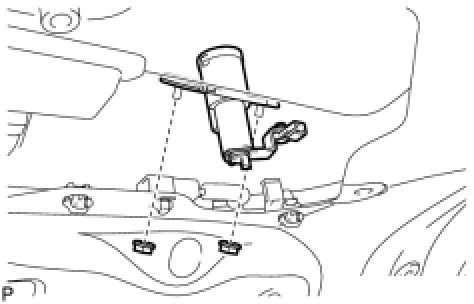

(a) Remove the 2 nuts and the luggage compartment door lock cylinder assembly.





6. REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY (w/ Smart Key System)

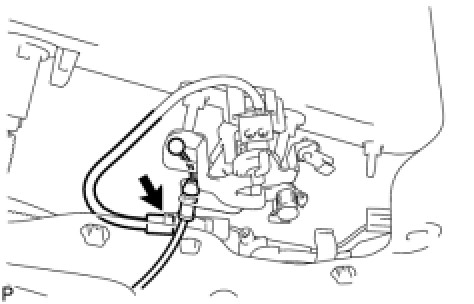

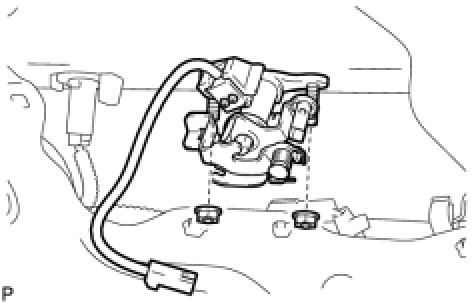

(a) Disconnect the luggage door lock control cable sub-assembly.





(b) Remove the 2 nuts and the luggage compartment door lock cylinder assembly.





7. REMOVE LUGGAGE COMPARTMENT SIDE COVER LH Removal

8. REMOVE LUGGAGE COMPARTMENT SIDE COVER RH

HINT
Use the same procedure for the RH side and LH side.

9. REMOVE REAR LIGHT ASSEMBLY LH Removal

10. REMOVE REAR LIGHT ASSEMBLY RH

HINT
Use the same procedure for the RH side and LH side.

11. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

12. REMOVE LUGGAGE DOOR OPENING SWITCH ASSEMBLY (w/ Smart Key System) Removal

13. REMOVE LICENSE PLATE LIGHT ASSEMBLY Removal
