Removal

THEFT DETERRENT / KEYLESS ENTRY: ENTRY LOCK AND UNLOCK SWITCH: REMOVAL

1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL Disassembly

2. REMOVE FRONT ARMREST UPPER BASE PANEL Disassembly

3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY Disassembly

4. REMOVE FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY Disassembly

5. REMOVE FRONT DOOR TRIM BRACKET Disassembly

6. REMOVE FRONT DOOR SERVICE HOLE COVER Disassembly

7. REMOVE FRONT DOOR OUTSIDE HANDLE COVER Disassembly

8. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY

(a) Disconnect the connector.

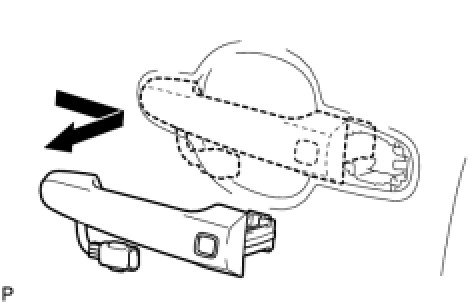

(b) Remove the front door outside handle assembly as shown in the illustration.
