Wireless Door Lock Control System (w/o Smart Key System)

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM (w/o Smart Key System): DTC CHECK / CLEAR

1. DTC CHECK/CLEAR (USING TECHSTREAM)

(a) DTC check

(1) Connect the Techstream to the DLC3.

(2) Turn the ignition switch to ON.

(3) Read DTCs on the Techstream screen.

(b) DTC clear

(1) Connect the Techstream to the DLC3.

(2) Turn the ignition switch to ON.

(3) Clear the DTCs following the prompts on the Techstream screen.

HINT
The Techstream has a SNAPSHOT function which records the monitored data.

Refer to the Techstream operator's manual for further details.

2. SELF-DIAGNOSTIC MODE (OPERATING IGNITION KEY CYLINDER)

(a) Switch to self-diagnostic mode.

(1) Insert the key into the ignition key cylinder and remove it.

(2) Within 5 seconds after the key is removed, insert it into the ignition key cylinder and then turn the ignition switch to ON then OFF 1 time. (End in OFF)

(3) Within 30 seconds of turning the ignition switch off, perform the following 9 times: Turn the ignition switch to ON then off. (End in OFF)

HINT
Turning the ignition switch to ON after the procedure above has been completed will end the self-diagnostic mode.

NOTICE:
If the system fails to enter self-diagnostic mode, the system will return to normal mode.

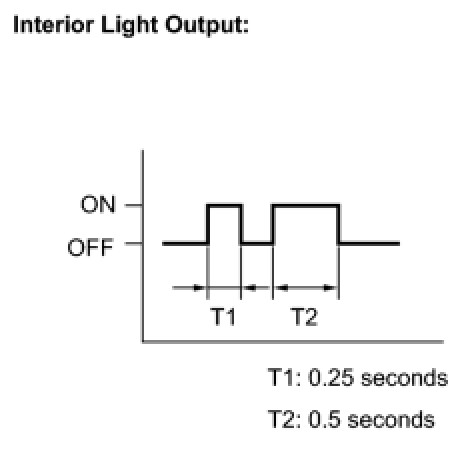

(b) Check that the system has switched to self-diagnostic mode by checking the interior light output pattern.

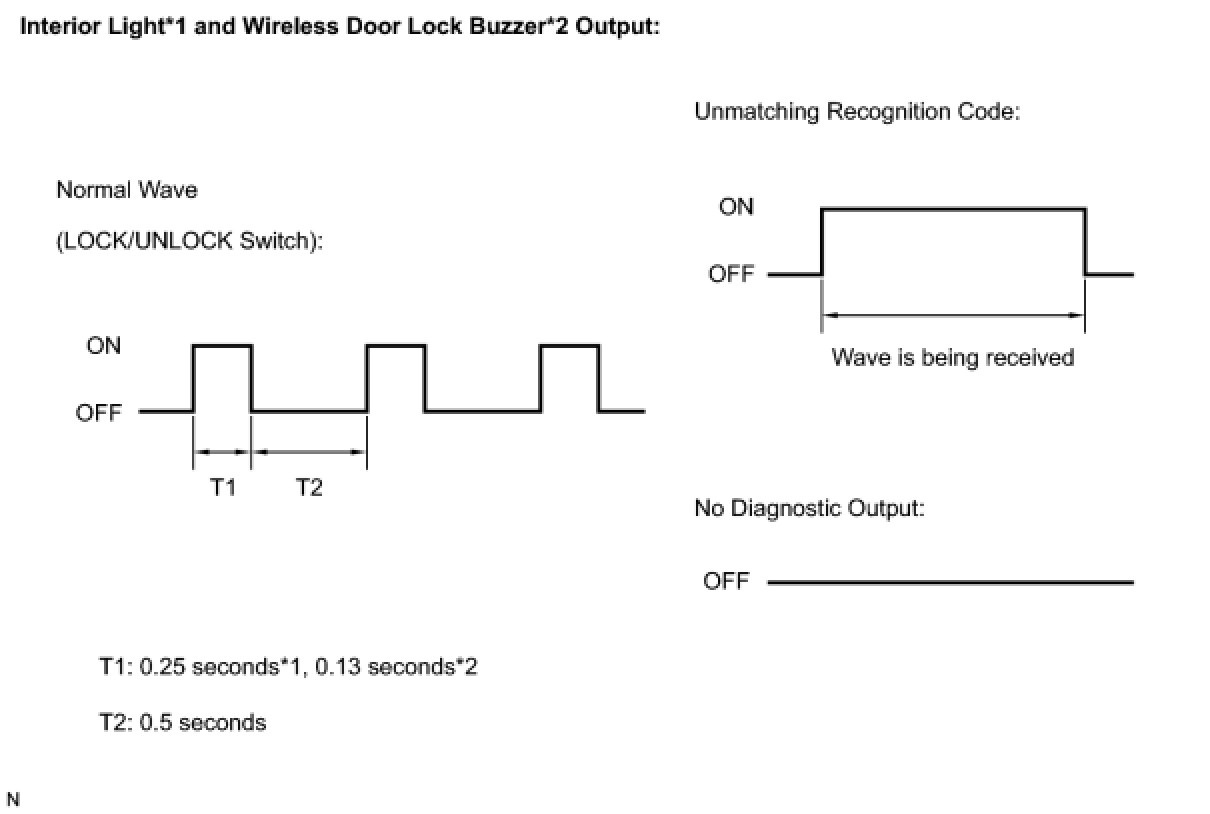

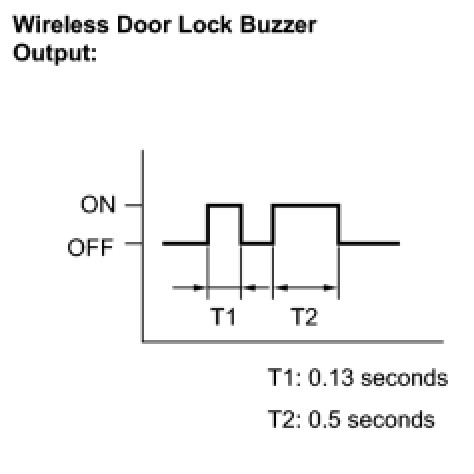

(d) Check the diagnostic outputs when the door control transmitter switch is held down. The diagnostic outputs can be checked by the interior light and wireless door lock buzzer patterns.

3. SELF-DIAGNOSTIC MODE (USING TECHSTREAM)

(a) Switch to self-diagnostic mode.

(1) Connect the Techstream to the DLC3.

(2) Turn the ignition switch to ON and turn the Techstream main switch on.

HINT
Refer to the Techstream operator's manual for further details.
