Unlock Warning Switch

DOOR LOCK: UNLOCK WARNING SWITCH: INSPECTION

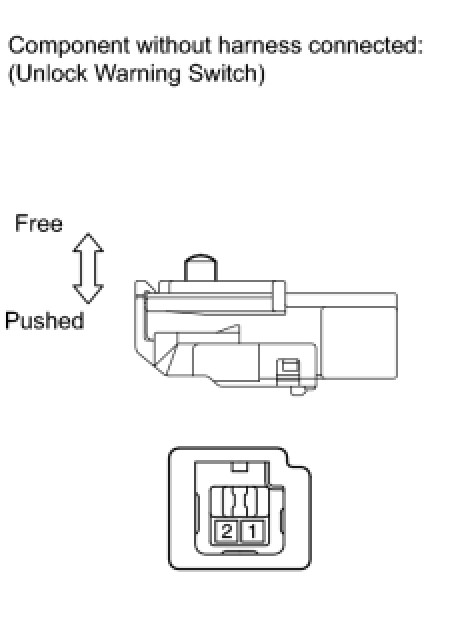

1. INSPECT UNLOCK WARNING SWITCH ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

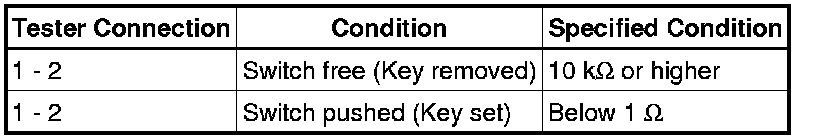

Standard Resistance:





(b) If the result is not as specified, replace the unlock warning switch assembly.
