Programming and Relearning

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH TECHSTREAM

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.
(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Customize Setting / Door Lock.

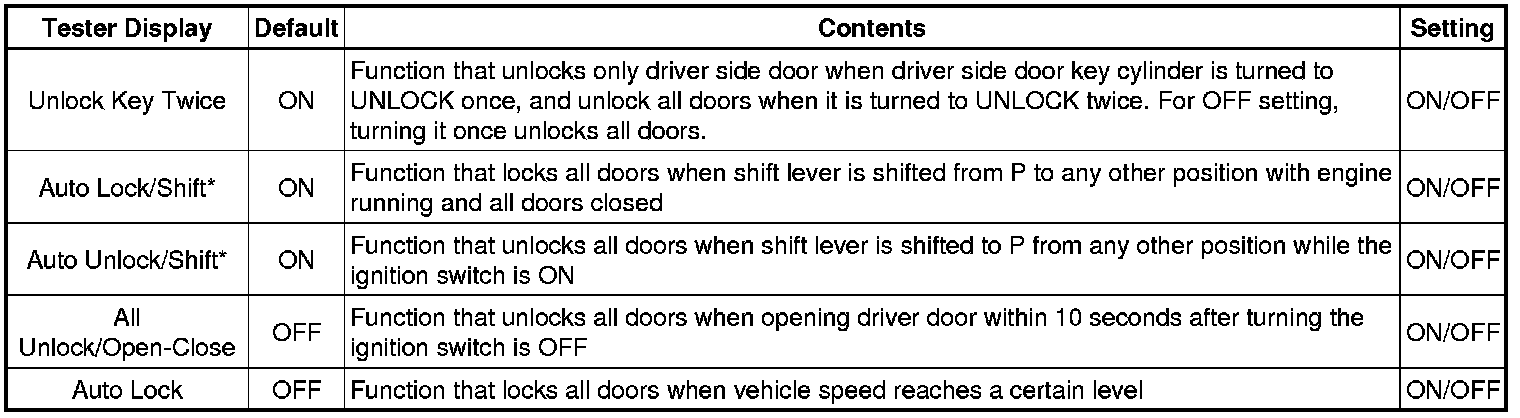

(e) Select the setting by referring to the table below.

Main Body:

* *: for A/T
