Operation Check

SLIDING ROOF / CONVERTIBLE: SLIDING ROOF SYSTEM: OPERATION CHECK

1. CHECK AUTO OPERATION

(a) Turn the ignition switch to ON.

(b) When the roof glass is fully closed, press the SLIDE OPEN switch for 0.3 seconds or more. Check that the roof glass automatically slides until comfort stop position. Press the SLIDE OPEN switch for 0.3 seconds or more again. Check that the roof glass automatically slides until it is fully opened.

(c) When the roof glass is fully open, press the SLIDE CLOSE switch for 0.3 seconds or more. Check that the roof glass automatically slides until it is fully closed.

(d) When the roof glass is fully closed, press the TILT UP switch for 0.3 seconds or more. Check that the roof glass automatically tilts until it is fully tilted upward.

(e) When the roof glass is fully open, press the TILT DOWN switch for 0.3 seconds or more. Check that the roof glass automatically tilts until it is fully tilted downward.

(f) When the AUTO function is operating, check that pressing any sliding roof switch stops the roof glass operation.

HINT
When pressing the switch for 0.3 seconds or less, the roof glass moves but the AUTO function does not operate.

2. CHECK SLIDING ROOF OPERATION AFTER IGNITION SWITCH IS TURNED OFF

(a) Turn the ignition switch from on to off, and check that the sliding roof operates. Then open and close the driver side door once, and check that the sliding roof does not operate.

(b) Turn the ignition switch from on to off and wait for approximately 45 seconds. Check that the sliding roof does not operate.

(c) Operate the AUTO (SLIDE OPEN/CLOSE or TILT UP/DOWN) function. While the roof glass is in motion, turn the ignition switch from on to off. Check that the AUTO function continues until the roof glass opens or closes fully.

3. CHECK JAM PROTECTION FUNCTION

CAUTION:
* Do not use a part of your body, for example, your hand, to check the jam protection.
* Do not allow anything to become caught in the sliding roof by accident in this procedure.
* Perform the inspection from the inside of the vehicle.
NOTICE:
* Do not use hard objects such as a hammer, to avoid damaging the roof.
* If the jam protection does not operate, reset the sliding roof drive gear (motor).

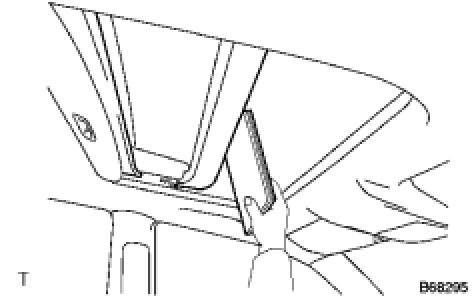

(a) When the sliding roof auto function is operating and a foreign object is caught between the vehicle body and glass, check that the roof glass opens a distance of 189 mm (7.44 in.) from the point of contact with the object, or opens fully if an opening distance of 189 mm (7.44 in.) is not available.

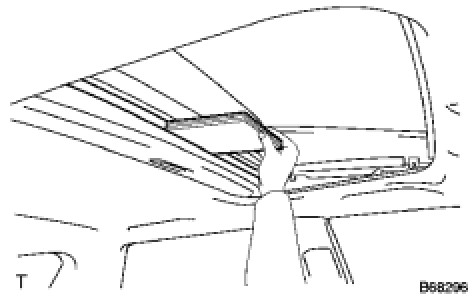

(b) When the TILT UP/DOWN function is operating, and a foreign object is caught between the vehicle body and the roof glass, check that the sliding roof tilts up fully.
