Seats: Description and Operation

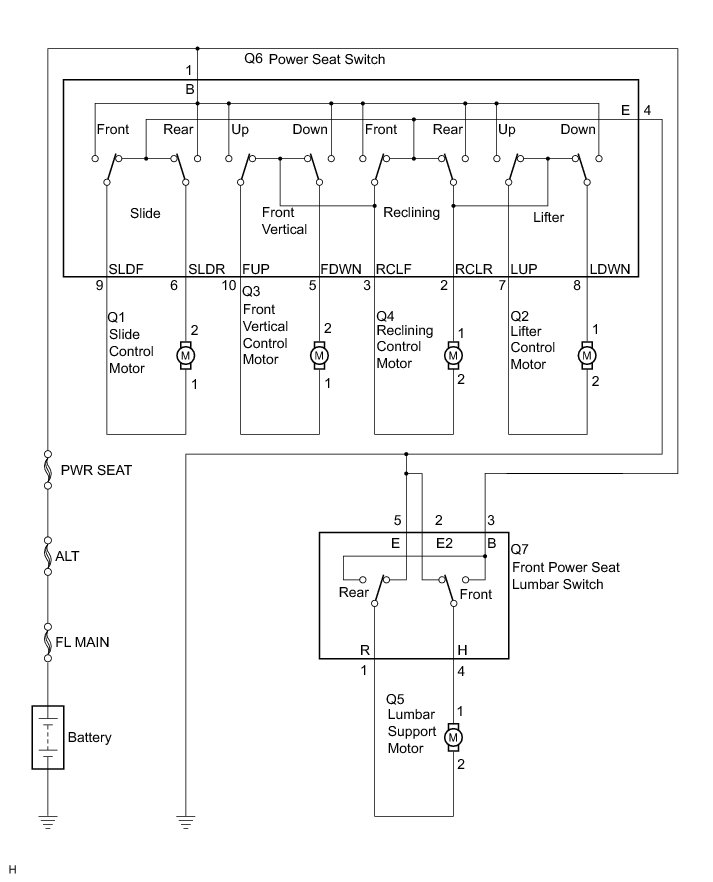

SEAT: FRONT POWER SEAT CONTROL SYSTEM: SYSTEM DIAGRAM






SEAT: FRONT POWER SEAT CONTROL SYSTEM: SYSTEM DESCRIPTION

1. FRONT POWER SEAT CONTROL SYSTEM DESCRIPTION

The driver seat is equipped with slide, reclining, lifter, front vertical and lumbar support adjustment functions.

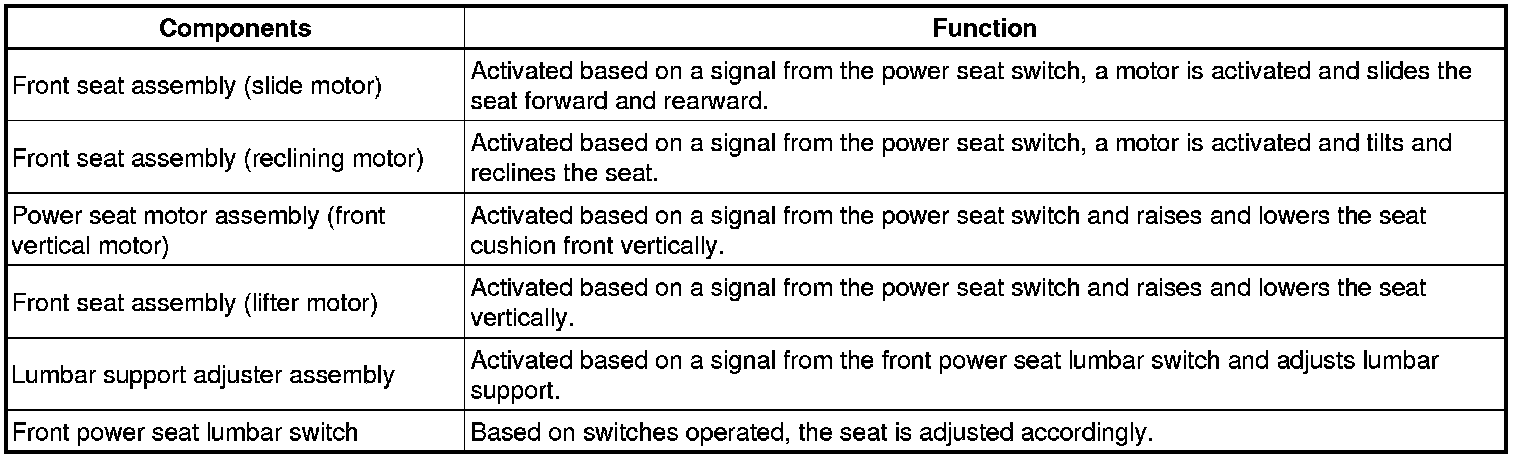

2. FUNCTION OF MAIN COMPONENTS

The following functions are available:
