Removal

SEAT: LUMBAR SWITCH: REMOVAL

1. REMOVE FRONT SEAT HEADREST ASSEMBLY

2. REMOVE OUTER SEAT TRACK COVER Removal

3. REMOVE INNER SEAT TRACK COVER Removal

4. REMOVE FRONT SEAT ASSEMBLY Removal

5. REMOVE RECLINING POWER SEAT SWITCH KNOB Disassembly

6. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB Disassembly

7. REMOVE FRONT SEAT CUSHION SHIELD ASSEMBLY Disassembly

8. REMOVE LUMBAR SWITCH

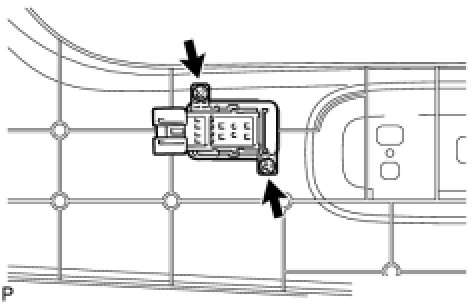

(a) Remove the 2 screws and remove the lumbar switch.
