Wire and Wire In Instrument Panel [TMC Made]
Wire and Wire In Instrument Panel [TMC Made]
AE1-IE3:

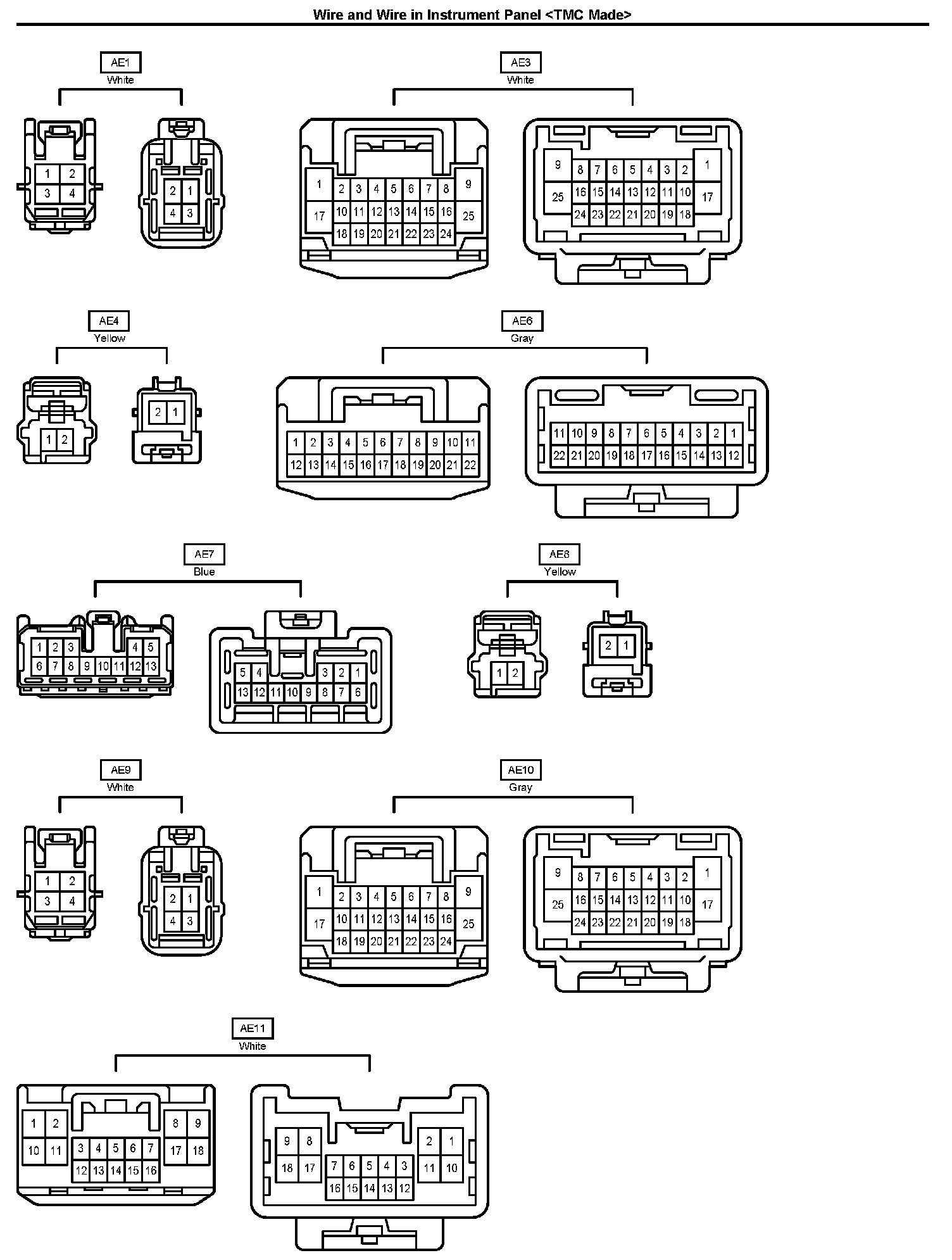

AE1-AE11:
AL1-EL4:
EM1-HE2:

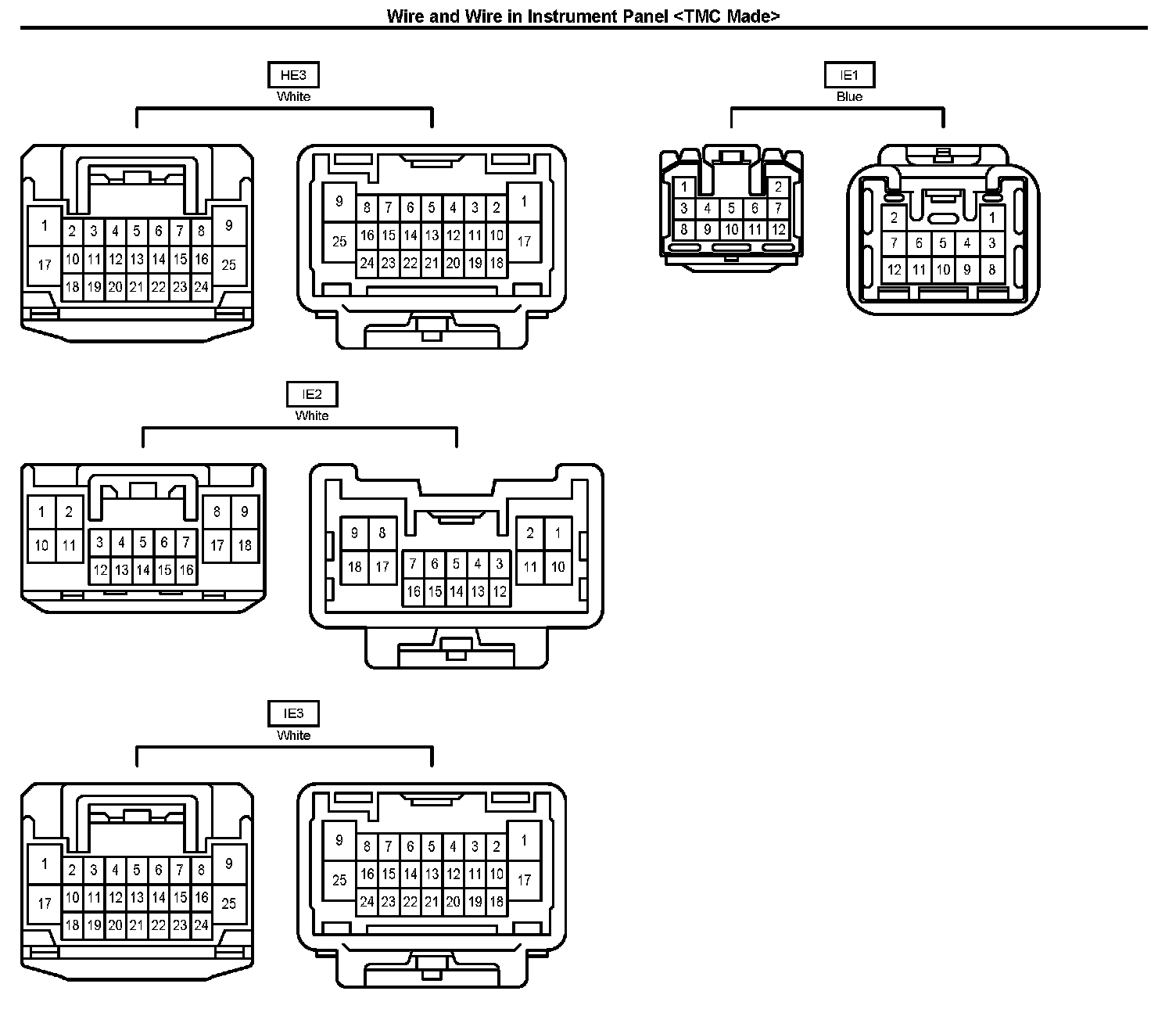

HE3-IE3:
