Multiplex Communication System [CAN, Except TMC Made]

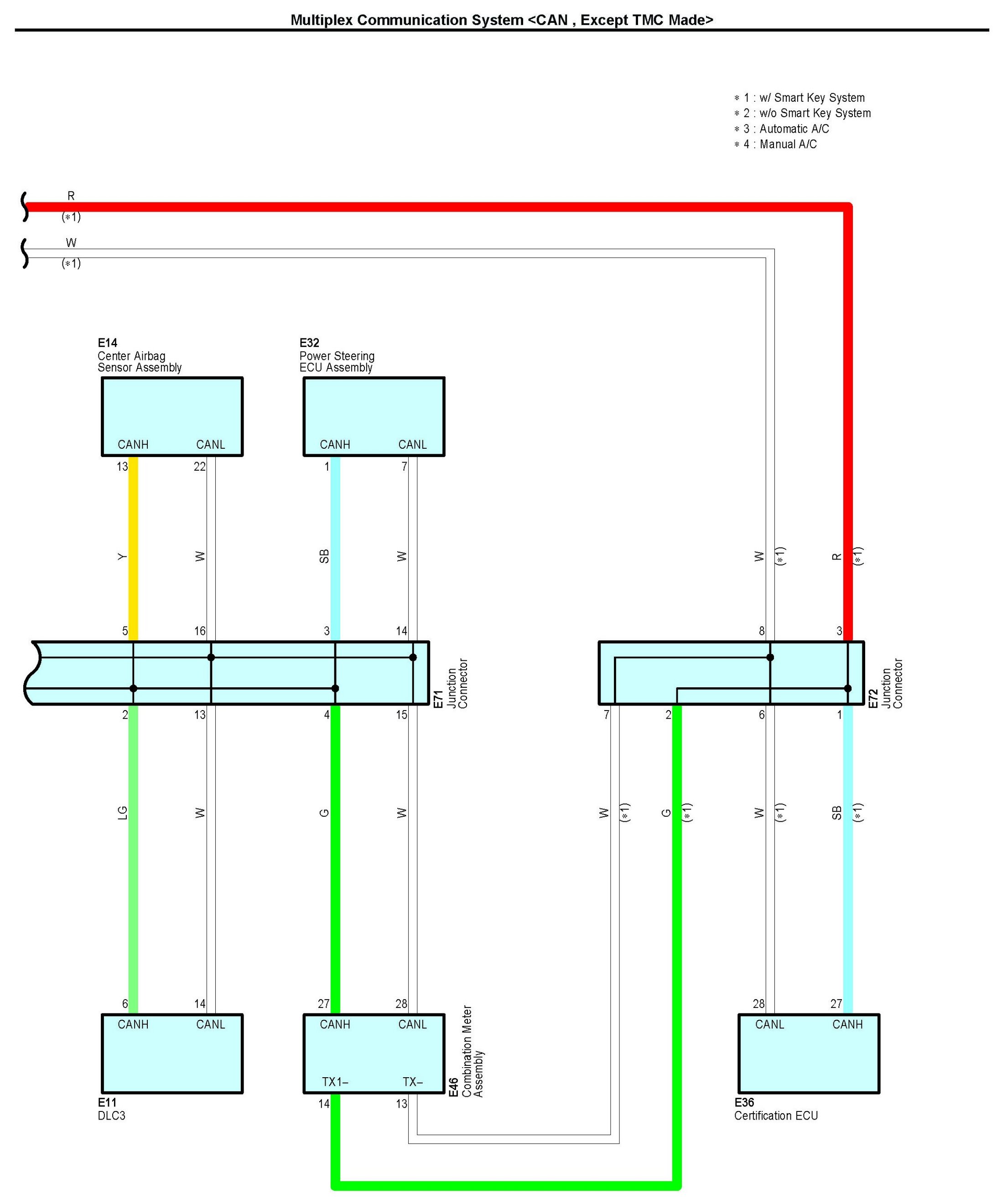

Multiplex Communication System [CAN, Except TMC Made] Part 1:

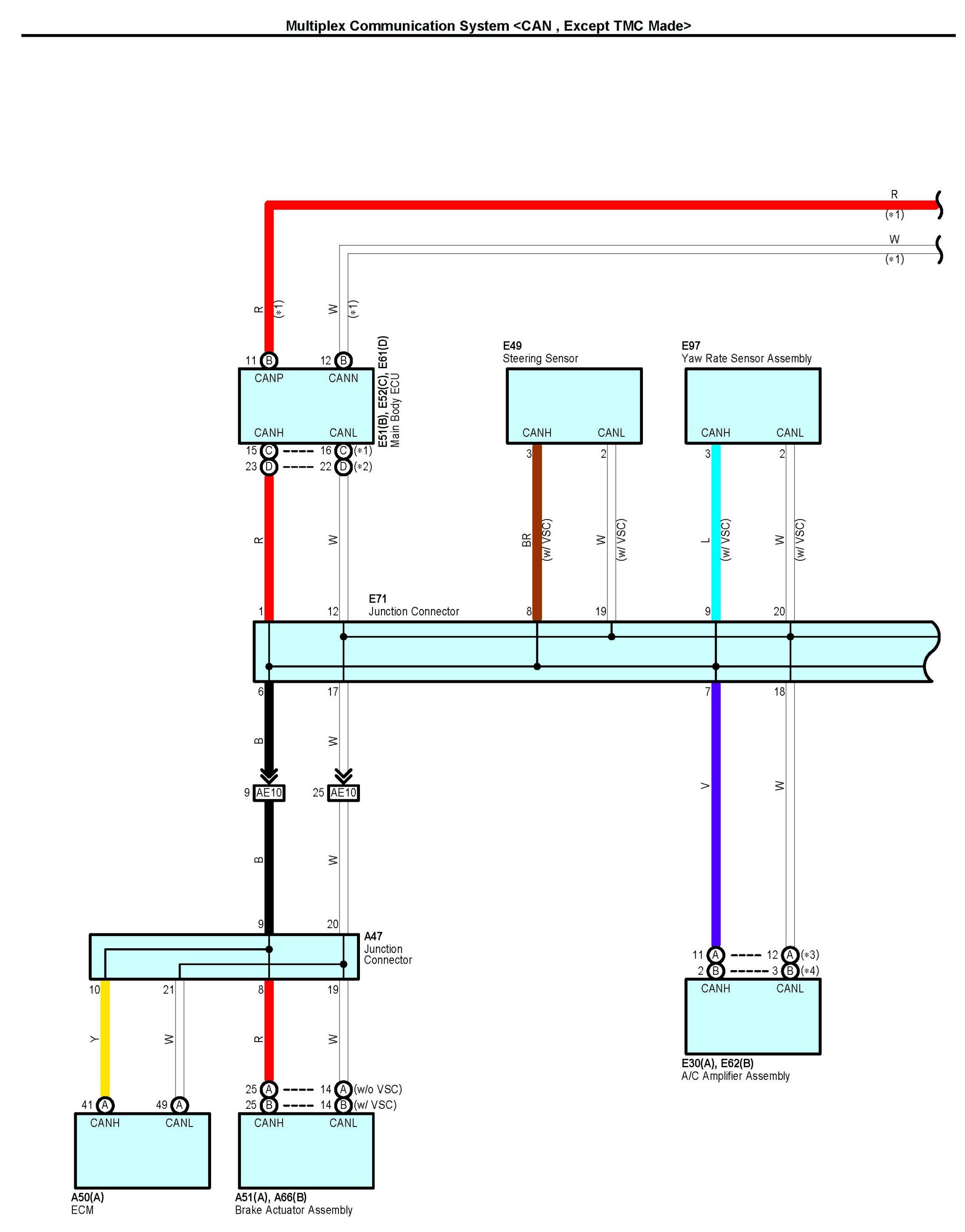

Multiplex Communication System [CAN, Except TMC Made] Part 2:

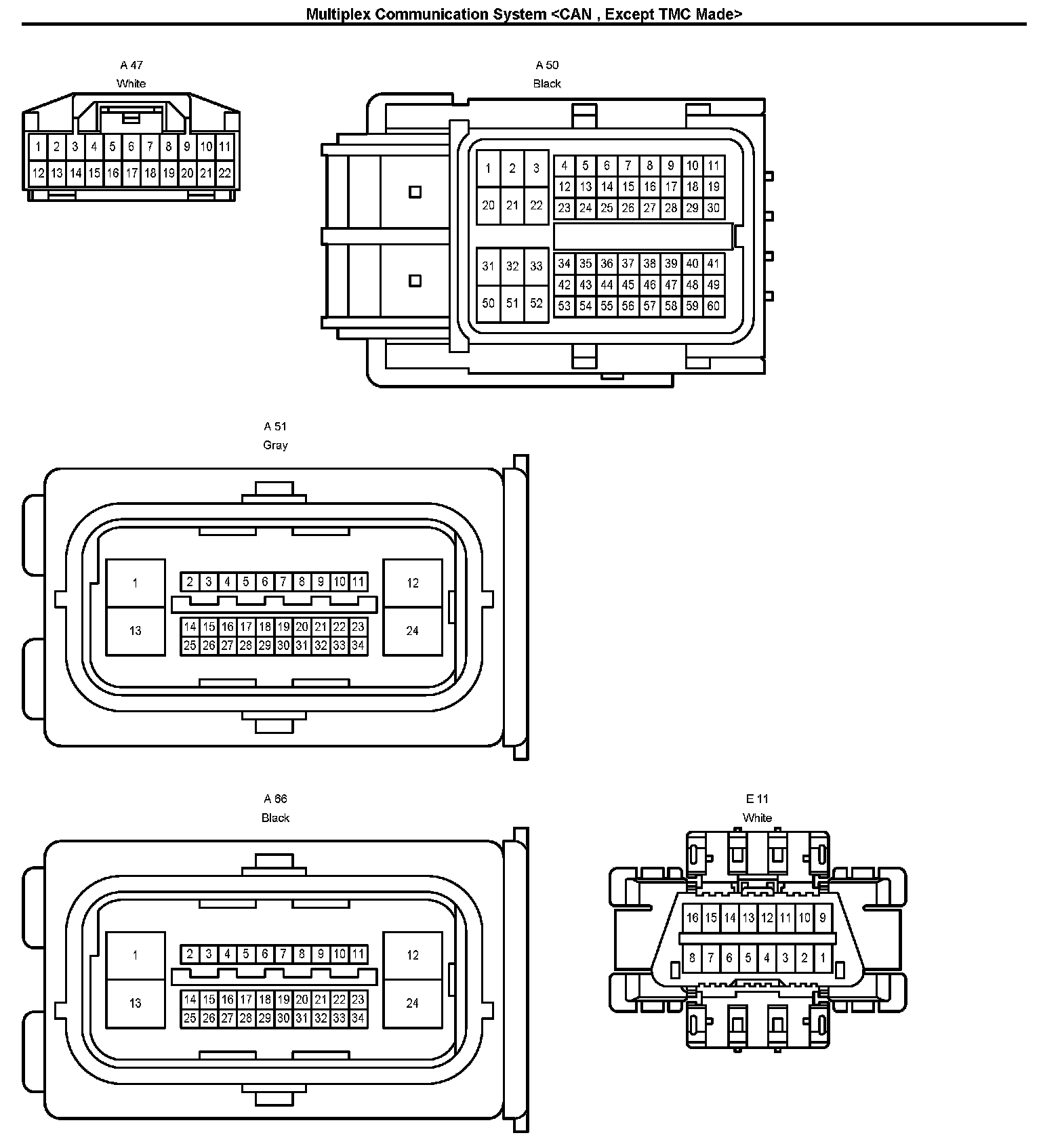

Connectors Part 1:

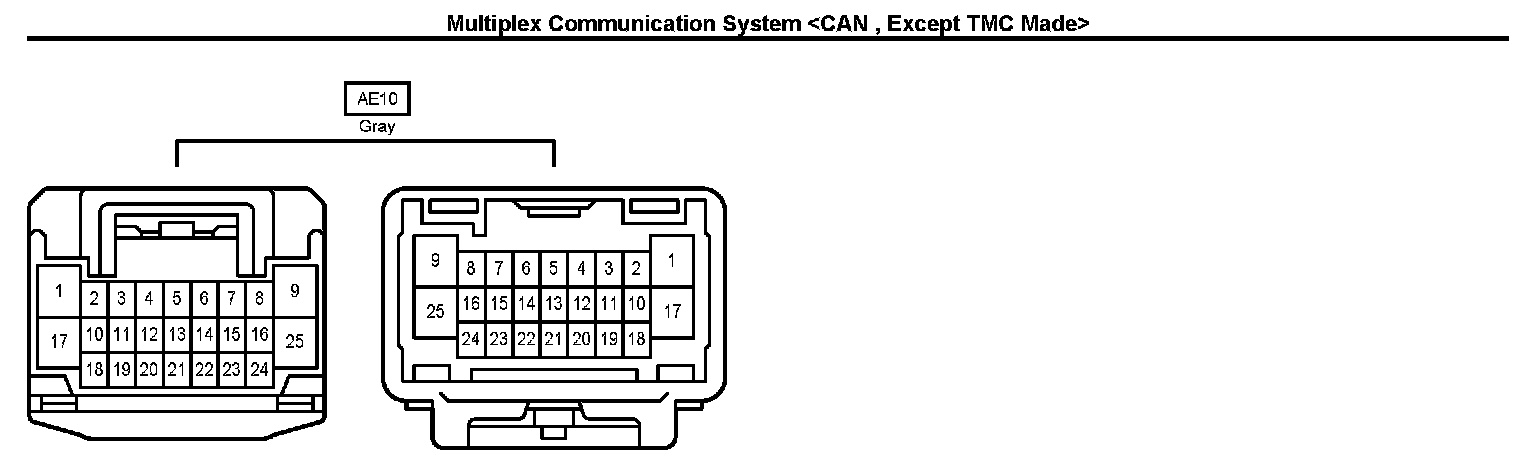

Connectors Part 2:

Connectors Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
