IG Power Source Circuit

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System): IG Power Source Circuit
- IG Power Source Circuit

DESCRIPTION

The main power source is supplied to the A/C amplifier when the ignition switch is ON.

The power source is used for operating the A/C amplifier and servo motor, etc.

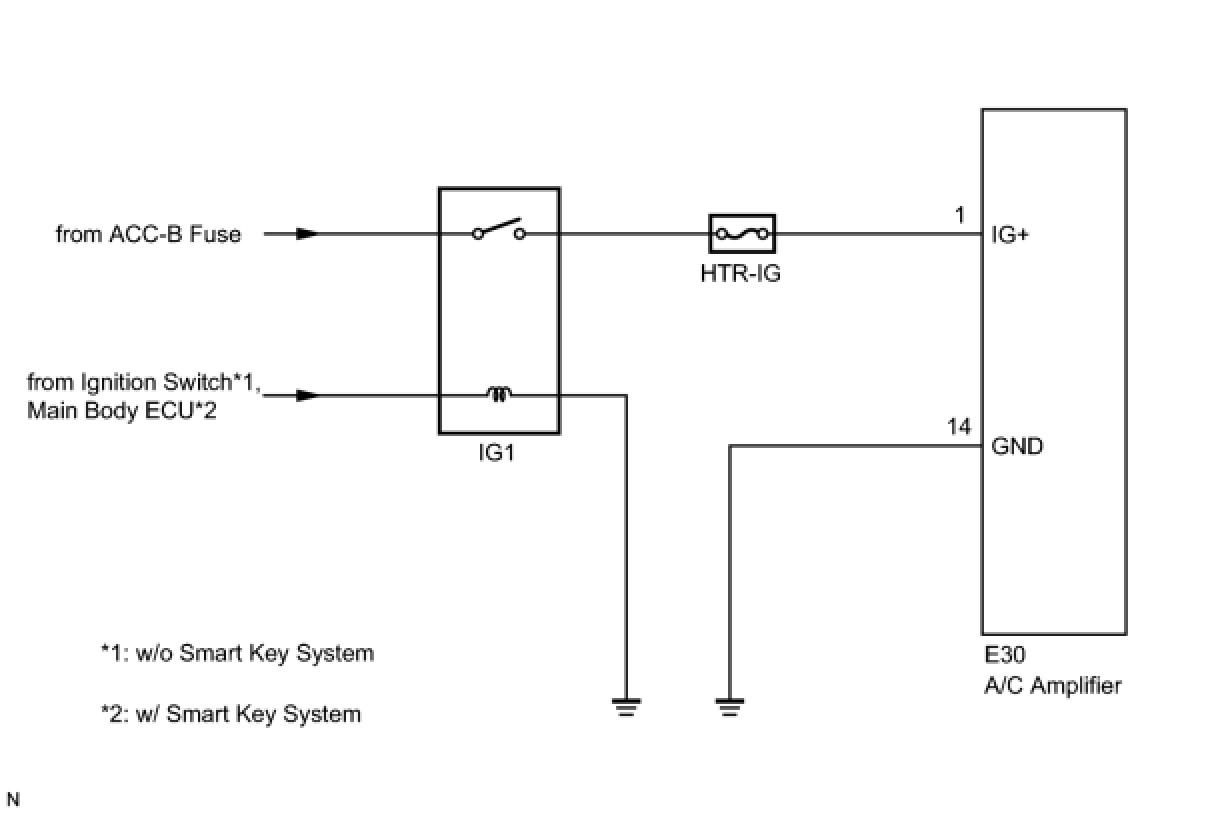

WIRING DIAGRAM





INSPECTION PROCEDURE

HINT
Start the engine before inspection. Check the IG1 relay or battery if the engine does not start.

PROCEDURE

1. INSPECT FUSE (HTR-IG)

(a) Remove the HTR-IG fuse from the instrument panel junction block.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPLACE FUSE (HTR-IG)
OK -- Continue to next step.

2. INSPECT AIR CONDITIONING AMPLIFIER (IG+ - GND)

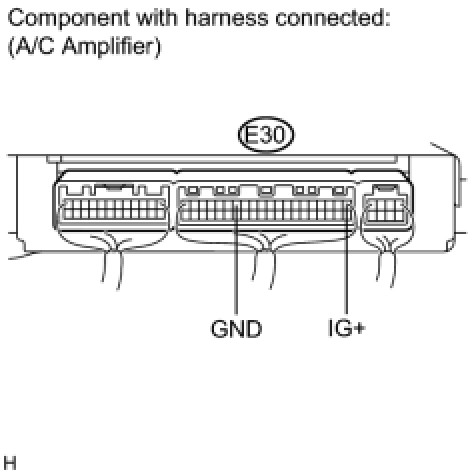

(a) Remove the A/C amplifier with its connectors still connected.





(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the table below.

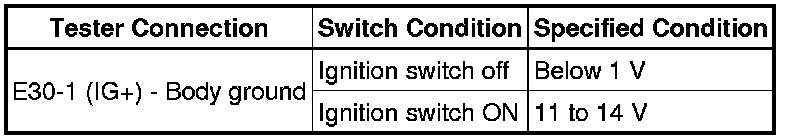

Standard Voltage:





NG -- CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - BATTERY)

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE Air Conditioning System (For Automatic Air Conditioning System)

3. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - BATTERY)

(a) Disconnect the connector from the A/C amplifier.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - BODY GROUND)

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE AIR CONDITIONING AMPLIFIER Removal
