Initialization





METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: INITIALIZATION

1. OIL MAINTENANCE REMINDER RESET PROCEDURE

HINT
* The TRIP meter reset knob is located below the speedometer.
* This reset operation is required only for U.S.A.
(a) Turn the ignition switch to ON.

(b) Press the ODO/TRIP switch until the TRIP A meter appears.

(c) Turn the ignition switch off.

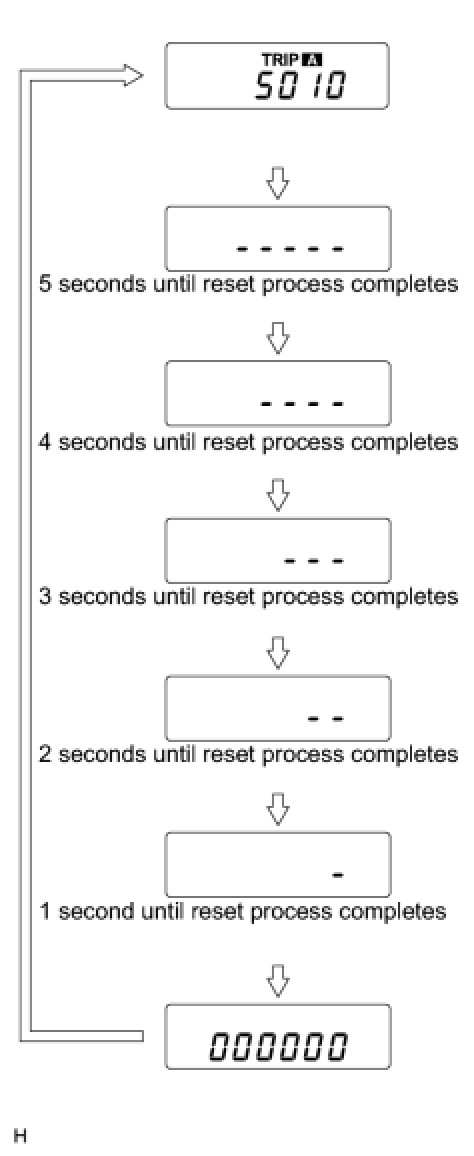

(d) Turn the ignition switch to ON while pressing and holding the TRIP meter reset knob. Hold the TRIP meter reset knob until the following conditions are met and 5 seconds have passed.





HINT
When oil maintenance reminder light turns off, the reset is complete.
