Removal

LIGHTING (EXT): HEADLIGHT ASSEMBLY: REMOVAL

1. REMOVE RADIATOR GRILLE PROTECTOR Removal

2. REMOVE NO. 4 ENGINE UNDER COVER (for 2AZ-FE) Removal

3. REMOVE FRONT BUMPER ASSEMBLY Removal

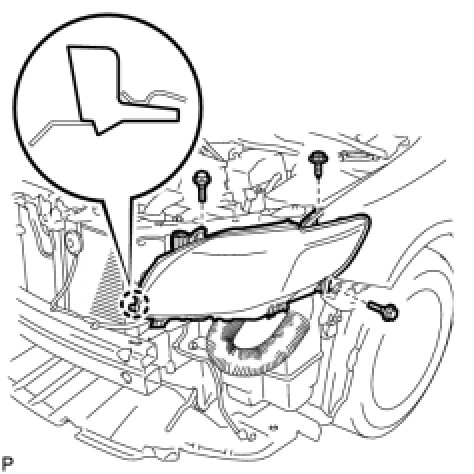

4. REMOVE HEADLIGHT ASSEMBLY

(a) Remove the 2 bolts and screw.





(b) Disengage the claw.

(c) Disconnect the connectors and remove the headlight assembly.
