Operation Check

LIGHTING (INT): LIGHTING SYSTEM: OPERATION CHECK

1. INSPECT ILLUMINATED ENTRY SYSTEM OPERATION

NOTICE:
Perform this inspection with the customize parameter at the initial setting.

HINT
The illuminated entry system illuminates the lights below.

* Personal light*1
* Room light
* Engine switch illumination*2

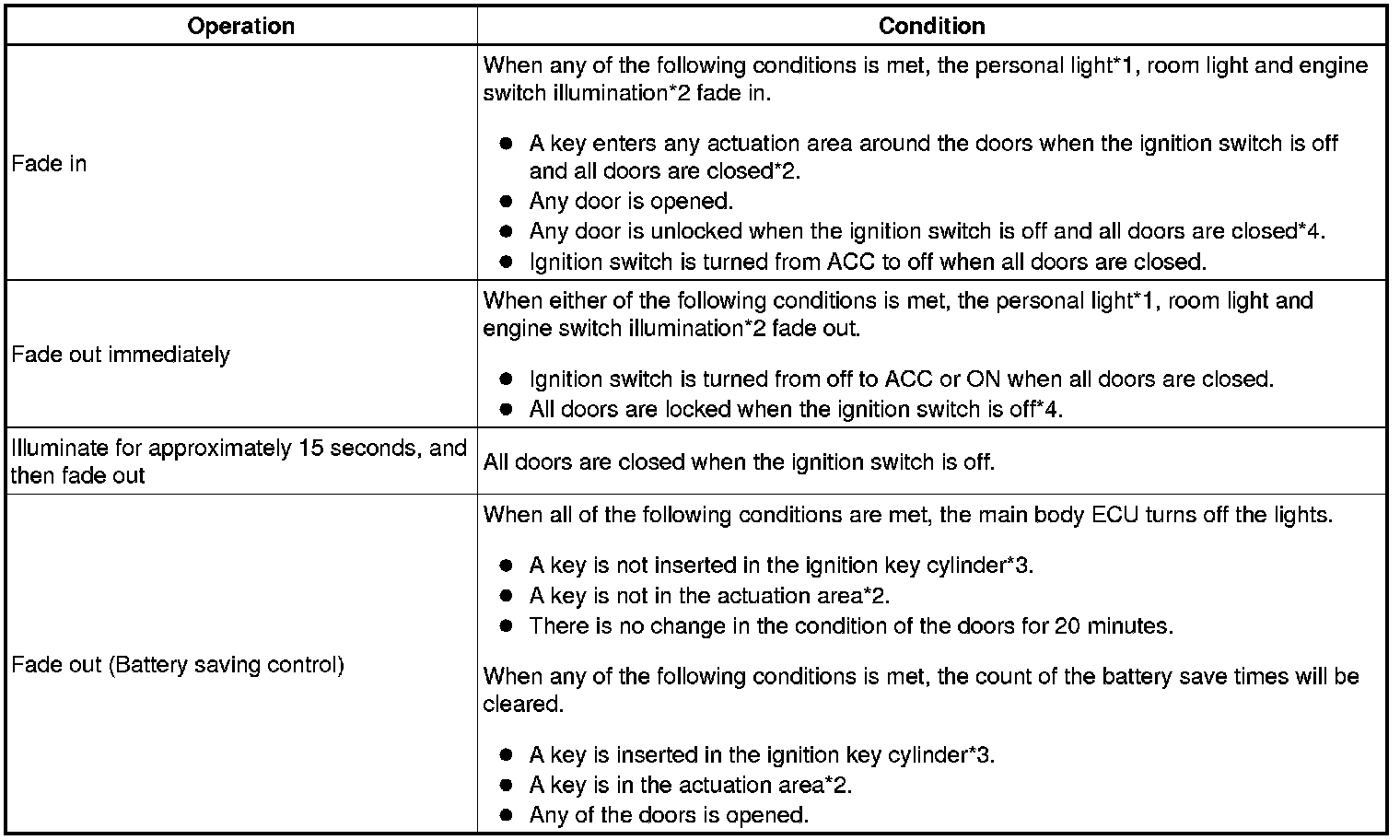

(a) The operation and condition of this control are described below.





HINT
* *1: w/ Sliding Roof
* *2: w/ Smart Key System
* *3: w/o Smart Key System
* *4: w/ Power Door Lock Control System
