Programming and Relearning





LIGHTING (INT): LIGHTING SYSTEM: CUSTOMIZE PARAMETERS

HINT
The following items can be customized.

NOTICE:
* Before attempting to customize vehicle settings, confirm whether it is possible to make the change that the customer has requested.
* Be sure to record the current value before customizing.
* Before troubleshooting the lighting system, pay attention because there is a possibility that a function has been disabled by customizing. If the wireless operation does not function, check that the wireless operation has not been disabled by customizing, then perform troubleshooting.

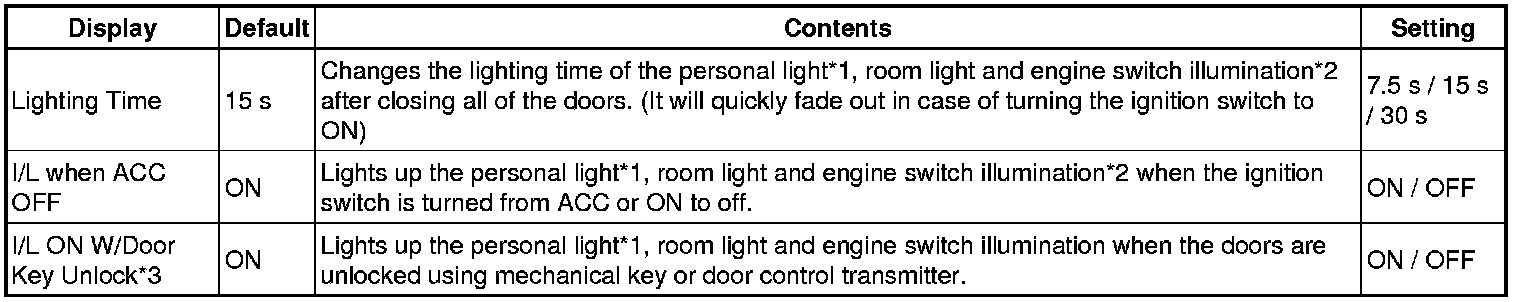

Illuminated Entry:






HINT
* *1: w/ Sliding Roof
* *2: w/ Smart Key System
* *2: w/ Power Door Lock Control System
