Interior Lighting System
LIGHTING (INT): LIGHTING SYSTEM: PROBLEM SYMPTOMS TABLE
HINT
Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.

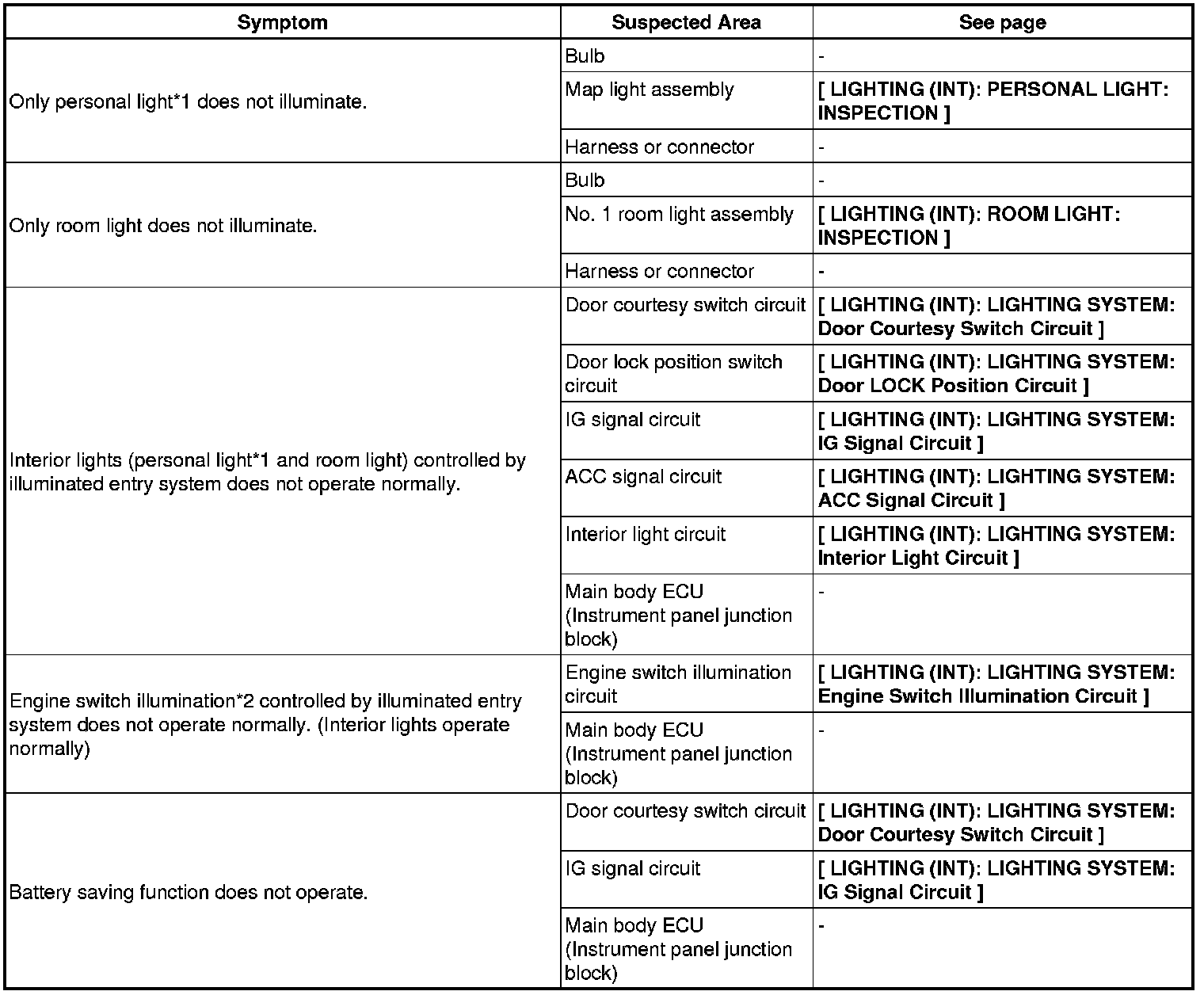

Illuminated Entry System:

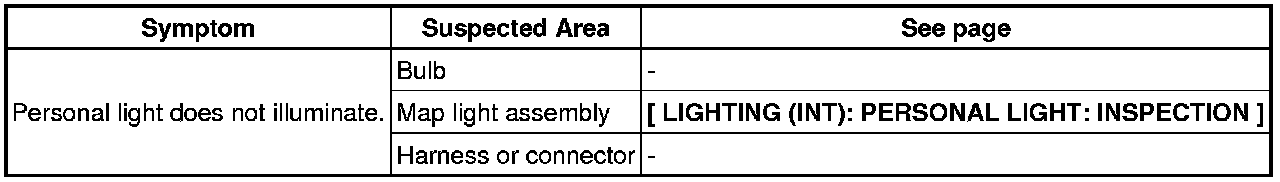

Personal Light:

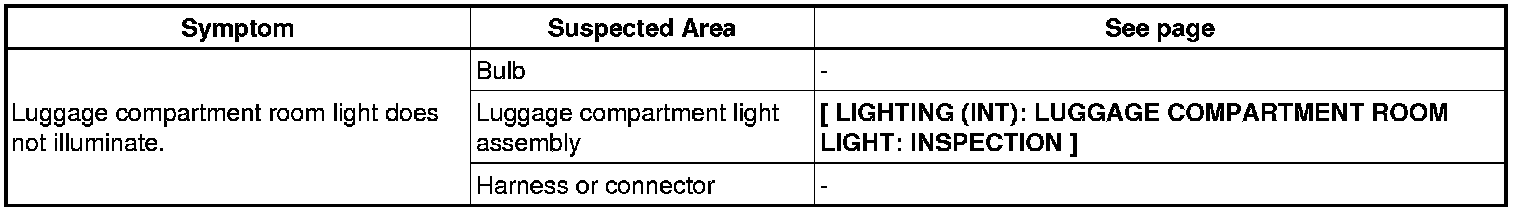

Luggage Compartment Room Light:
HINT
* *1: w/ Sliding Roof
* *2: w/ Smart Key System
