Turn Signals: Testing and Inspection

LIGHTING (EXT): REAR COMBINATION LIGHT ASSEMBLY: ON-VEHICLE INSPECTION

1. INSPECT REAR COMBINATION LIGHT ASSEMBLY

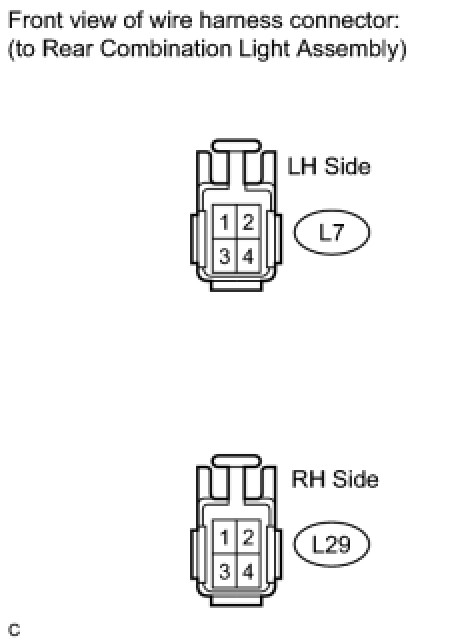

(a) Disconnect the connector from the rear combination light assembly.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

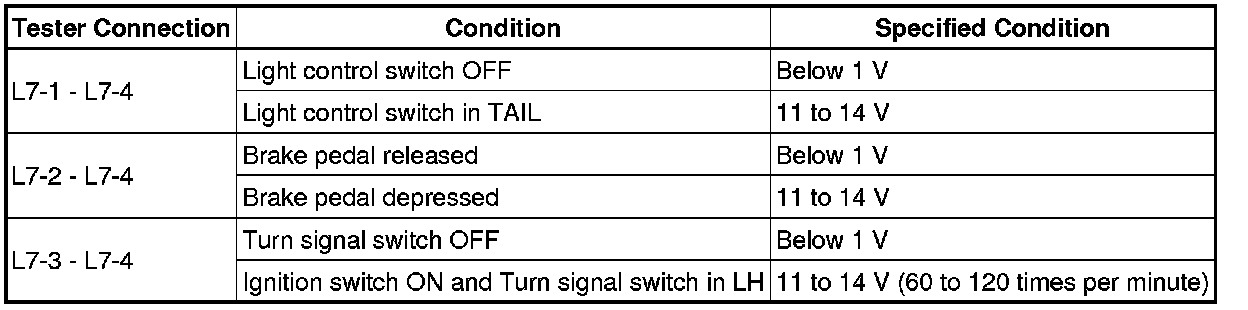

LH Side

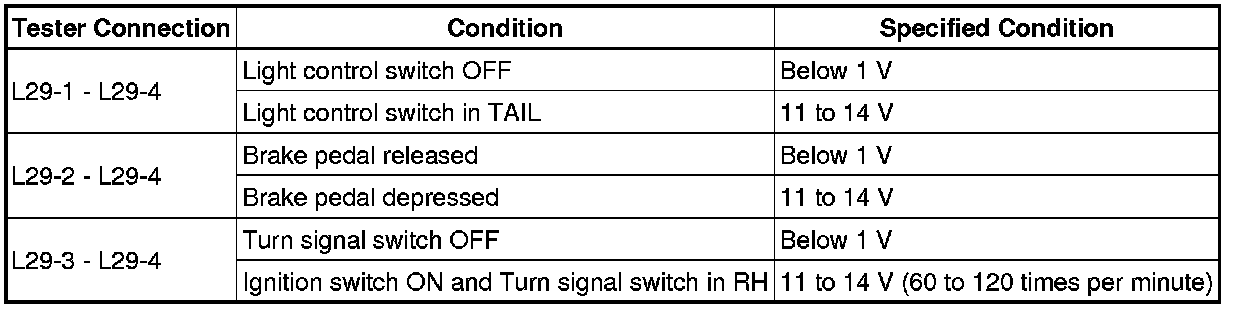

RH Side






(c) If the result is not as specified, there is a malfunction on the wire harness side.
