Relay Box: Locations

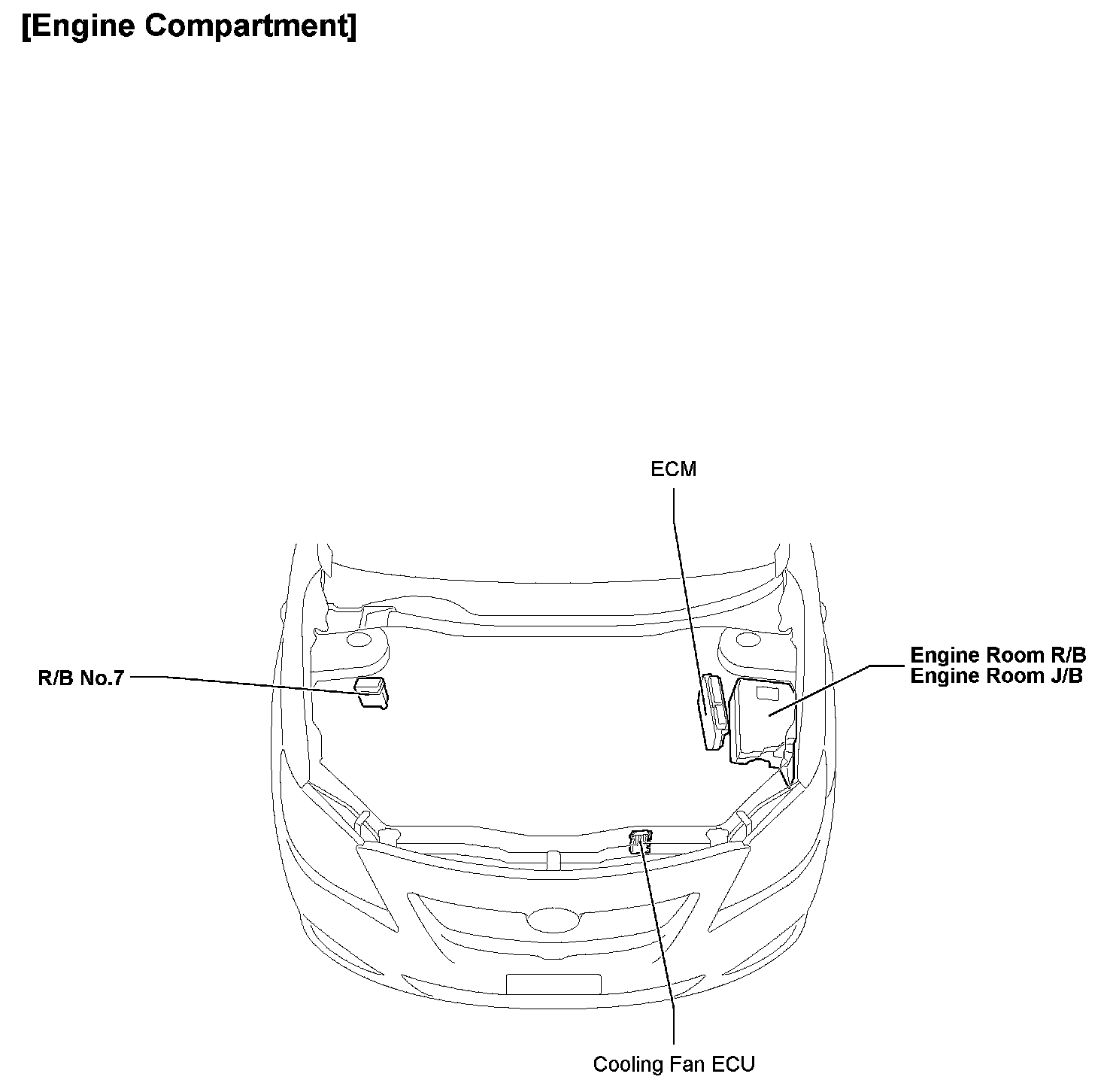

Engine Compartment:

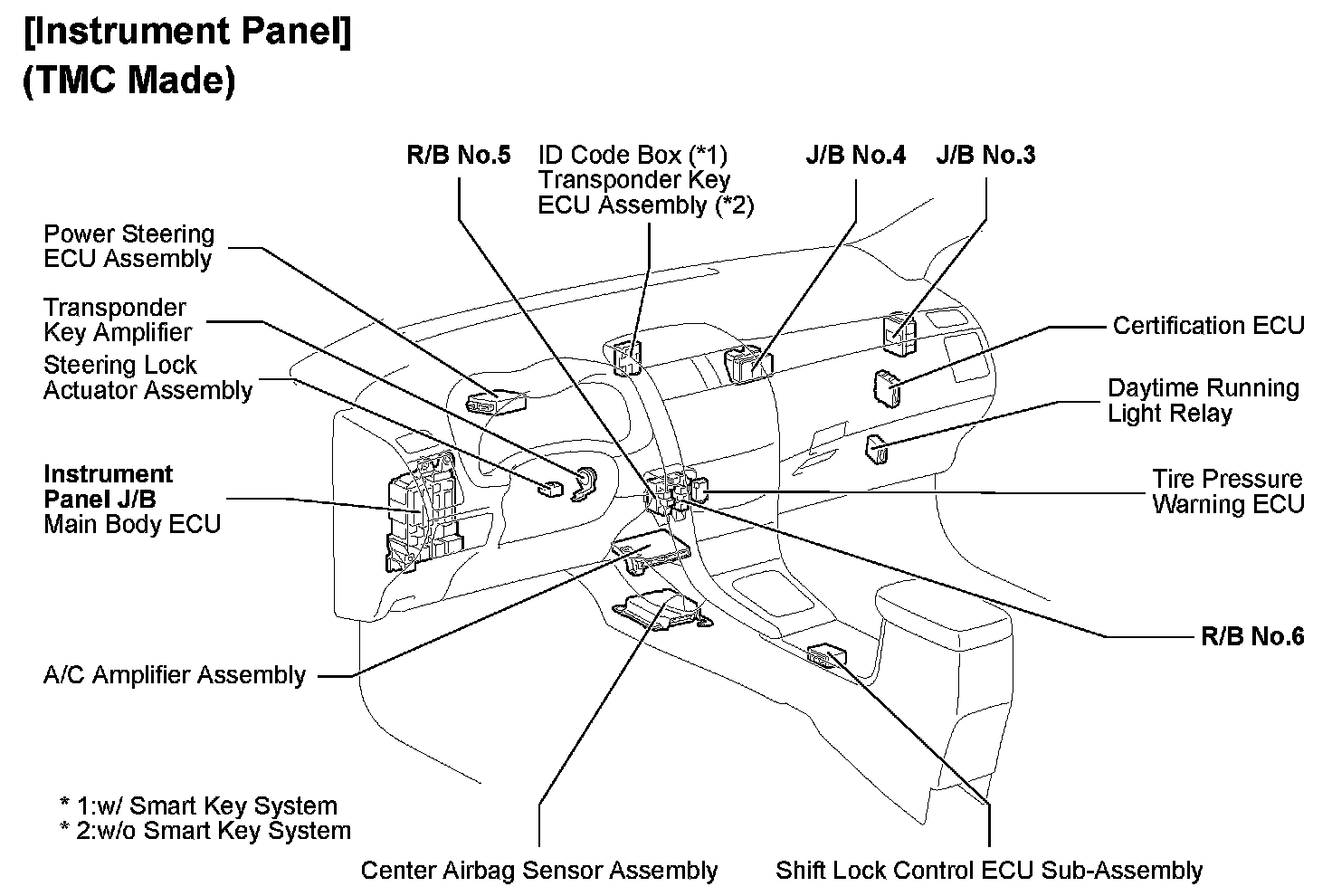

Instrument Panel [TMC Made]:

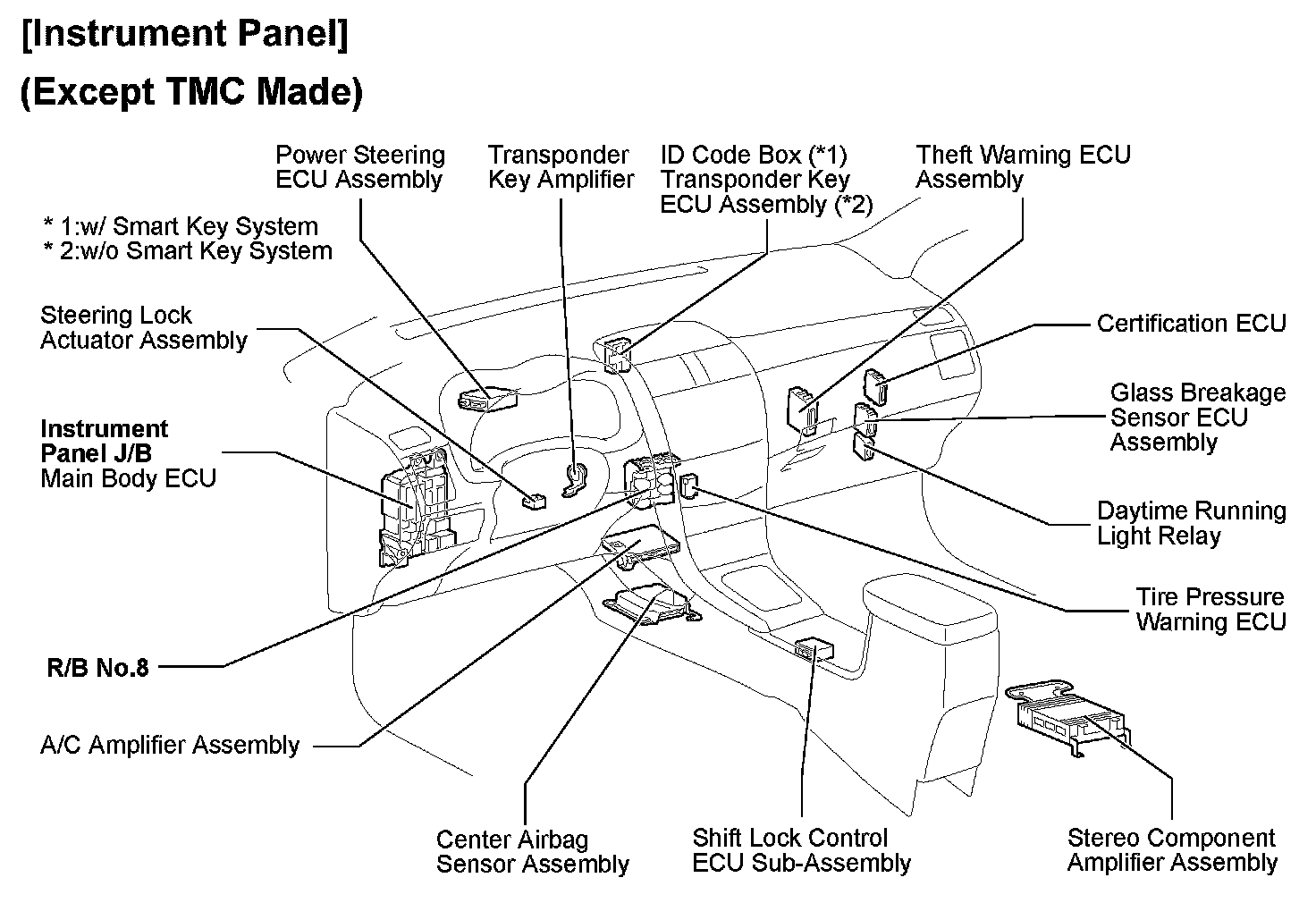

Instrument Panel [Except TMC Made]:
