Pinout Values and Diagnostic Parameters





SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: TERMINALS OF ECU

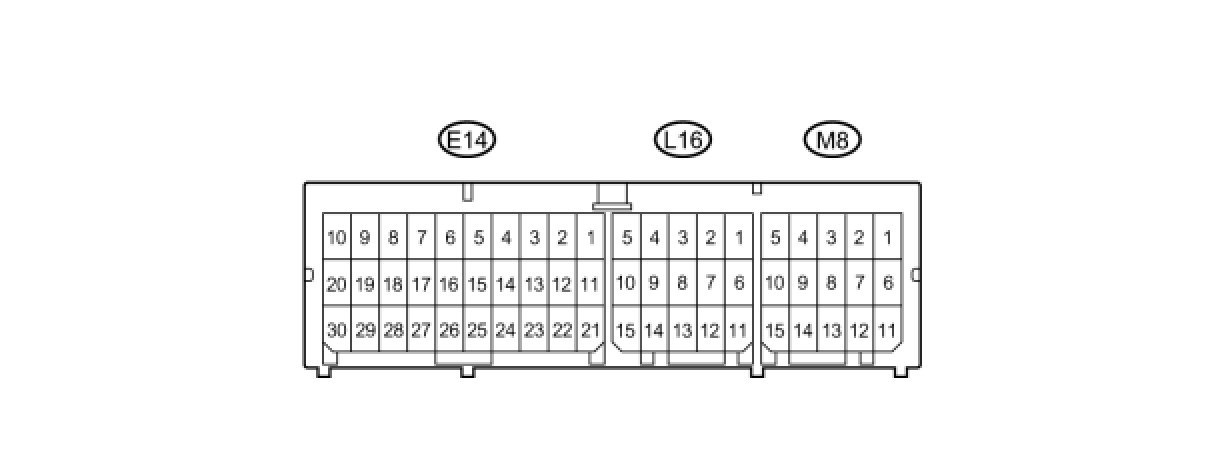

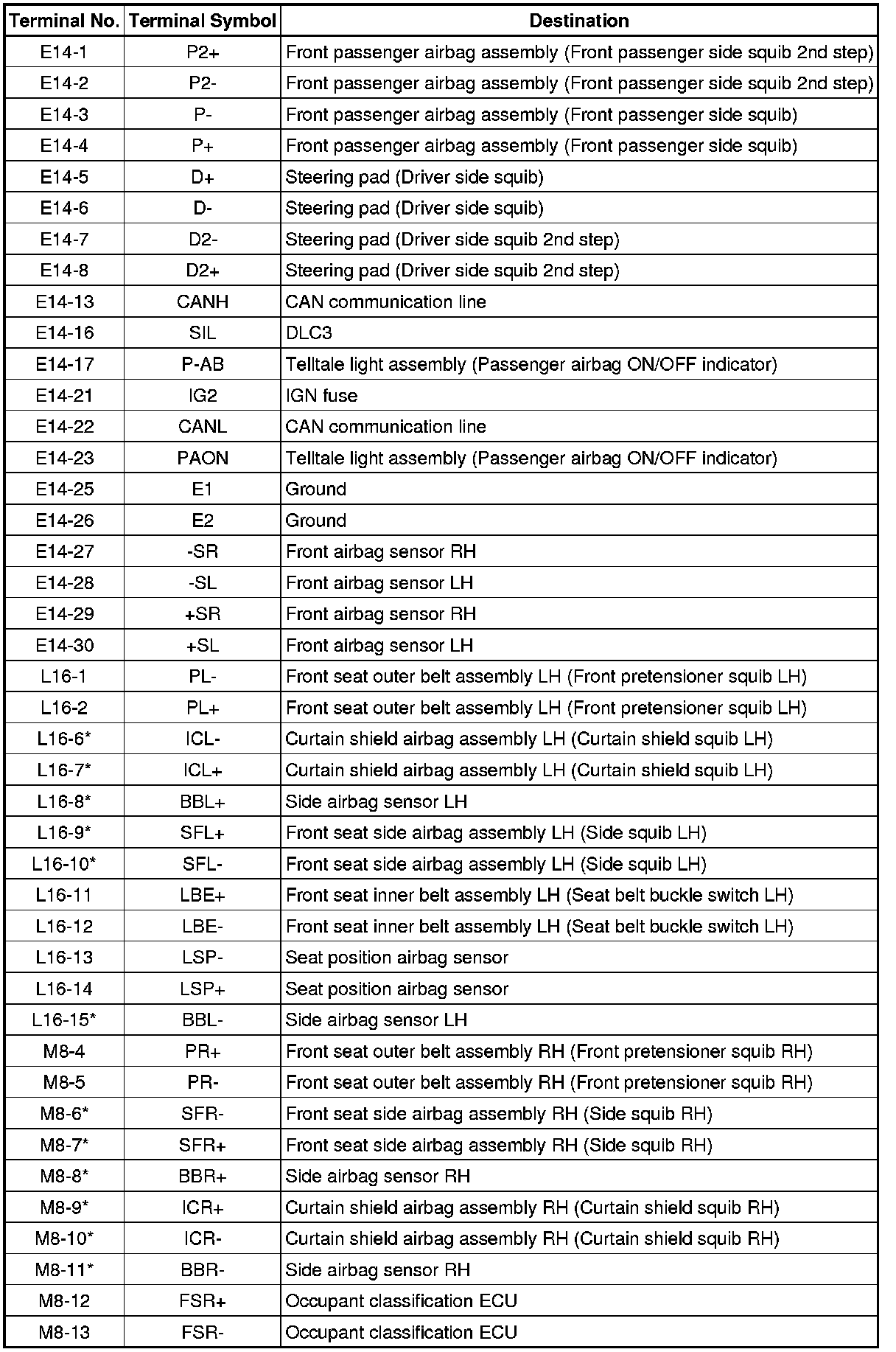

1. CENTER AIRBAG SENSOR ASSEMBLY









HINT
*: w/ Front seat side airbags and curtain shield airbags
