Pinout Values and Diagnostic Parameters

SEAT BELT: SEAT BELT WARNING SYSTEM: TERMINALS OF ECU

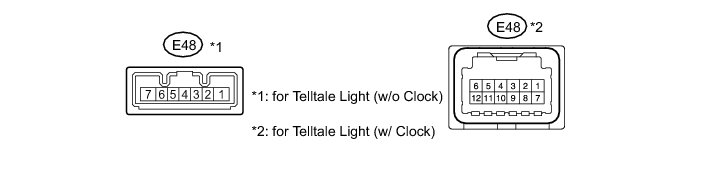

1. TELLTALE LIGHT ASSEMBLY

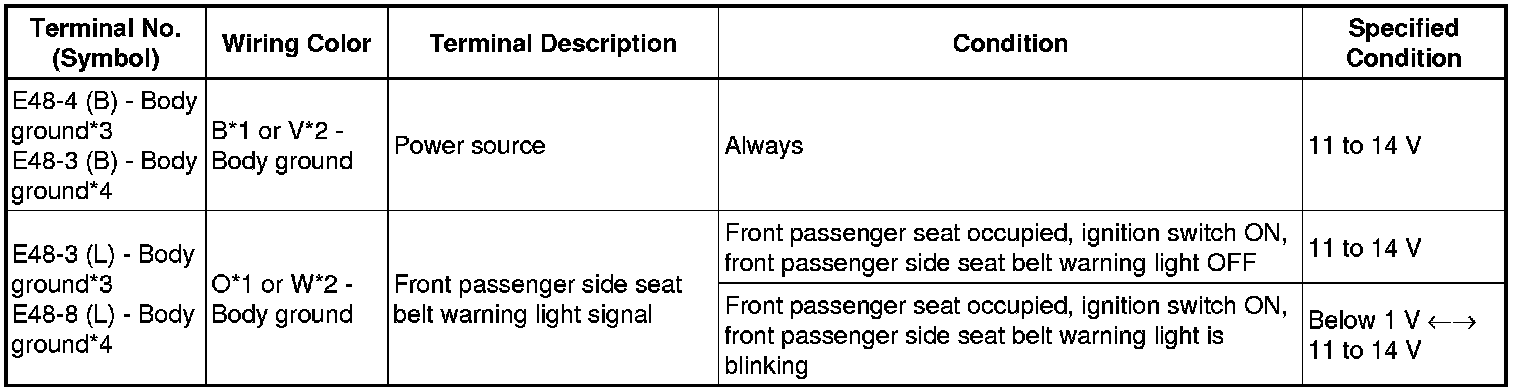

Standard Voltage:





* *1: for TMC Made

* *2: except for TMC Made

* *3: for Telltale Light (w/o Clock)

* *4: for Telltale Light (w/ Clock)
